4. Follow Steps 2 to 6 in "Loading Paper into Tray 1".
• To reinsert the extender, you might have to push it with moderate force.
• The remaining paper indicator on the left front side of the paper tray shows approximately how
much paper is remaining.

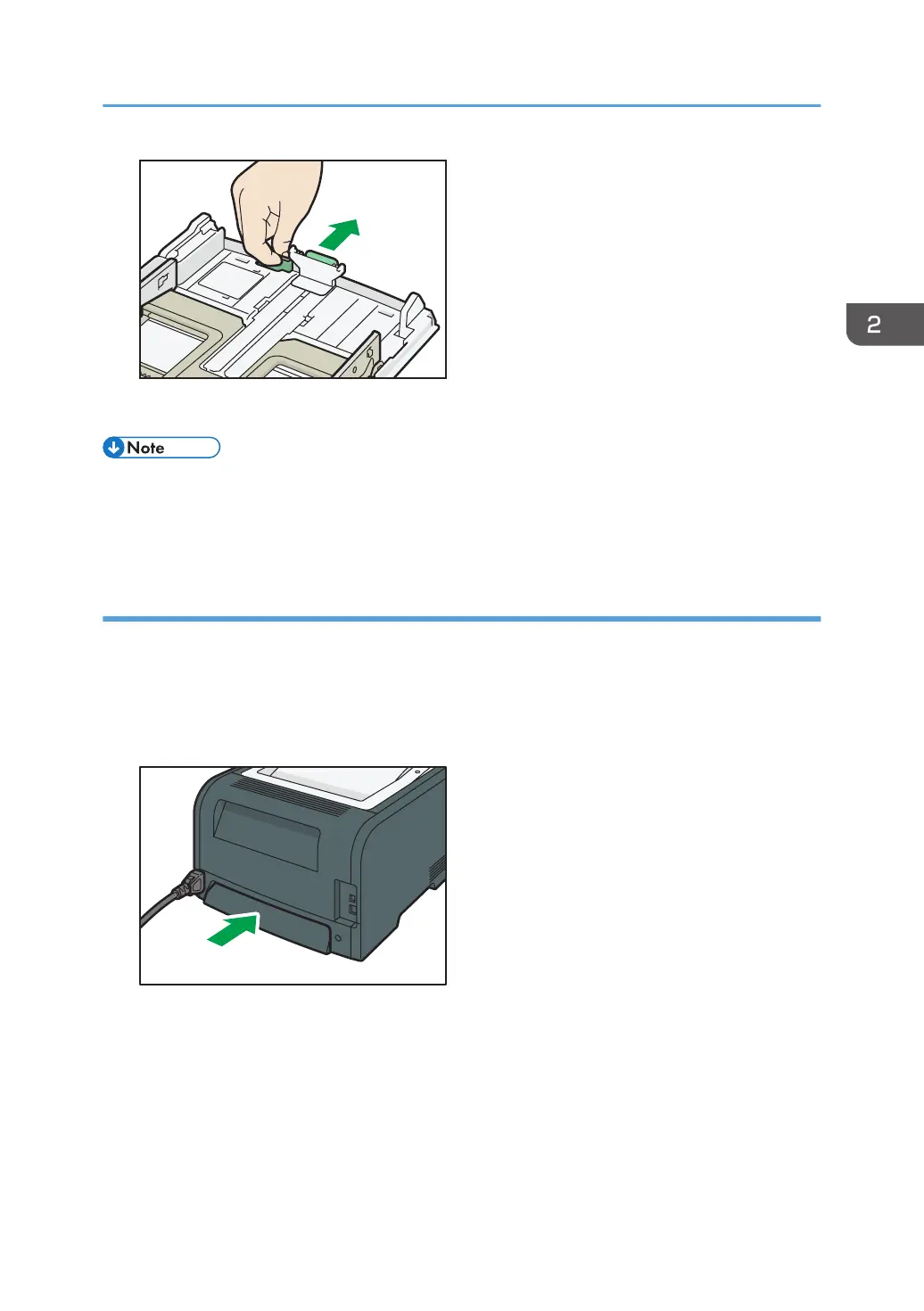

Extending the Tray 1 to load paper (When using SP 320DN)
This section explains how to load paper longer than A4 (297 mm) into the machine.
1. Pull out tray 1 carefully with both hands.
Place the tray on a flat surface.
2. Remove the tray 1 rear cover by pushing its center.
3. Release the extender locks on both sides of the tray, and then pull out the extender until it
clicks.
Make sure the extender's inner surface and the scale are aligned.
Loading Paper
23
