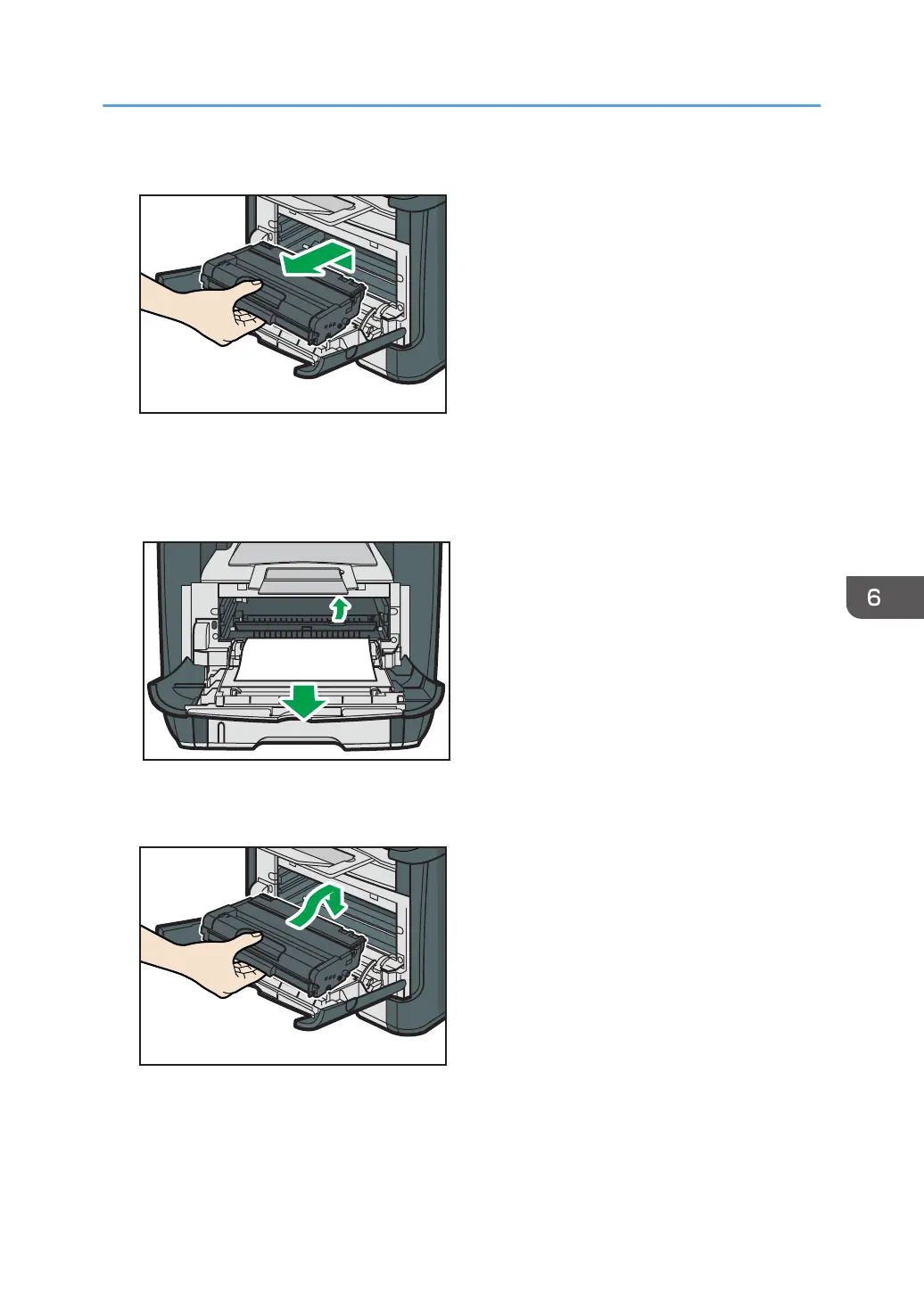

6. Carefully pull out the print cartridge horizontally, holding its center.
• Do not shake the removed print cartridge. Doing so can cause remaining toner to leak.
•
Place the print cartridge on paper or similar material to avoid dirtying your workspace.
7. Lifting the guide plate, remove the jammed paper carefully.
8. Slide the print cartridge in horizontally. When the cartridge can go no further, raise it
slightly and push it fully in. Then push down on the cartridge until it clicks into place.
9. Using both hands, carefully push up the front cover until it closes.
Paper Feed Problems
77
