Ricoh SP 3600dn - Guide to Components and Control Panel

Guide to Names and Functions of Components
Guide to Components
• Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal
components.

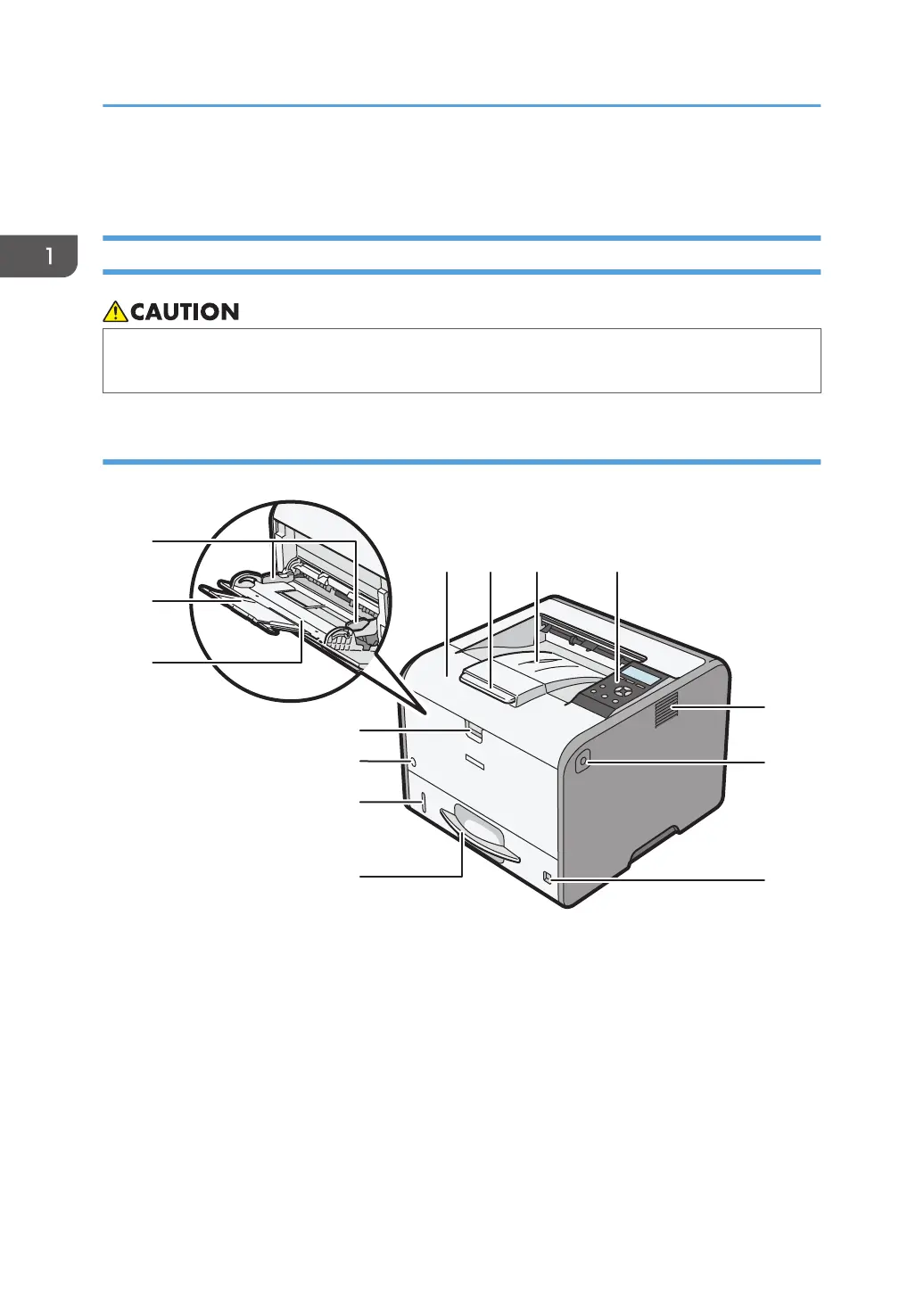

Exterior: Front view
2 3
4
1
5
6
7
11
10
9
8
14
12
13
CZF044
1. Front cover
Open to access the inside of the printer and remove jammed paper.
Open here to replace the print cartridge and the drum unit.
2. Tray Extension
Pull this fence to prevent paper from falling off.
3. Standard tray
Output is stacked here with the print side down.
4. Control panel
For details, see page 14 "Guide to the Names and Functions of the Control Panel".
