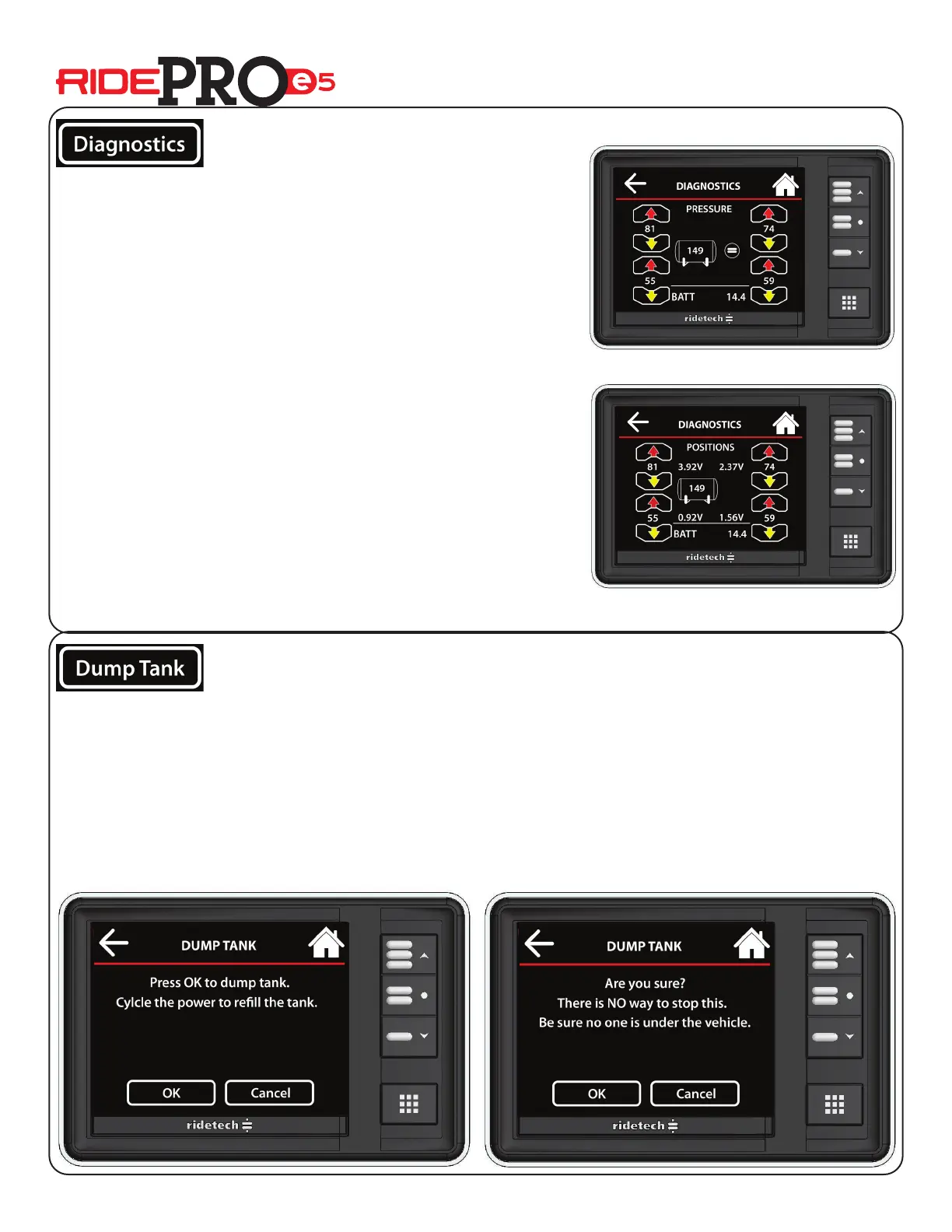

The Menu Dump Tank screen provides a simple and easy way to completely drain an air storage tank for servicing or storage.
The Dump Tank feature requires a 2 step verication for safety. You will have to “OK” the choice 2 times for the system to dump the
air tank. This is a safety feature to prevent the air tank from being dumped accidentally.
When the OK button is pressed all valves are opened, which exhausts the air from the tank to atmosphere. The compressors are
disabled so the tank is not lled during this procedure.
The valves will remain open until tank pressure reaches 0 psi.
The compressors will remain disabled until the ignition is turned o then back on.
Dump Tank has a secondary screen to verify you want to dump the tank.
Control Panel Users Guide
The Menu Diagnostics screen can be used to diagnose problems/issues,
specically with the level sensor positioning during installation and/or the
vehicle charging system.
Each corner can be manually inated and deated via the buttons surrounding
the read out screen.
The readout screen displays the pressure and level sensor voltage (IF USING RIDE
HEIGHT SENSORS) of each corner as well as the battery voltage in real time.
The top image is RidePRO E5 without ride height sensors.
The bottom image is RidePRO E5 with ride height sensors. If you have ride
height senors, it will display the voltage output of the level sensors. The range of
the level sensors is 0.5 - 4.5 volts.
- CONTROL PANEL & MOBILE APP
To Next Page
