PAGE 22

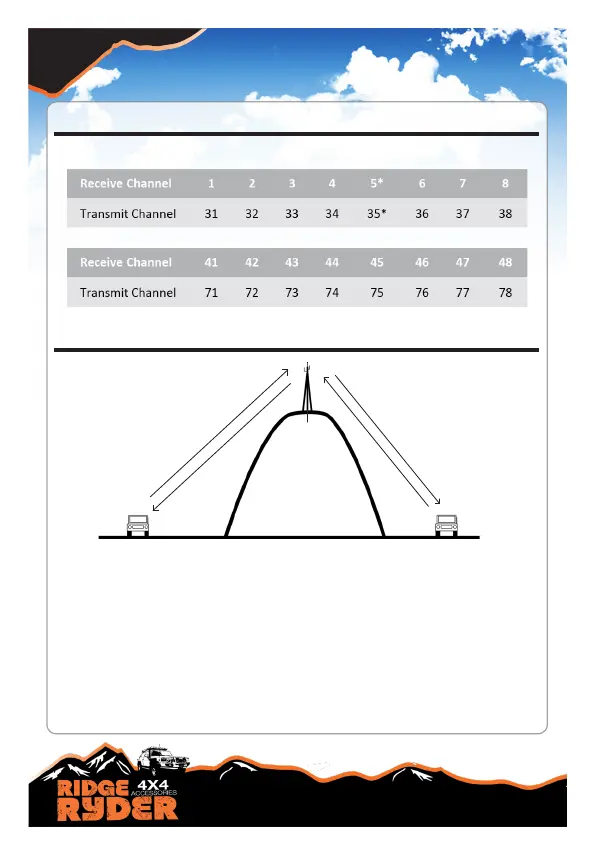

DUPLEX RECEIVE/TRANSMIT CHANNEL GUIDE
The following table displays the receive and transmit channels when using repeater stations:
*Channel 5/35 is emergency channel only
VISUAL REPRESENTATION OF DUPLEX
REPEATER
CHANNEL 2 / 32
OBSTRUCTION (HILL / MOUNTAIN)
VEHICLE 1
RADIO IN DUPLEX MODE ON CHANNEL 2
TRANSMISSION FROM VEHICLE 1 (CHANNEL 32)
TRANSMISSION FROM VEHICLE 1 (CHANNEL 2)
TRANSMISSION FROM VEHICLE 2 (CHANNEL 32)
TRANSMISSION FROM VEHICLE 2 (CHANNEL 2)
VEHICLE 2
RADIO IN DUPLEX MODE ON CHANNEL 2
