Assembly (continued)

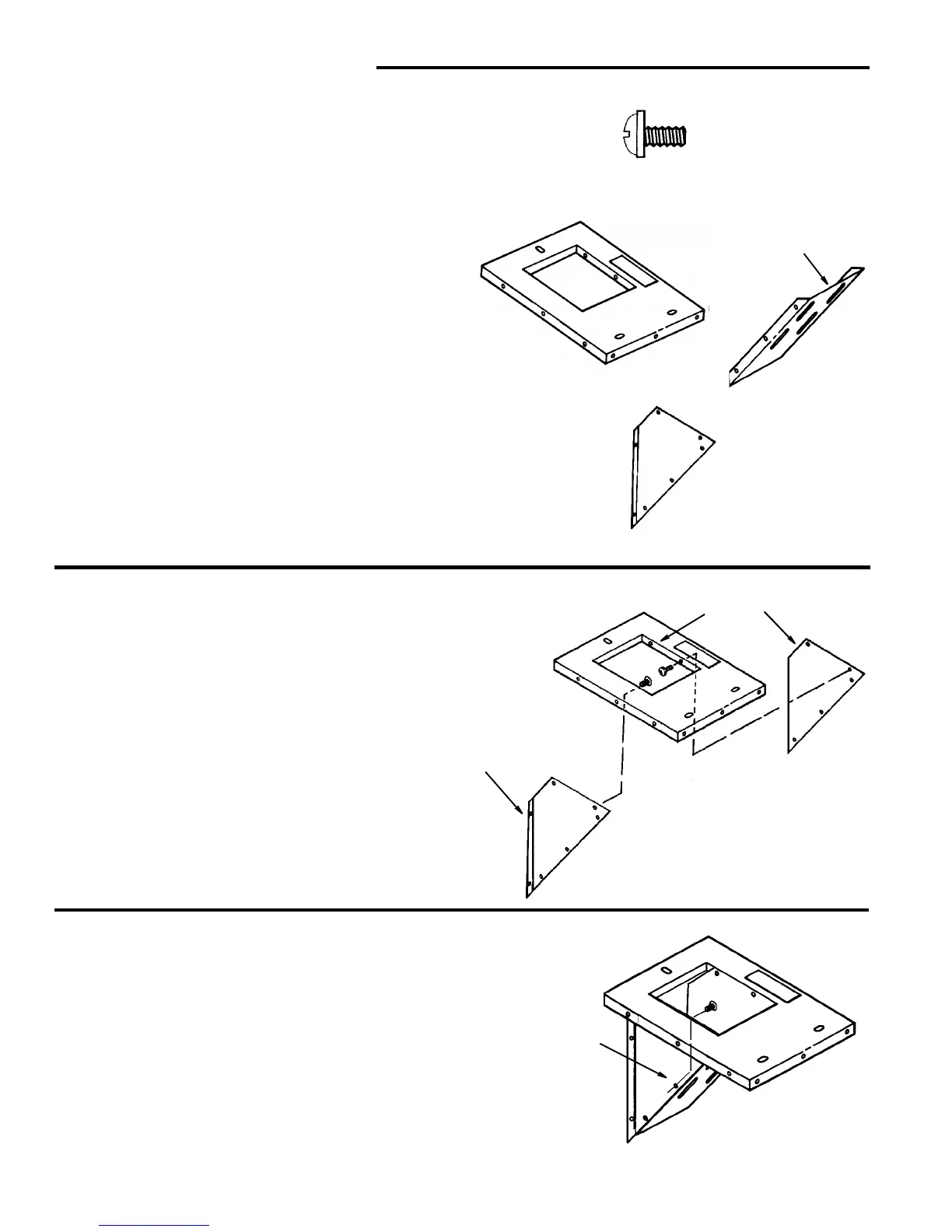

Assembling Cabinet Top/Motor Mount Assembly
1. From among the loose parts, find the following:
10 Machine Screw w/Washer Head
1Cabinet Top
1 Motor Mount Plate
2 Motor Mount Side
2. Attach the motor mount sides to the cabinet top as
shown.
3. Attach the motor mount plate to the motor mount sides
and cabinet top.
Cabinet Top
Motor Mount
Plate
Motor Mount
Side
Machine Screw w/Washer Head
3/16-24 x 3/8
“TOP”
Flange to
outside
Motor Mount Side is
Inside Cabinet Top
Motor Mount
Side on Outside
of Mount Plate
~
To Next Page
