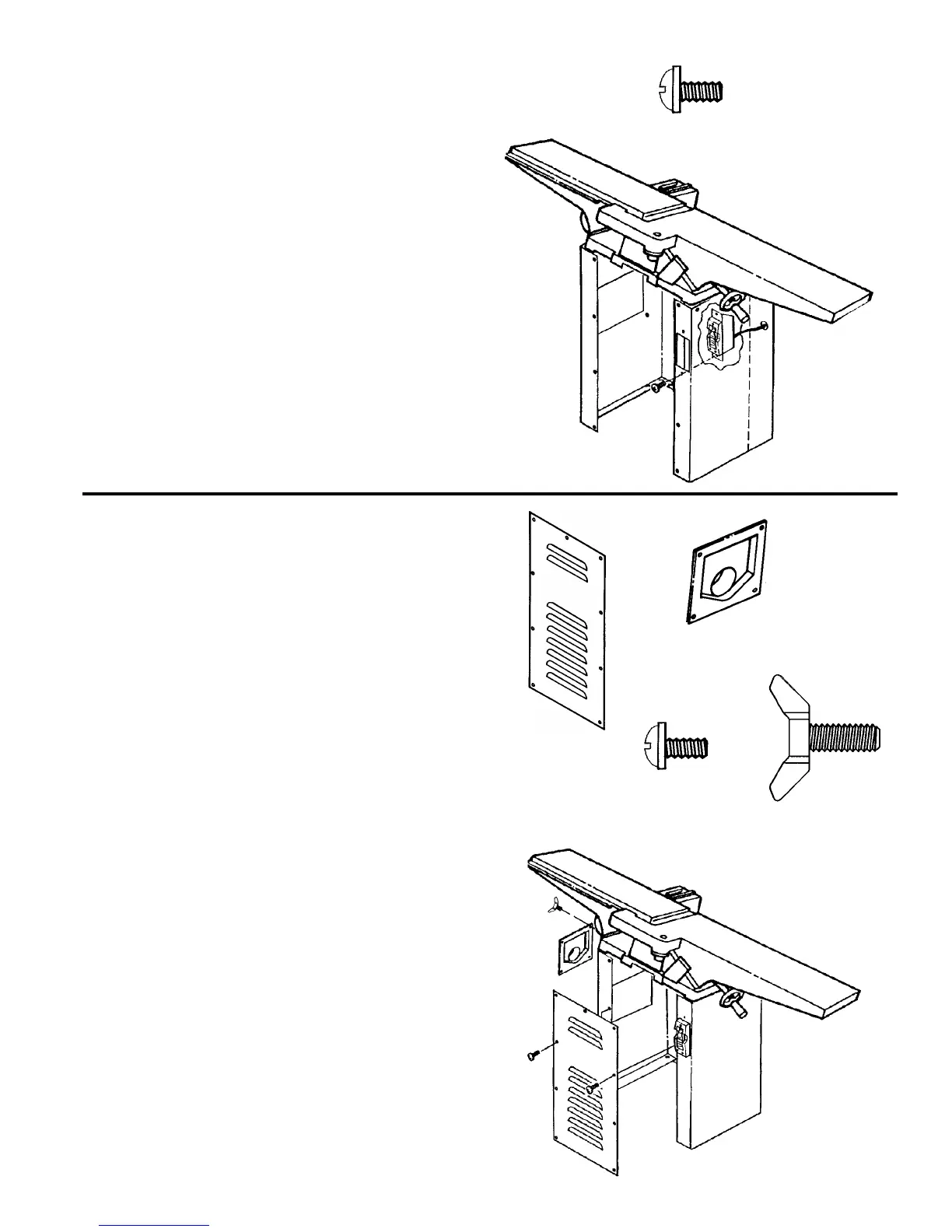

Mounting On-Off Switch
1. Locate the following:
2 Machine Screws w/Washer Head
2. Position the switch assembly from the inside of the
cabinet front as shown.
3. Secure with machine screws.
4. Route the cord through the bushing provided in the
rear flange of the right cabinet side.
Attach Front of Cabinet and Sawdust Chute
1. Locate the following:
1 Cabinet Front
1 Sawdust Chute
9 Machine Screws with Washer Heads
4 Wing Screw 1/4-20 x 5/8
2. Position the cabinet front as shown.
3. Secure with screws.
4. Fasten sawdust chute over square hole in left side cab-
inet panel with 1/4-20 x 5/8 wing screws.
NOTE: If not using dust collection system do not attach
dust chute.
Machine Screw
w/Washer Head
Cabinet Front
Machine Screw
w/Washer Head
Sawdust Chute
Screw Wing
1/4-20 x 5/8
