Assemble Motor To Cabinet Top

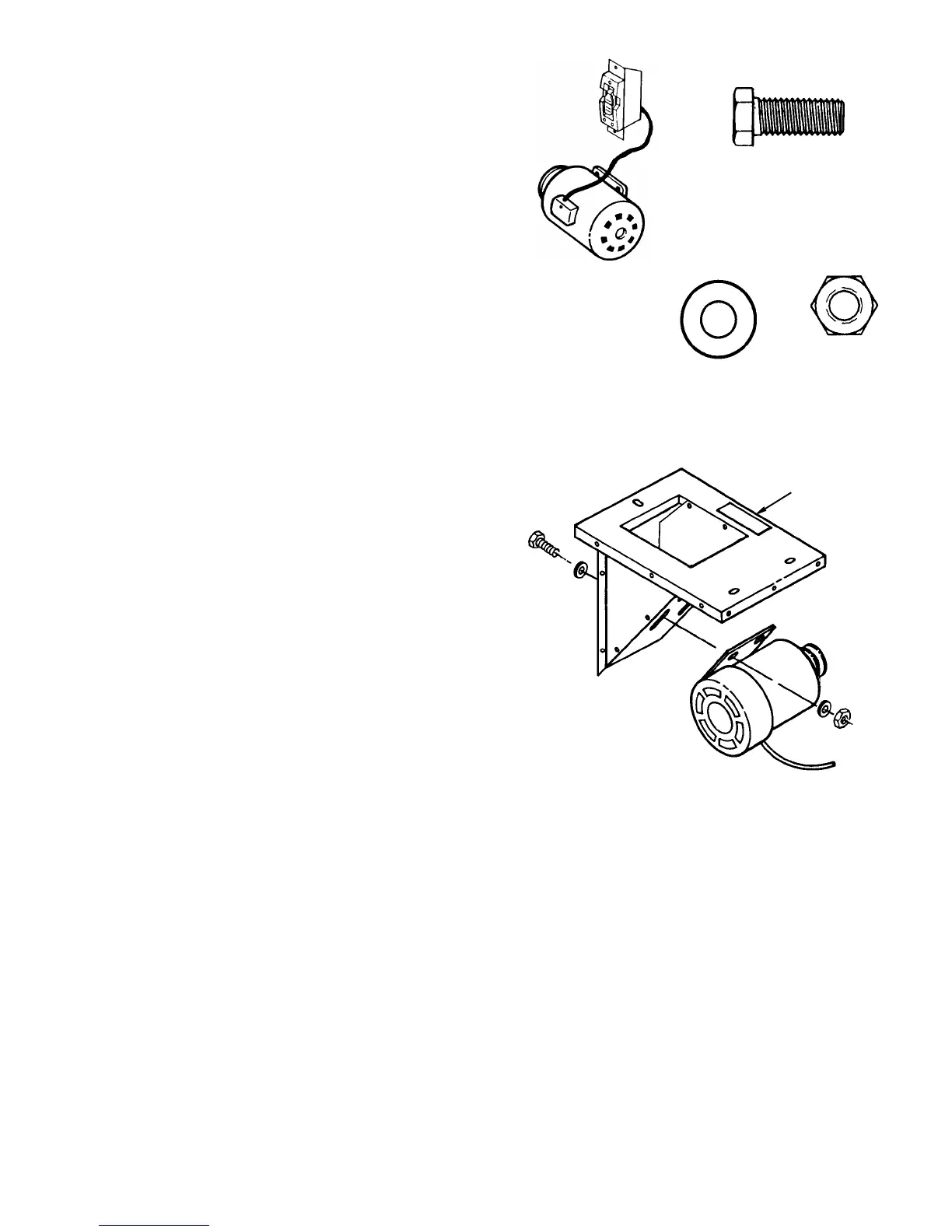

1. From among the loose parts, find the following:
1 Motor Assembly w/Switch
4 Hex Bolt 5/16-18 x 3/4
8 Flat Washers 5/16
4 Hex Nuts 5/16-18
2. Position the motor on the motor mount plate as shown.
3. Secure the motor with the hex head bolts as shown.
Finger tighten nuts.
5/16-18 x 3/4"
Hex Bolt
5/16-18
Hex Nut
5/16
Washer
Motor Assembly
with Switch
Cabinet Top
