Repair Parts

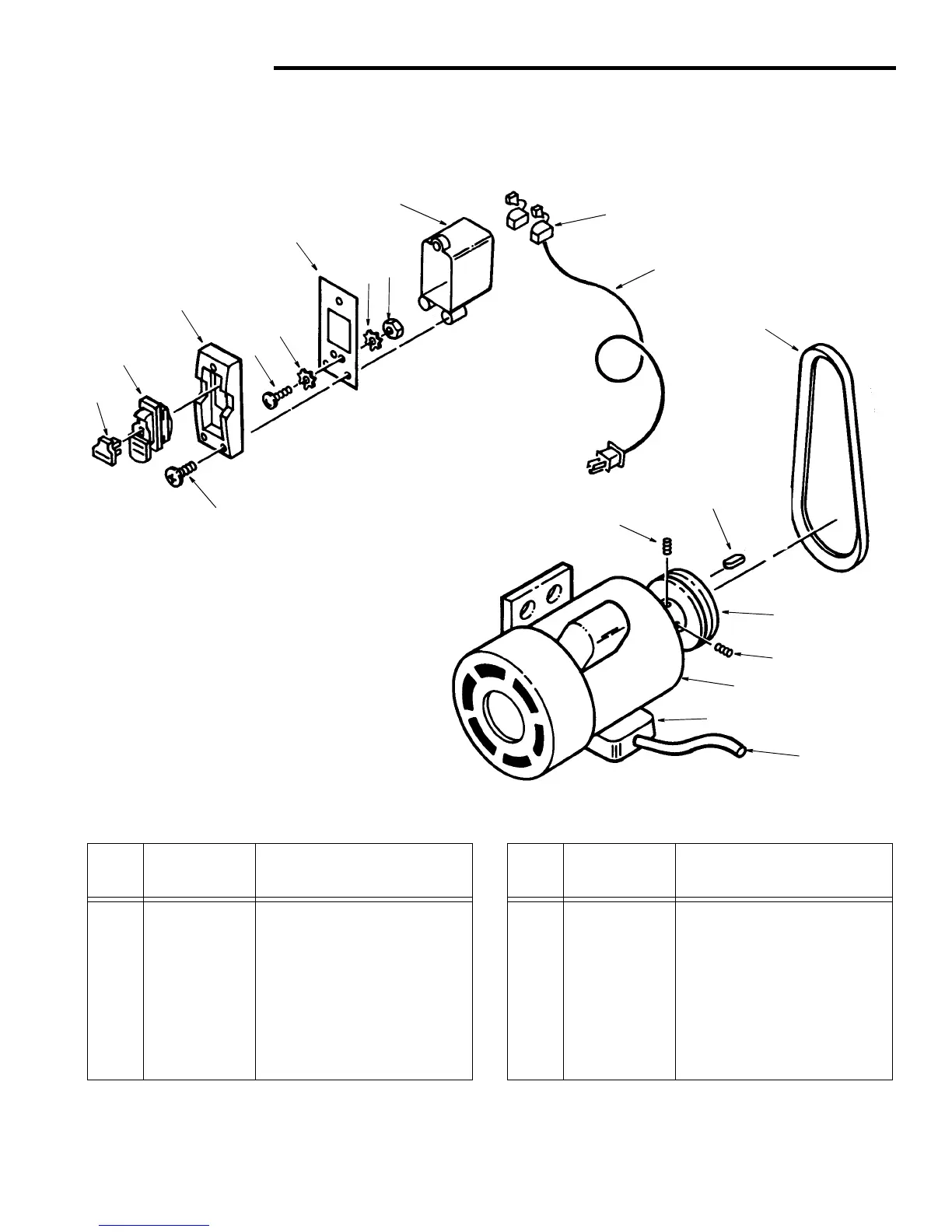

Parts List for RIDGID 6-1/8" Jointer/Planer
Model No. JP06000
RIDGID parts are available on-line at www.ridgidparts.com
Figure 5
Always order by Part Number - Not by Key Number
* Standard hardware item, may be purchased locally
13
14
15
16
17
18
1
2
3
4
5
6
7
12
6
8
9
10
11
15
Key
No.
Part No. Description
1
2
3
4
5
6
7
8
9
826122
826123
*
826395
*
*
826653
*
824914
Key Switch
Switch Locking
Screw Ty AB M4 x 1.6-18
Bezel Switch
Screw Pan Hd #8-32 x 3/8
Lockwasher #8
Plate Switch Bezel
Nut #8-32
Box Switch
Key
No.
Part No. Description
10
11
12
13
14
15
16
17
18
169123-15
824911-1
817393-7
818654-8
824931
*
826660
69164
824915-1
Strain Relief 6P3-4
Cord w/Plug
V-Belt A-36
Key
Pulley
Screw Set 1/4-20 x 3/8
Motor
Strain Relief 6N3-4
Cord Motor
