RIDGID SP6263 - Controls

37
Controls
Control Function Operation/ Comments
Bevel Lock Lever Frees motor to rotate; locks in any
desired position
Pulllevertoreleaseandpushtolock
Support motor before unlocking because it
can swing down quickly
Bevel index lever must be unindexed before
moving motor
Miter/Arm Lock
Lever
Frees radial arm to move; locks in
any desired position; pre-set
indexed positions at 0°, 45°L,
45°R
Pull lever forward to release index
then swing arm left or right Hold in
unlocked position while moving arm
Pushlevertoreartolockarm
On-Off Switch Turns motor on/off Pull on, push off
Requires yellow key
Yellow Key Allows saw to be switched on Insert into on-off switch
Remove after turning saw off
Bevel Index Lever Indexes the saw blade to 0°, 45°,
or 90° pre-set index positions then
release it
Move bevel index lever to the left
while positioning the blade, then
release it
Rip Scale & Rip
Indicators
Tells approximate distance
between blade and fence when
saw is in in-rip or out-rip position
Move blade carriage along arm to
align line on indicator with desired
number on scale

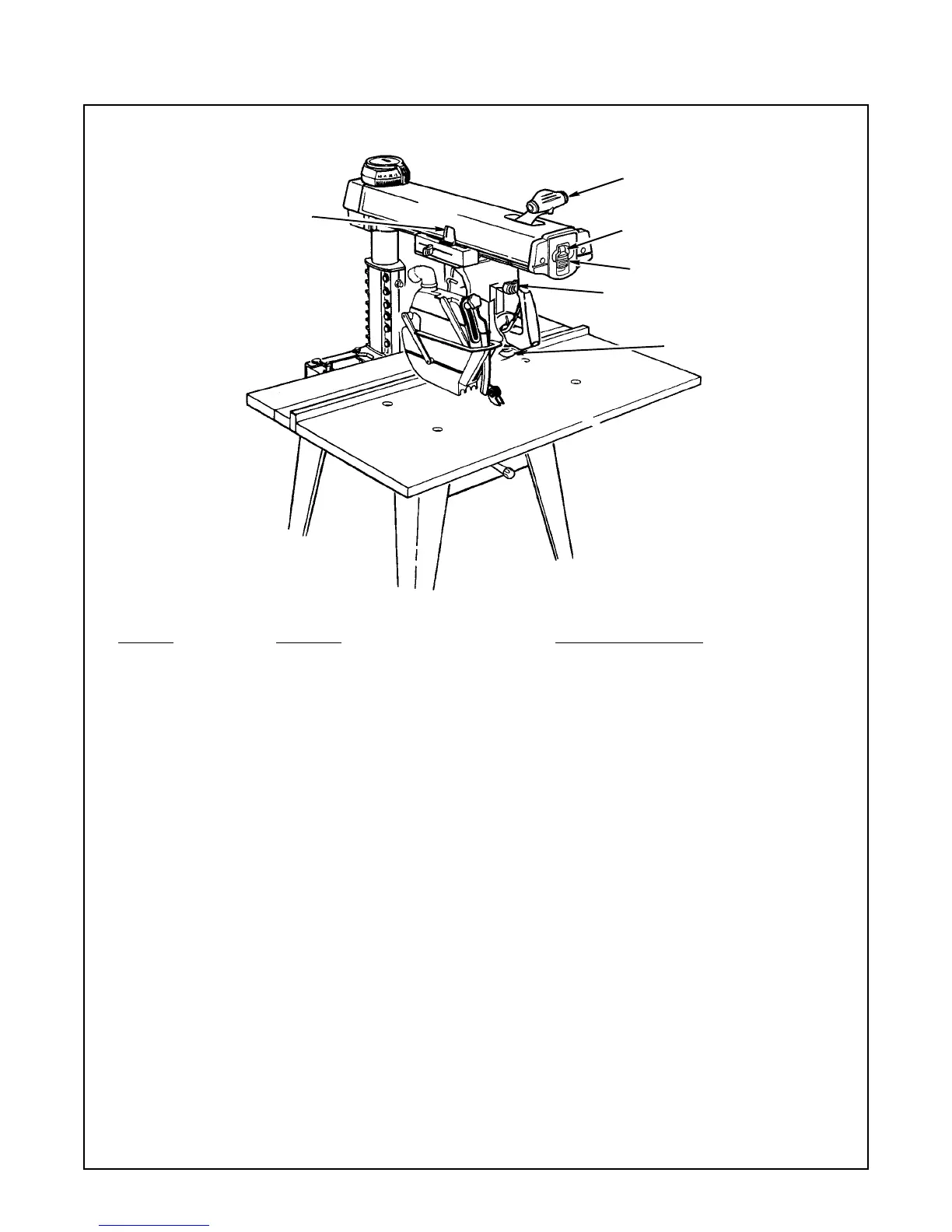

Bevel Index Lever
Miter/Arm Lock Lever
On-Off Switch
Yellow Key
Bevel Lock Lever
Rip Scale &
Rip Indicator
(Out-Rip)
