Repair Parts
PARTS LIST FOR RIDGID 10" RADIAL SAW
MODEL NUMBER RS10000

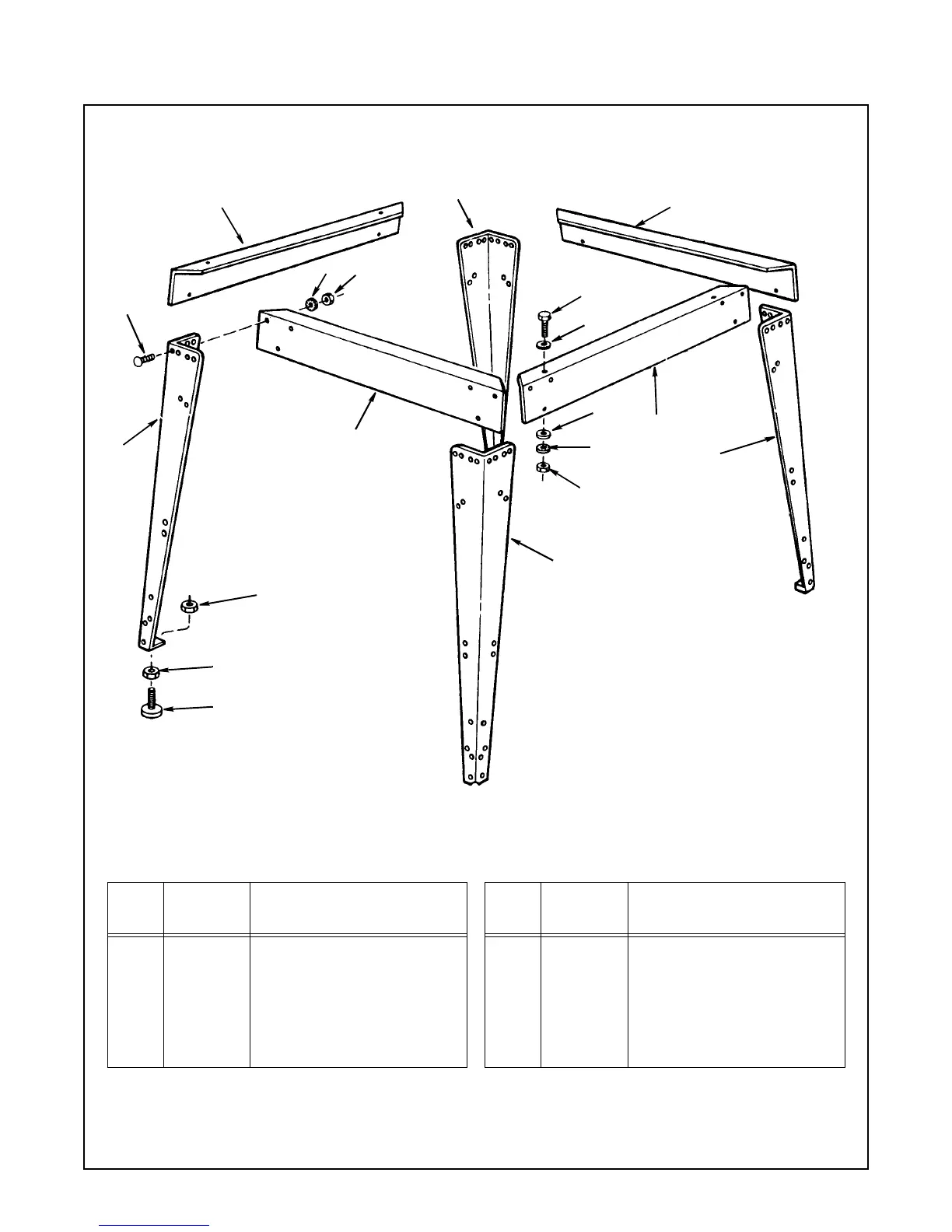

Figure 6 - Leg Set
Always order by Part Number - Not by Key Number
* Standard Hardware Item - May Be Purchased Locally
1
2
4
5
6
7
8
9
10
11
12
1
1
3
4
11
8
3
1
Key
No.
Part No. Description
1
2
3
4
5
6
7
821343-1
805589-5
821779-1
821780-1
114604
115120
805467-3
Leg
Screw, Truss Hd. 1/4-20 X 1/2
Stiffener, Side
Stiffener, Front/Rear
* Lockwasher, External 1/4
* Nut, Hex 1/4-20
Screw, Hex Hd 5/16-18 x 5/8
Key
No
Part No. Description
8
9
10
11
12
118774
131201
805482
118645
803835-3
* Washer,
11 /32 x 11 /16 x 1/16
* Lockwasher,
External 5/16
* Nut, Hex Jam 5/16-18
* Nut, Hex 3/8-16
Foot, Leveling
