Fence Facing
Select a piece of smooth straight wood
approximately 3/4 inch thick, and the
same length as the rip fence.
Attach it to the fence with the three square
head bolts, nuts and washers. (See
“Hardware for Attaching Wood Facing”) in
Repair Parts Figure 4. To remove the fac-
ing, loosen the hex nuts, slide the facing
toward the rear and out of the fence slot.
If the fence facing is for use with feather
boards, it will need to be about 8" tall. For
use with molding heads and dado blades
the width should be at least 3".

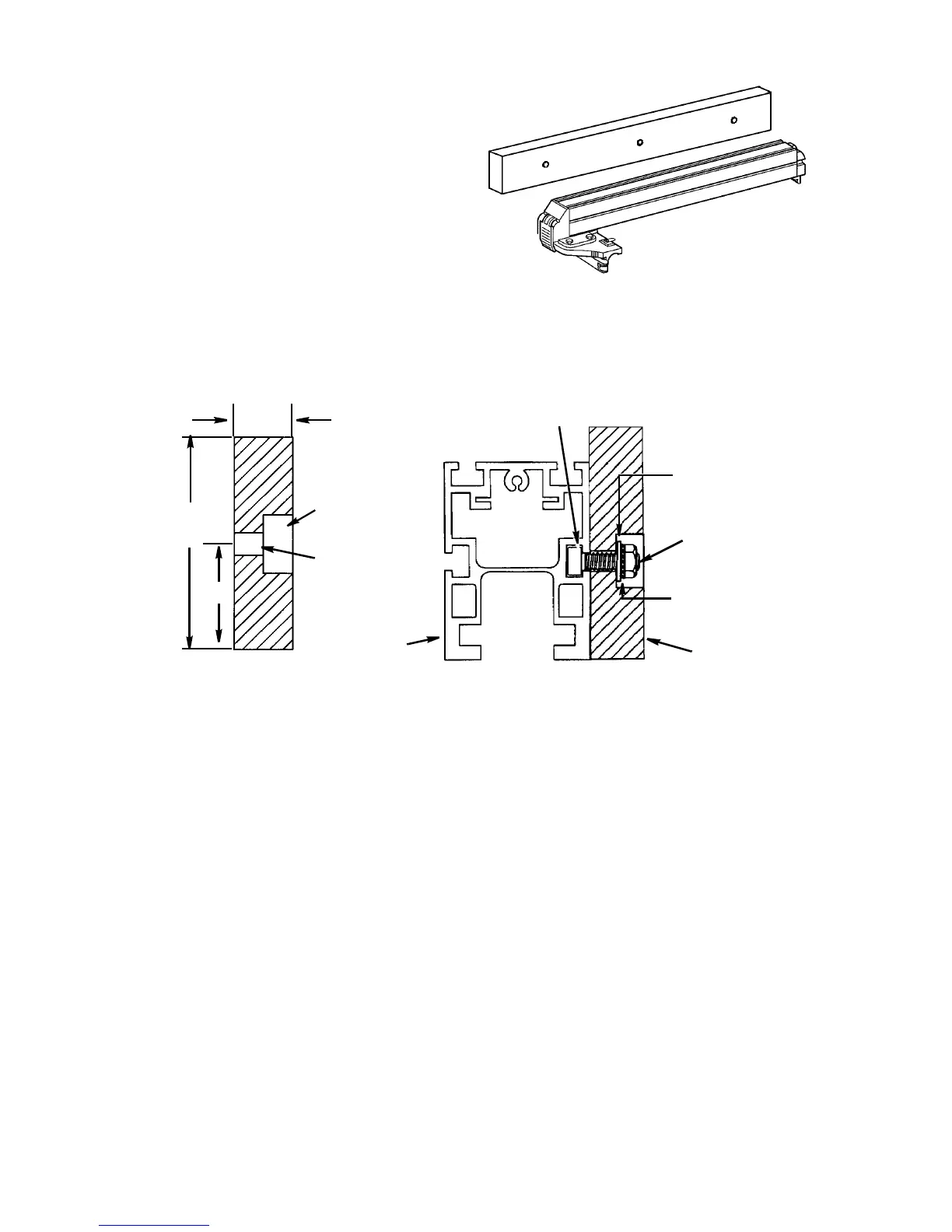

Flat
Washer
Lockwasher
Hex
Wood Facing
Fence
Nut
Square Head
Bolt
1-3/8
9/32
Diameter
Hole
Counterbore
3/4 Diameter
x 3/8 Deep
3"
Minimum
3/4"
