Introduction

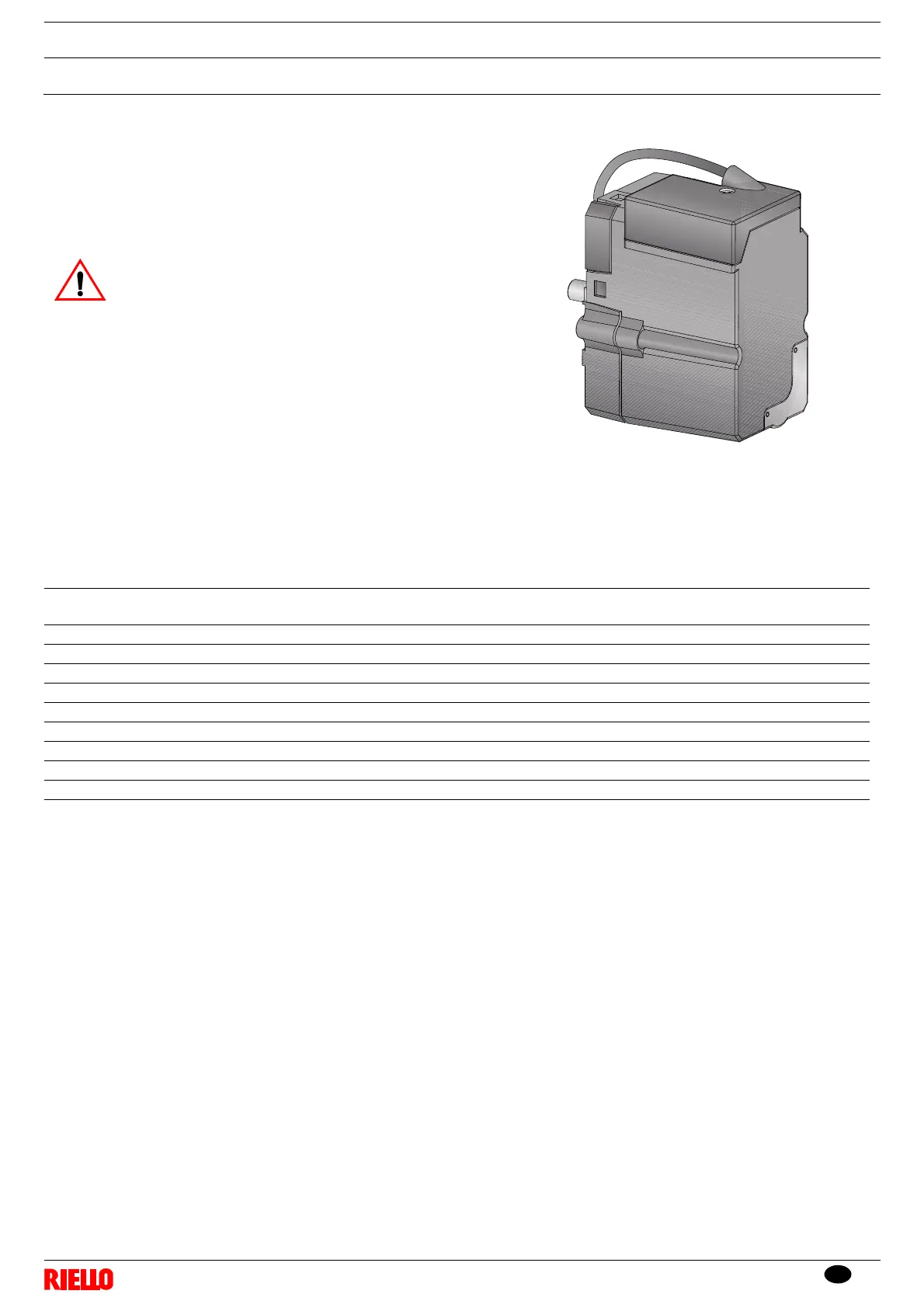

The servomotors that equip the burners of the RS range work directly on
the air damper and the gas butterfly valve, without mechanical lever-
ages but via the interposition of a coupling.
They are commanded by the control box, which constantly checks their
position by means of a return signal from the optic sensor inside the ser-
vomotor.
For this reason it is absolutely forbidden to remove
the cover of the servomotors.
The position (in degrees) of the servomotors can be seen on the display
of the operator panel. See Ch. 5.18, Parameter 922, index “0” for fuel
servomotor, index “1” for air servomotor.
The servomotors are electrically connected to the control box by means
of RAST 2.5 type connectors.
When servicing or replacing the servomotors, take care not to invert
the connectors. Follow the indications given in the electrical layouts or
the silkscreen printing on the control box cover.
