Riello RS 45/E BLU - Opening the Burner; Closing the Burner

42
GB
7.3 Opening the burner
 Disconnect the electrical supply from the burner.
 Loosen the screws 1) and remove the cover 2).
 Disconnect the plug 14) (Fig. 12) and loosen the grommet
15) (Fig. 12);
 Remove the screw 5) and split pin 9) and pull back the
burner on the guides 3) by about 100 mm. Disconnect the
cables of the probe and electrode, then pull the burner back
completely.
At this point it is possible to extract the inner part 7) after having
removed the screw 8).
7.4 Closing the burner
 Remove the split pin 9) and push the burner until it is approx.
100 mm from the pipe coupling.
 Reinsert the cables and slide the burner as far as the stop;
 Connect the plug of the servomotor 14) (Fig. 12) and tighten
the grommet 15) (Fig. 12);
 Replace the screws 5) and split pin 9) and carefully pull the
probe and electrode cables outwards until they are slightly
taut.
Maintenance
7
1
2
5
6
9
7
8

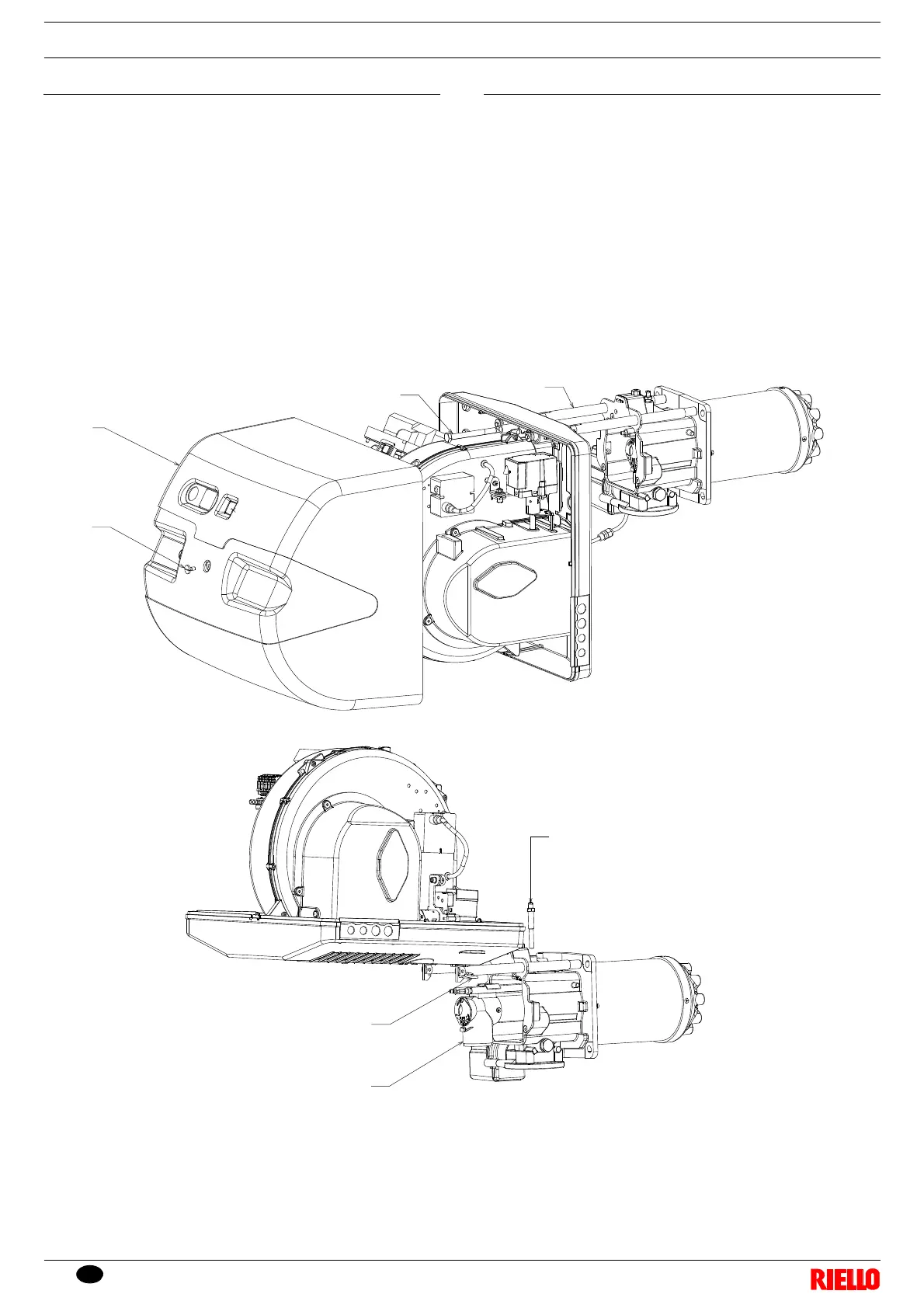

Fig. 35
D8053
