Installation

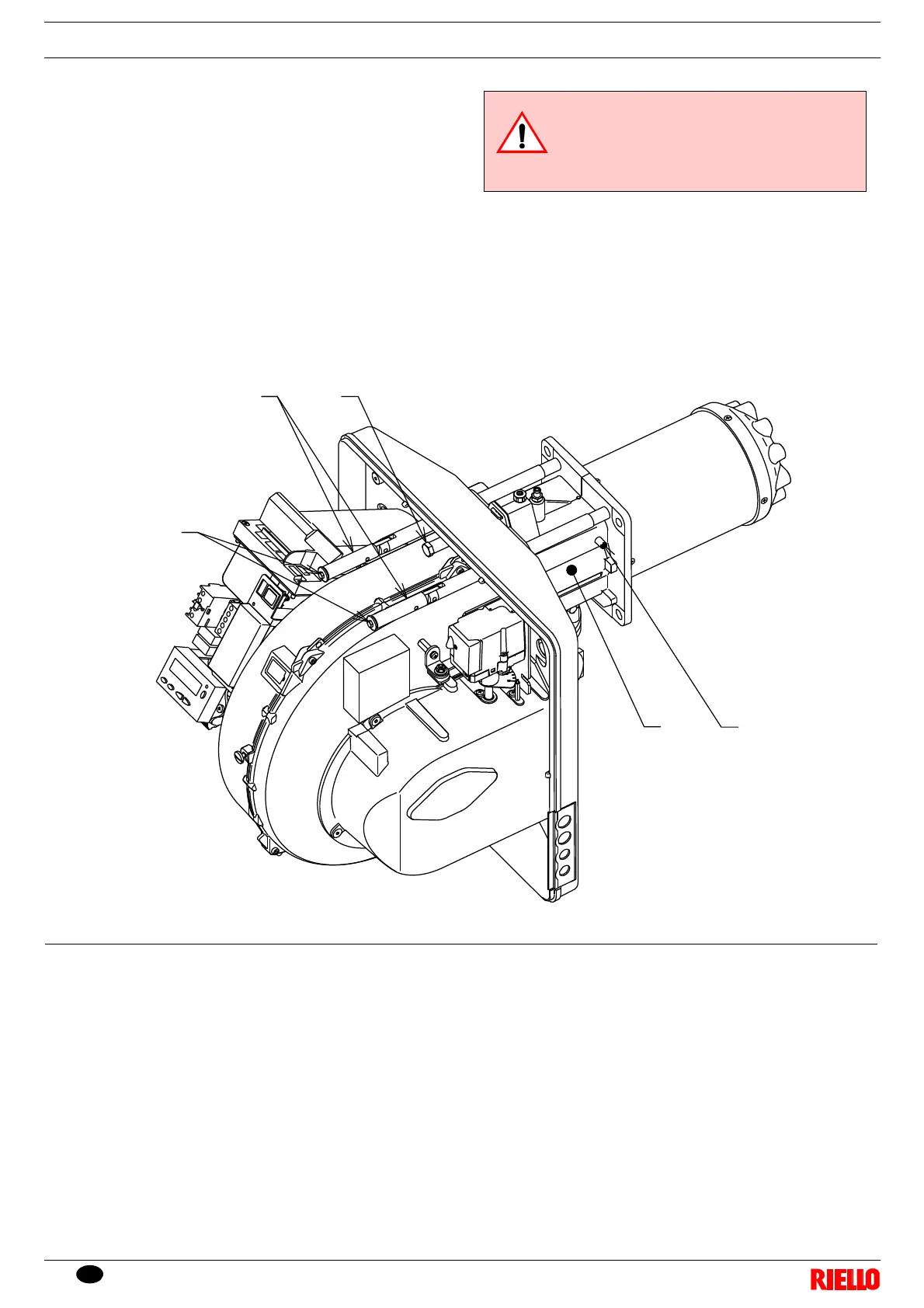

Once the combustion head adjustment is completed:
reassemble the burner on the guides 3) at about 100 mm
from the pipe coupling 4) - burner in the position shown in
Fig. 12;
insert the probe and electrode cables, then slide the burner
as far as the pipe coupling - burner in the position shown in
Fig. 17;
connect the plug of the servomotor 14) (Fig. 12) and tighten
the grommet 15) (Fig. 12);
refit the screws 2) and the split pin on the guides 3);
fix the burner to the pipe coupling with the screw 1).
When fitting the burner on the two guides, it is
advisable to gently draw out the high voltage
cable and flame detection probe cable until they
are slightly taut.
