TOWER VERSION WITH BATTERY BOX
BEFORE CARRING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT:
• THE UPS IS COMPLETELY SWITCHED OFF AND NOT CONNECTED TO THE MAINS POWER
SUPPLY OR TO ANY LOAD.
• THE BATTERY BOX IS DISCONNECTED FROM THE UPS, FROM ANY OTHER BATTERY BOXES
AND WITH THE BATTERY ISOLATOR OPEN

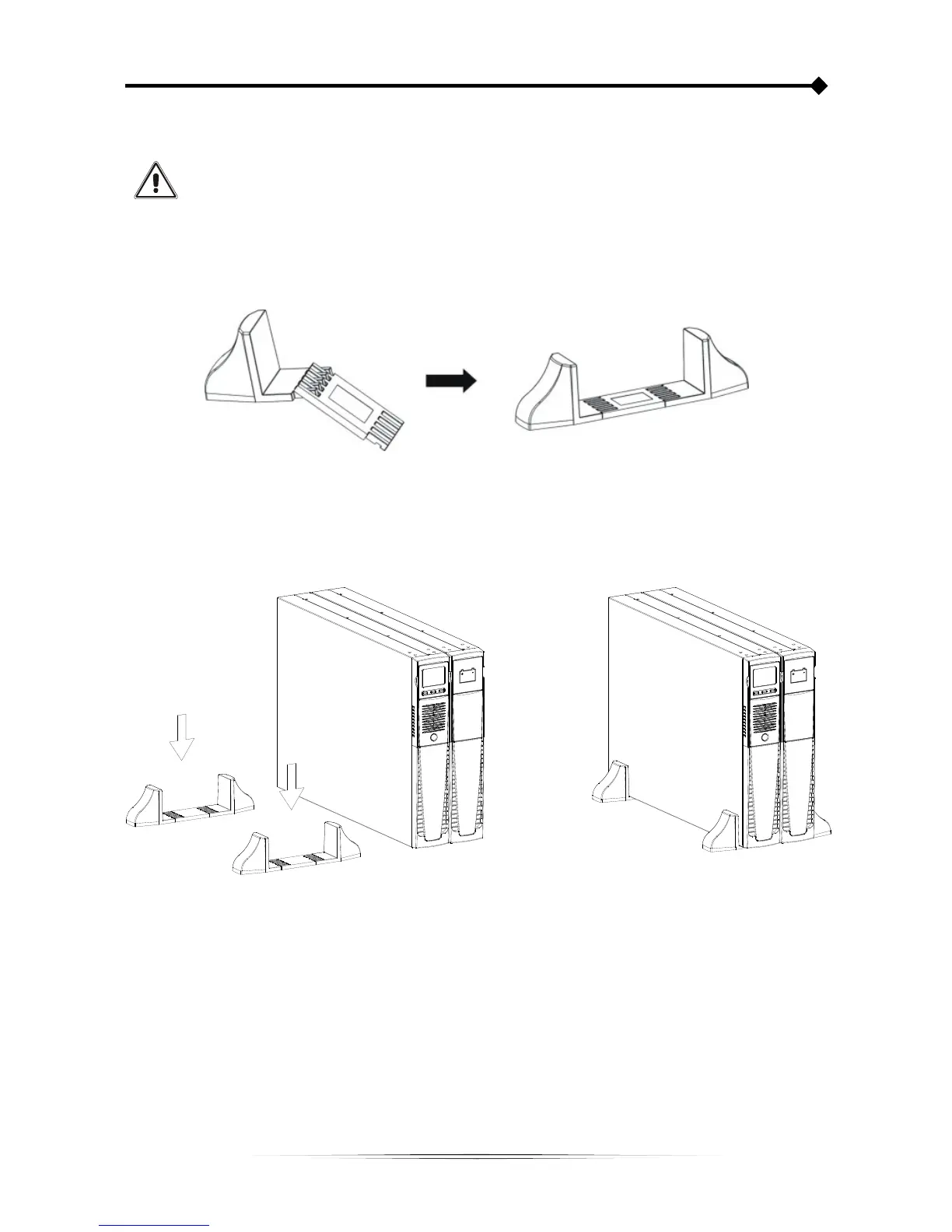

For the battery box version each foot is composed of three parts: two supports and an extension. Assemble two
feet as indicated in the figure below.
Slide the UPS and the battery box into the two supports
For any additional battery boxes repeat the sequence of operations shown above.
