User’s manual

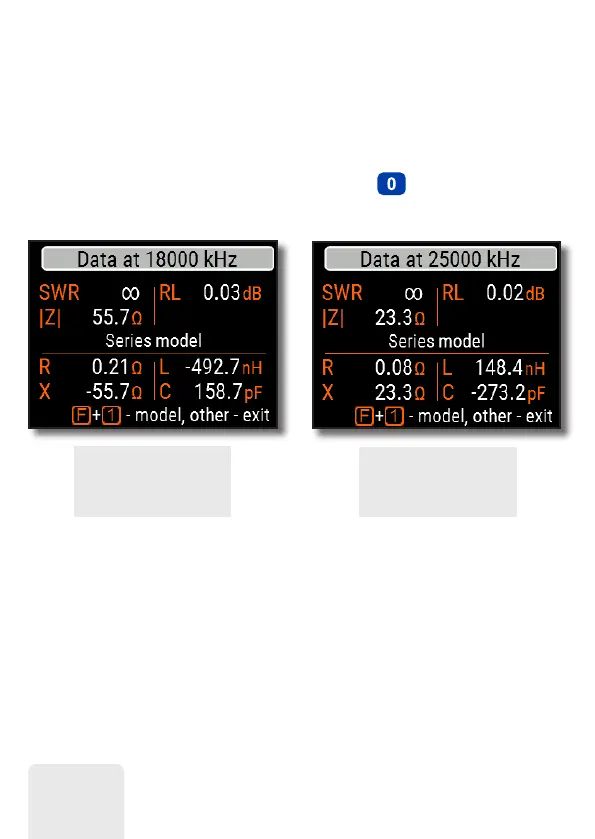

3. Switch to the Data at cursor screen by pressing the
key and read the value of
capacitance or inductance.
Example 1:
Unknown capacitor
Example 2:
Unknown inductor
2. By using left and right arrow keys, scroll to the frequency where X is -25…-100 Ohm
for capacitors or 25…100 Ohm for inductors. Change the scanning range and perform
additional scans, if needed.
Transformers
RigExpert analyzers can also be used for checking RF transformers. Connect a 50 Ohm
resistor to the secondary coil (for 1:1 transformers) and use SWR chart, R,X chart or
Smith chart modes to check the frequency response of the transformer. Similarly, use
resistors with other values for non-1:1 transformers.
22
