Chapter 1 Disassembly and Assembly RIGOL

DG1000 Service Guide

1-3

Disassemble the Handle

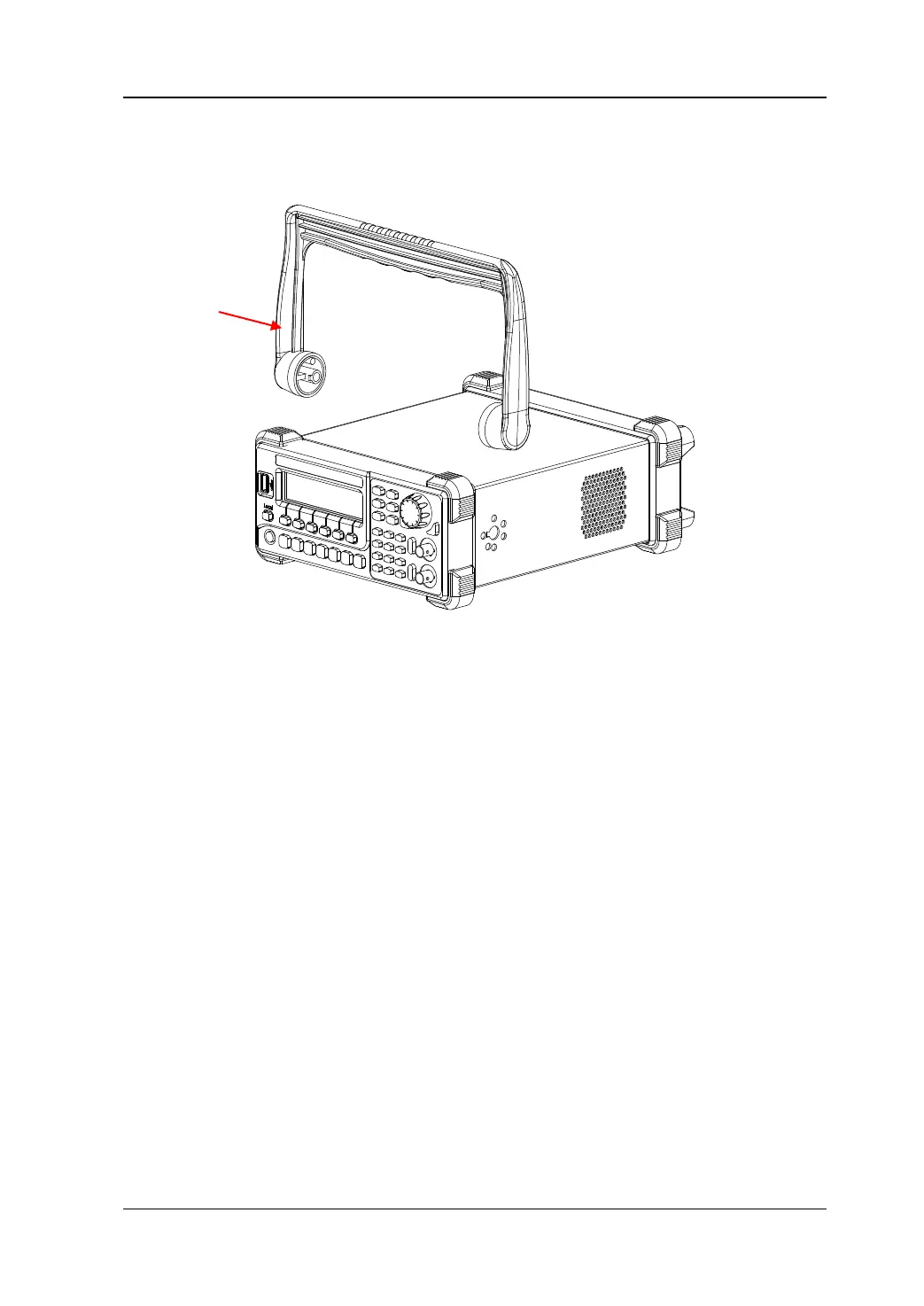

Figure 1-2 Disassemble the Handle

Disassembly Step:

Rotate the handle upright and pull out from the sides of the instrument to remove the

handle.

Handle
