Overview
Press Utility at the front panel to open the operation interface as shown in the
figure below. This interface displays the current channel output configuration,
channel coupling configuration and system parameters.

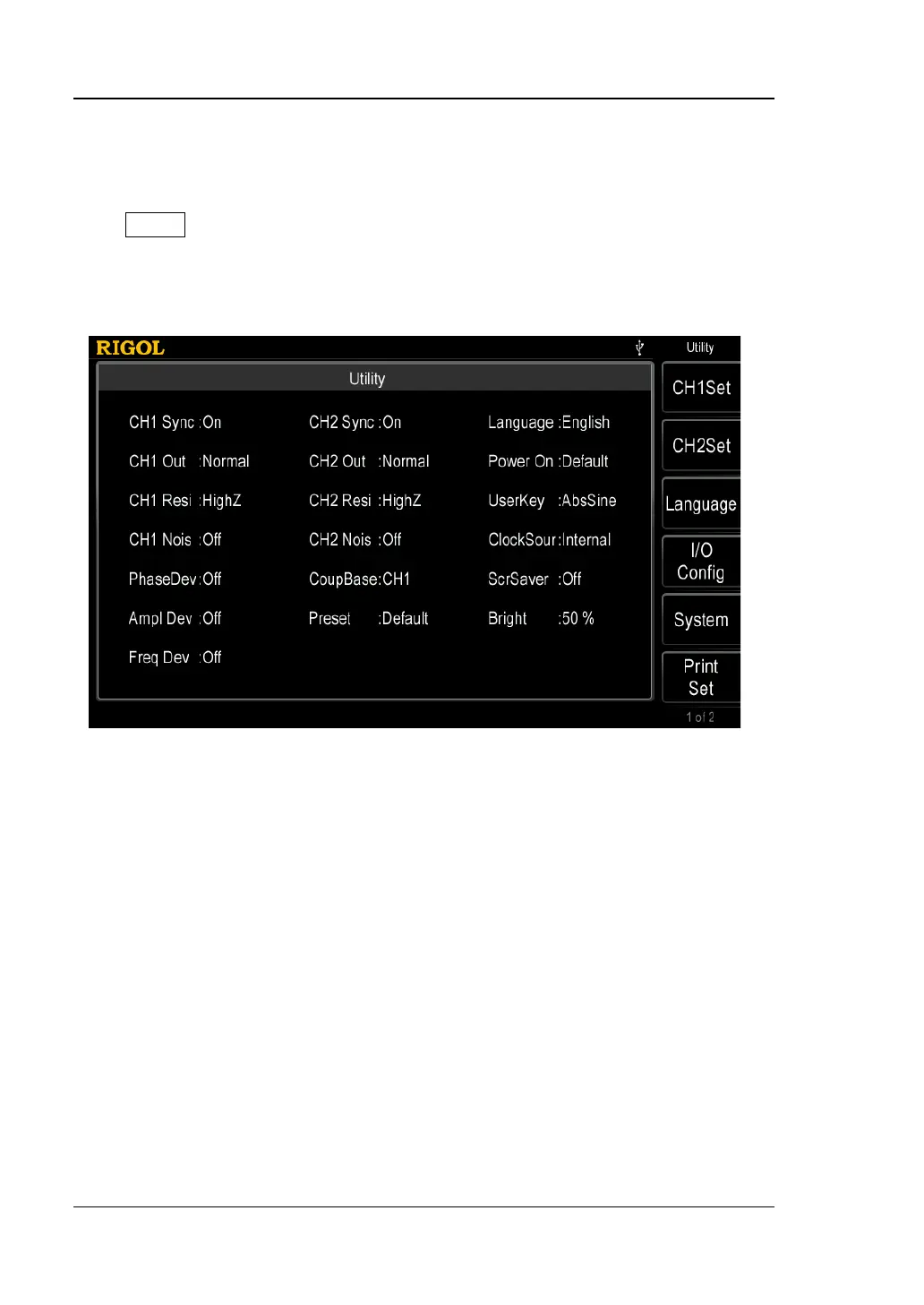

Figure 10-1 Utility Interface
1. CH1Set: set the output parameters of CH1.
2. CH2Set: set the output parameters of CH2.
3. Language: set the language type.
4. I/O Config: set the remote control interface parameters.
5. System: set the system parameters.
6. Print Set: set parameters related to screen print.
7. Test/Cal: calibrate DG4000 manually.
8. Coupling Set: set the channel coupling parameters.
9. Channel Copy: set the channel copy parameters.
10. UserKey: define the shortcut keys of the commonly used built-in waveforms.
11. Preset: restore the generator to its factory default state or stored states.
12. PA Set: set the external power amplifier parameters (only available when the
external power amplifier is connected).
