4.2 Front Panel
This section introduces the front panel of the DP2000 series by taking DP2031 (as
shown in the figure below) as an example. The model-specific features will be
introduced in particular.

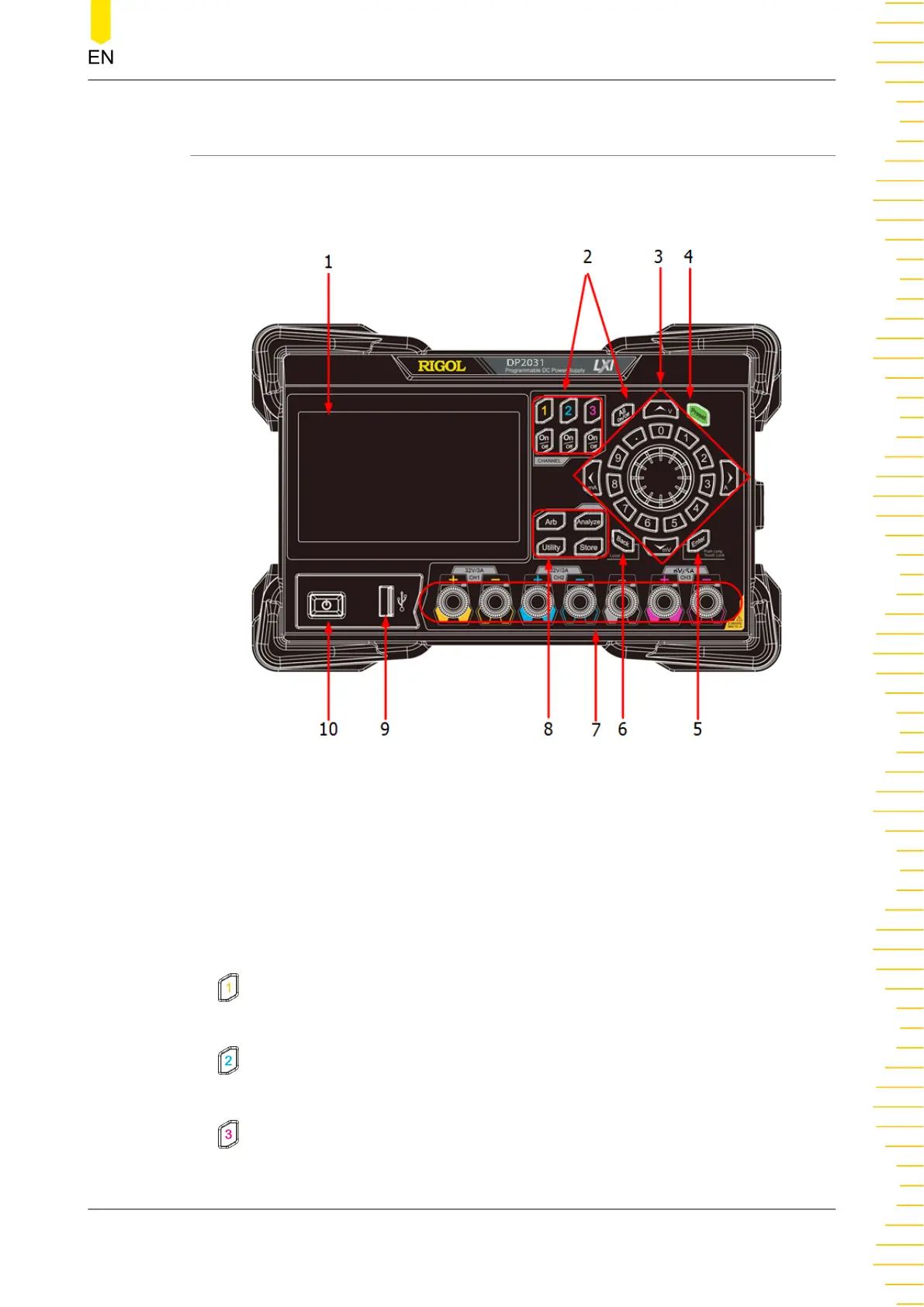

Figure 4.3 DP2000 Front Panel
1. LCD
4.3-inch TFT touch screen to display the the system parameter settings, output
state, menu items, prompt messages, etc.
2. Channel Selection Keys and Output On/Off Keys
The keys are channel selection keys and output on/off keys.
Press this key to select CH1 to control. You can set the parameters of this
channel, such as voltage, current, and overvoltage/overcurrent protection.
Press this key to select CH2 to control. You can set the parameters of this
channel, such as voltage, current, and overvoltage/overcurrent protection.
Press this key to select CH3 to control. You can set the parameters of this
channel, such as voltage, current, and overvoltage/overcurrent protection.
Production Introduction
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
9
