4.4 User Interface
Tap > Display to assess the interface as shown in the figure below. This section
introduces the meter-view display of the power supply.

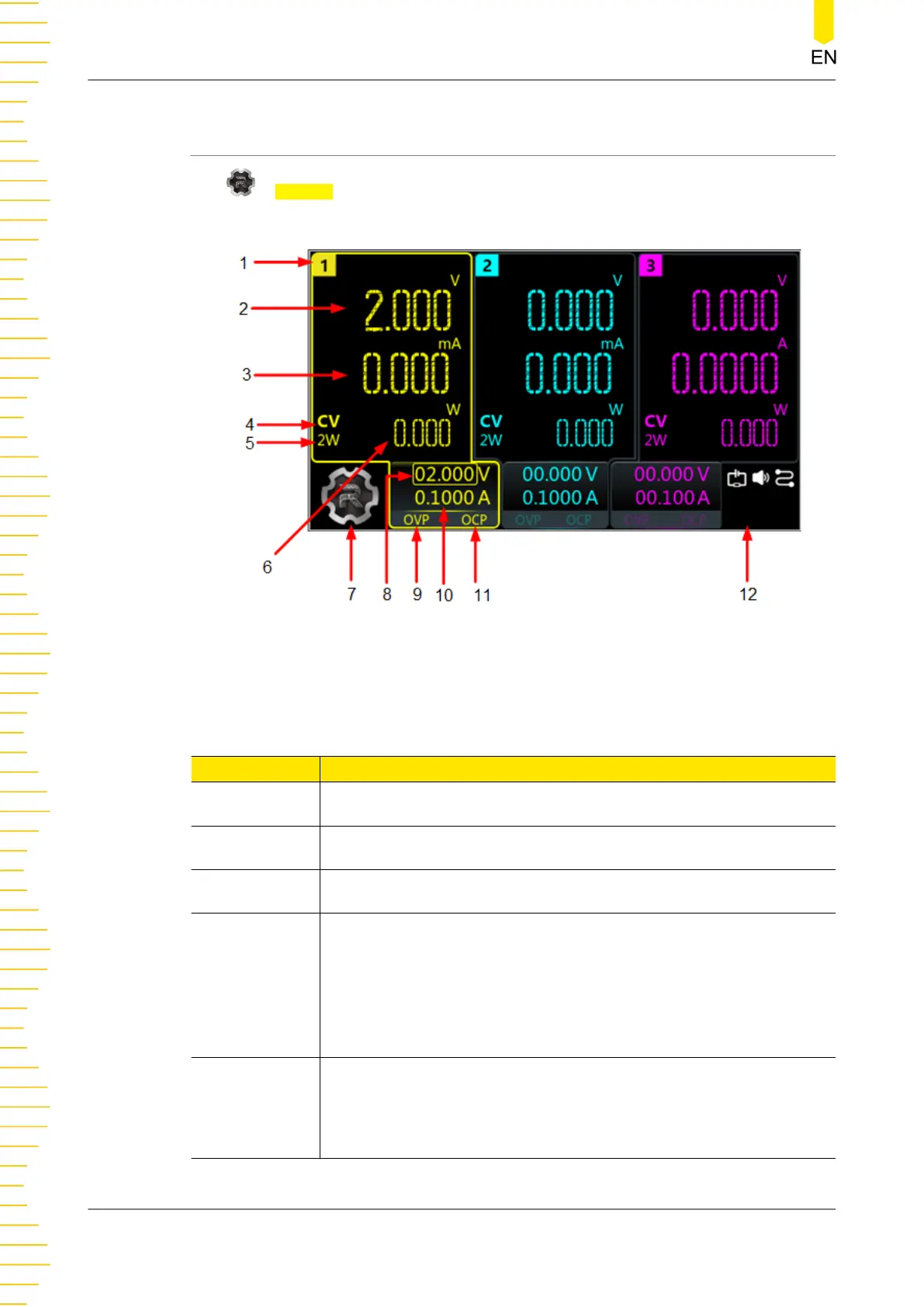

Figure 4.6 User Interface
Table 4.2 User Interface Description
No. Description
1 Channel identifier
2 Actual output voltage
3 Actual output current
4
Output mode
CV: The output is in constant voltage mode.
CC: The output is in constant current mode.
UR: The output is unregulated.
5
Sense connection
4W indicates that 4-wire sensing (remote sensing) measurement is
in use.
Production Introduction
14
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
