No. Description
2W indicates that 2-wire sensing (local sensing) measurement is in
use.
6 Actual output power
7 Navigation icon
8 Voltage setting value
9 Over-voltage protection (OVP) status indicator, indicating the
present OVP on/off state
10 Current setting value
11 Over-current protection (OCP) status indicator, indicating the
present OCP on/off state
12

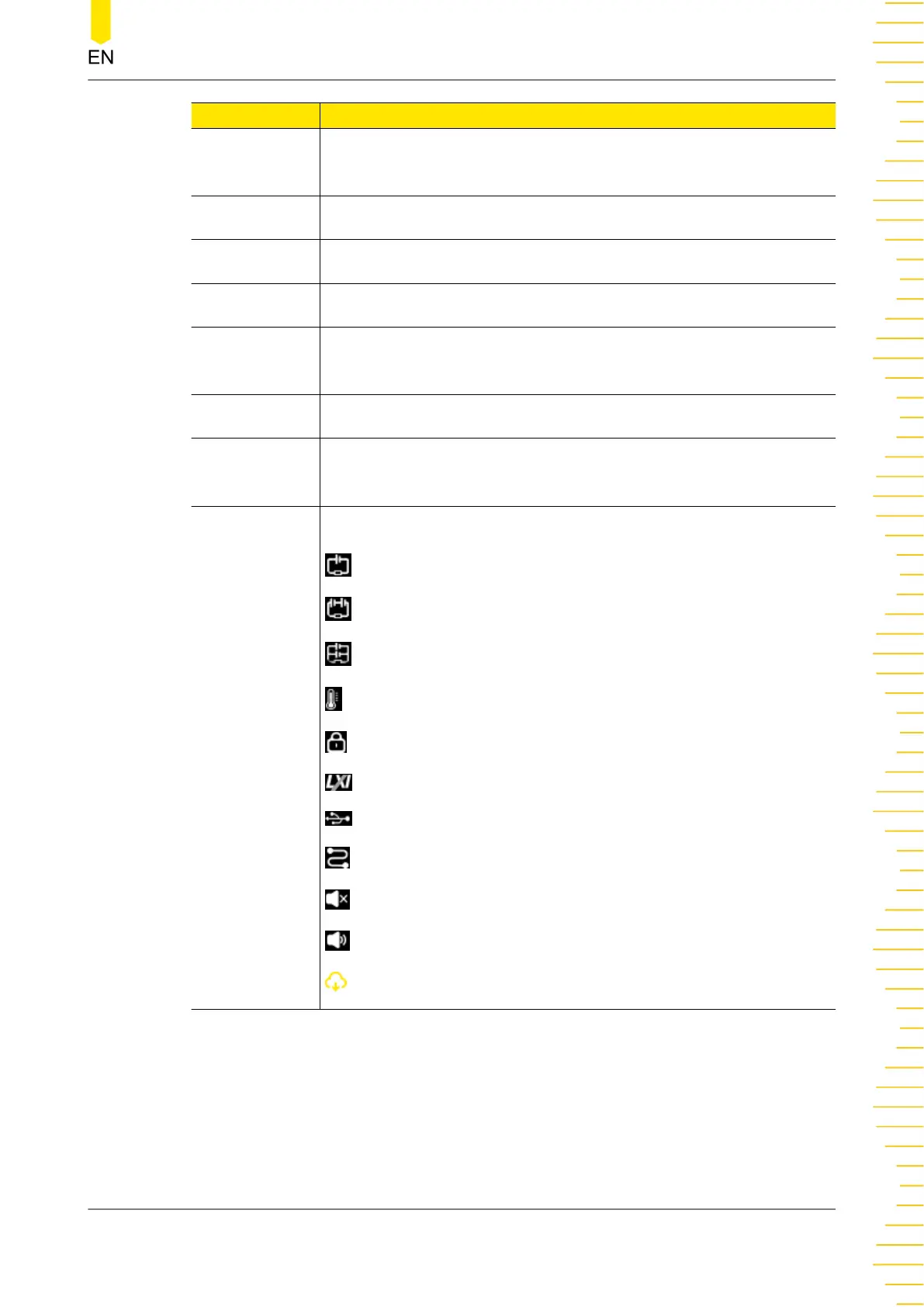

The following icons indicate the system status.
: CH1 and CH2 are independent of each other.
: CH1 and CH2 are connected in series.
: CH1 and CH2 are connected in parallel.
: over-temperature protection is tripped.
: the screen is locked.
: network connected.
: a USB device is detected.
: the instrument is in remote control.
: the beeper is turned off.
: the beeper is turned on.
: downloading the firmware upgrade file.
Production Introduction
