Chapter 3 Remote Control RIGOL
DP800 User’s Guide 3-7

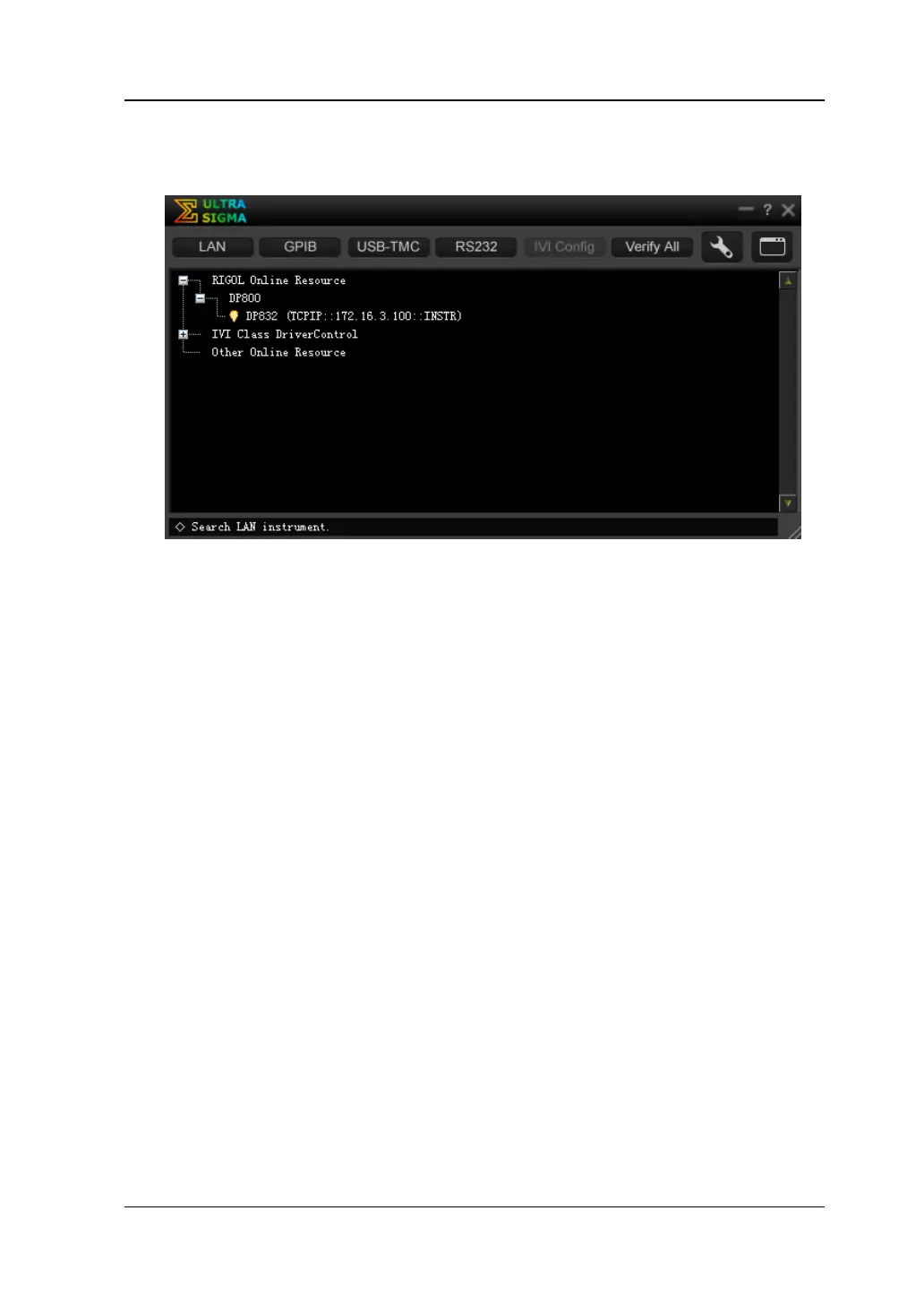

4. View the device resource
The resource found will appear under the "RIGOL Online Resource" directory as
shown in the figure below.
5. Control the instrument remotely
Right click the resource name "DP832 (TCPIP::172.16.3.100::INSTR)" and
select "SCPI Panel Control" to turn on the remote command control panel
through which you can send commands and read data.
6. Load LXI webpage
As this power supply conforms to LXI Core 2011 Device standard, you can load
LXI webpage through Ultra Sigma (right click the resource name and select
"LXI-Web") or directly input the IP address of the instrument in the address bar
of the PC browser. Various important information about the instrument
(including the model, manufacturer, serial number, description, MAC address
and IP address) will be displayed on the webpage.
