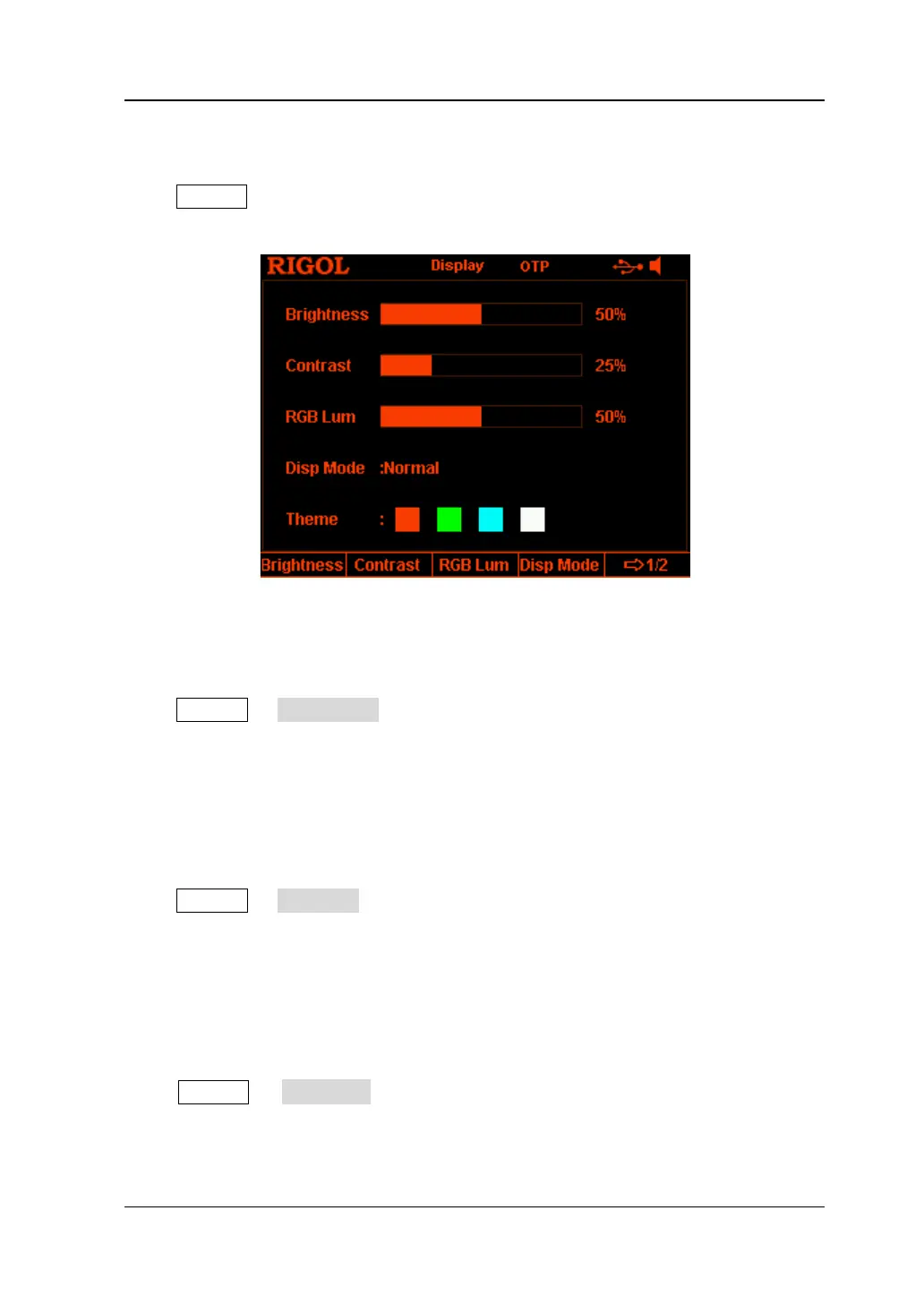

RIGOL Chapter 2 Front Panel Operations
2-46 DP800 User Guide
Browser
Press Store  Browser to move the cursor to the directory or file area and then
use the knob or the up/down arrow key to select the desired directory or file.
File Type
Press Store  Type to select the desired file type (including state file, record file,
timer file, delay file, bitmap file and all files).
1. State File
Store the current instrument state (such as the parameter setting and system
state) in "*.RSF" format in internal or external memory. At most 10 instrument
states can be stored in the internal memory.
2. Record File
When the recorder is turned on, the instrument records the current output state
of each channel (such as the output voltage, current and power as well as
sample interval) and store them in "*.ROF" format in internal or external
memory when the recorder is turned off. At most 10 record files can be stored in
the internal memory.
3. Timer File
Store the edited timer parameters (the voltage, current and time values) in
"*.RTF" format in internal or external memory. At most 10 timer files can be
stored in the internal memory.
4. Delay File
Store the edited delay parameters (the states and time values) in "*.RDF"
format in internal or external memory. At most 10 delay files can be stored in the
internal memory.
5. Bitmap File
You can browse the "*.BMP" format bitmap files under the current directory. As
"*.BMP" format bitmap files cannot be stored in C disk, the right side of the store
and recall interface is blank when the file type is set to "*.bmp" and the current
directory is C disk.
6. All File
Display all the files and folders under the directory currently selected. When this
menu is selected, the save operation is not available.
