Chapter 2 Front Panel Operations RIGOL
DP800 User’s Guide 2-43
User-defined Start-up Interface
DP800 allows users to define the start-up interface. First, store the content to be
displayed in a USB storage device in BMP format (the picture cannot exceeds 320×56
pixels). Then, read the picture file via the instrument and make the corresponding
settings.
Note: DP800 only supports the flash memory USB storage device of FAT32 format.
Press Display CustomGUI to enter the interface as shown in the figure below.

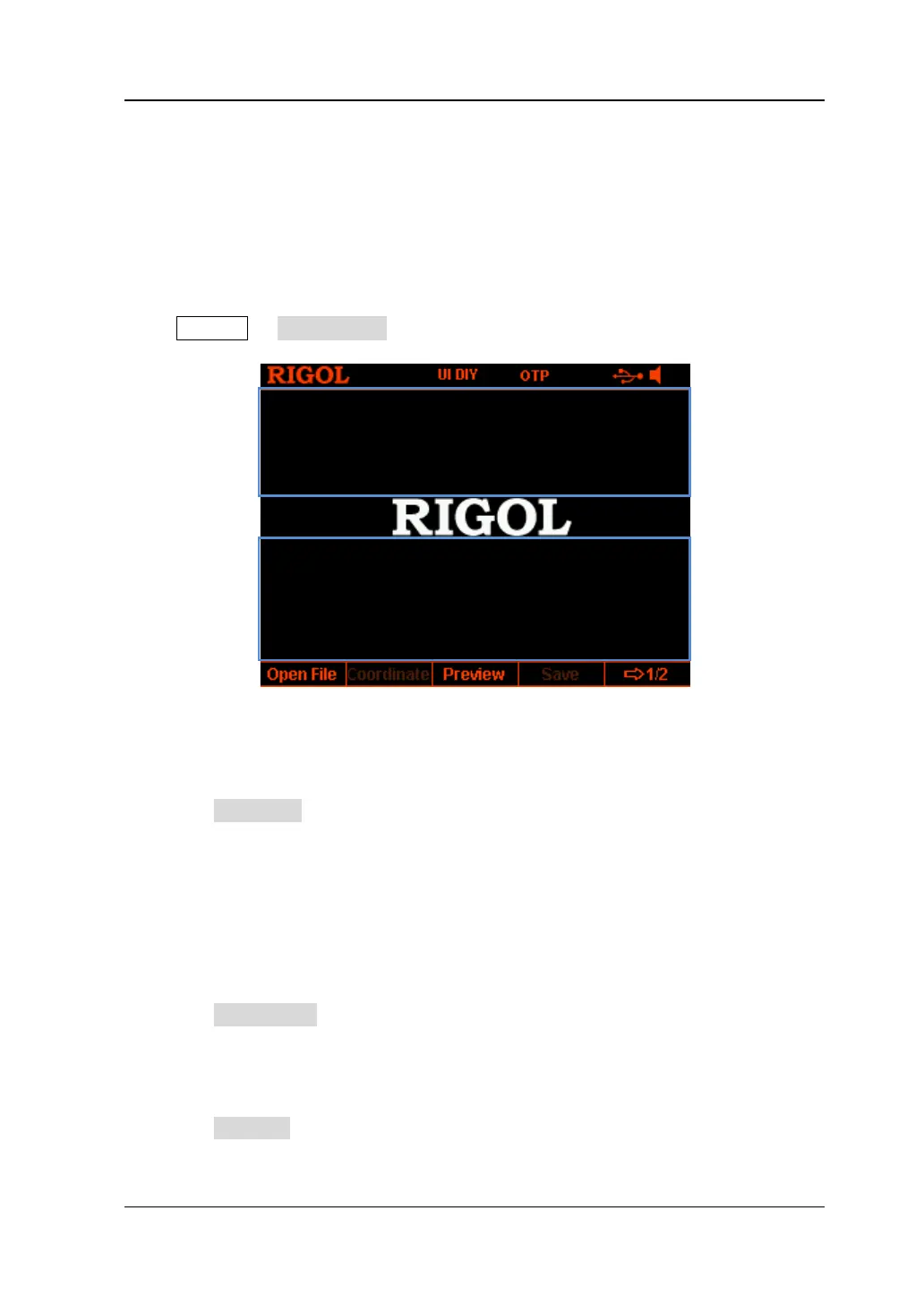

Figure 2-9 User-defined Start-up Interface
You can define the start-up interface by performing the following operations in the
user-defined start-up interface.
1. Open the picture file
Press Open File, the instrument enters the store and recall interface and please
select the desired picture file (only BMP format is supported).
2. Set the coordinate
You can set the display position of the picture selected by setting the coordinate
of the upper-left corner of the picture in the interface. The picture can be
displayed in Area 1 or Area 2 in Figure 2-9
. Wherein, the coordinate range of
Area 1 is from (0,0) to (320,55) and the coordinate range of Area 2 is from
(0,145) to (320,220).
Press Coordinate and use the numeric keyboard and the left/right direction key
or the knob and left/right direction key to set the coordinate. The range is
related to the pixels of the picture.
3. Preview the user-defined start-up interface
Press Preview to preview the user-defined start-up interface. Press any key to
exit the preview interface.
Area 2
