Rigol DP832 Manual

RIGOL
DP800 Quick Guide 5
Single-channel model (DP811):
20V
10A
40V
5A
Press this key to select 20V/10A range as the current range and
you can set the parameters of the channel, such as voltage,
current and overvoltage/overcurrent protection.
Press this key to select 40V/5A range as the current range and you
can set the parameters of the channel, such as voltage, current
and overvoltage/overcurrent protection.
Press this key to enable or disable the output of the channel.

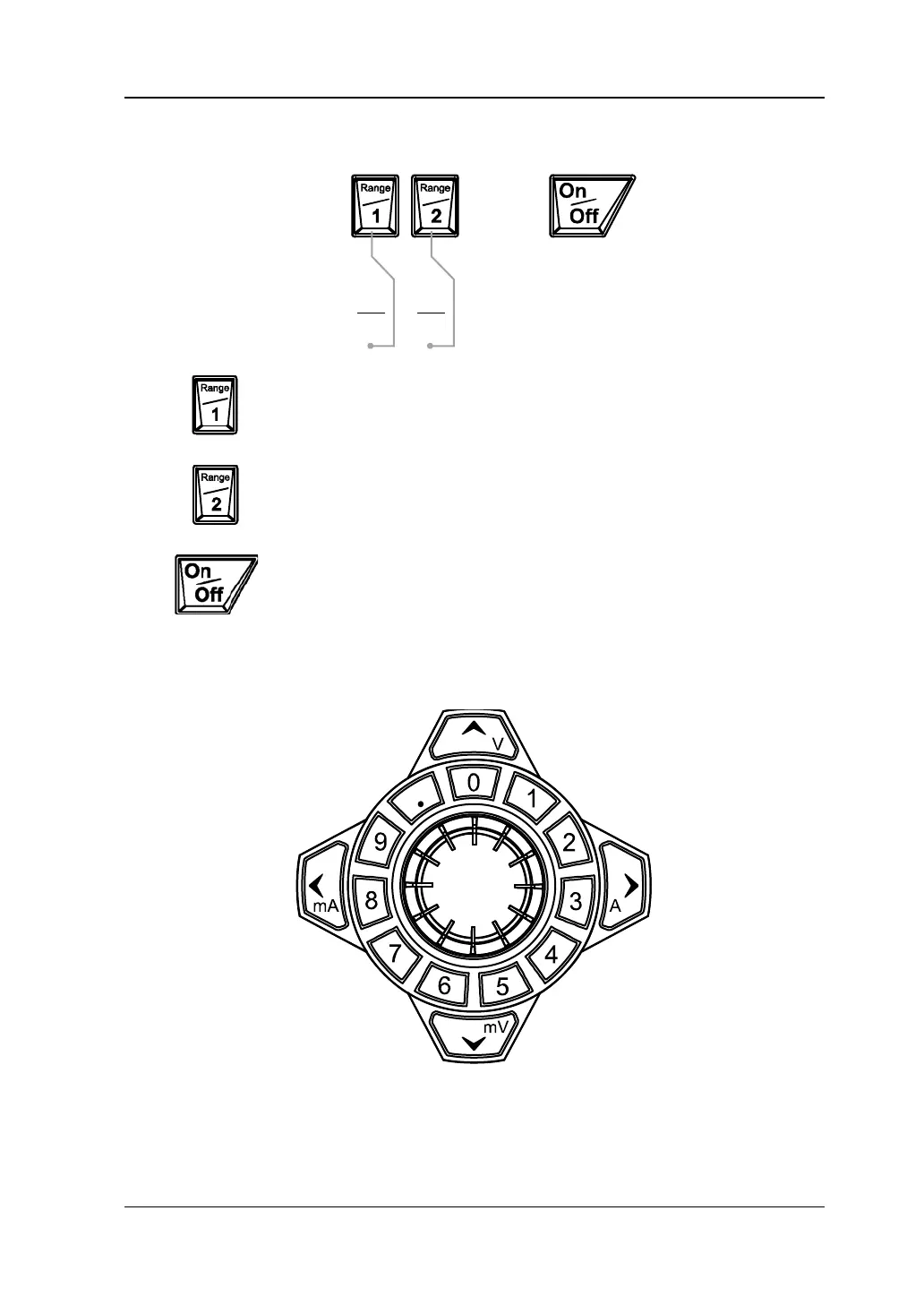

3. Parameter Input Area
The parameter input area is as shown in the figure below. This area includes the
direction keys (unit selection keys), numeric keyboard and knob.
(1) Direction keys and unit selection keys
Direction keys: used to move the cursor. When setting parameters, use the
up/down direction key to increase or reduce the value at the cursor.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
