User’s Guide for DS1000B Series
2-79

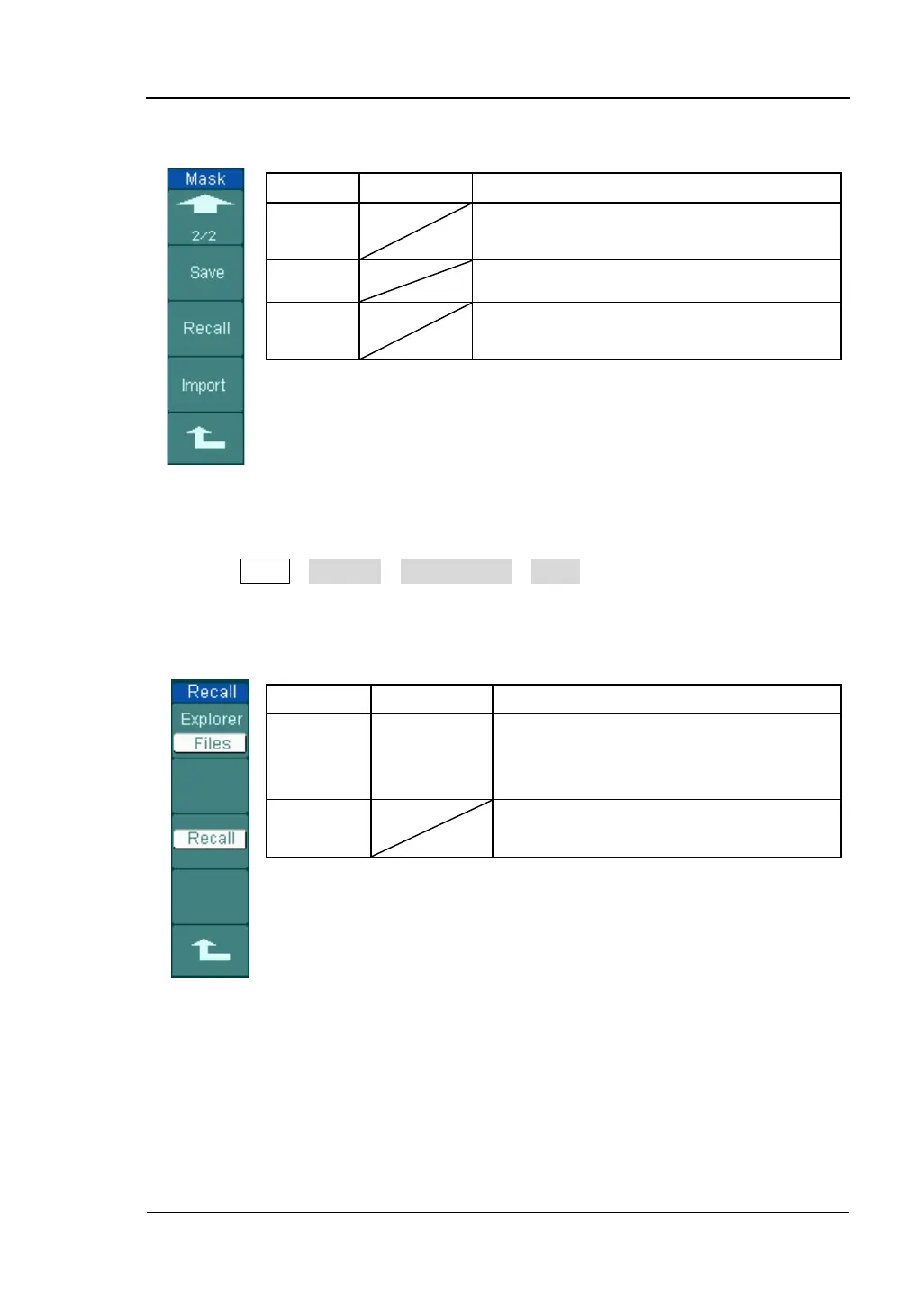

Figure 2-105 Table 2-59 The Mask setting menu (External, Page 2/2)
Menu Settings Comments
Save
Go to save menu
(same as REF save
menu, see table 2-16).
Recall Go to recall menu (see Table 2-63).
Import
Go to import menu. (Same as REF import
menu, see table 2-18).
2. Recall
Press Utility→Pass/Fail→Mask Setting→Recall to recall the setting file from
internal/external memory.
Figure 2-106 Table 2-60 The Recall menu
Menu Settings Comments
Explorer
Path
Directories
Files
Switch among Path, Directory and File.
Recall
Recall the specified file from external
memory.
NOTE: Pass/Fail function is unavailable in X-Y mode.
