RIGOL
User’s Guide for DS1000B Series
1-11
To Understand the Vertical System
As shown in Figure 1-8, there are several buttons and knobs in the VERTICAL
control area, which are used for setting Channels, MATH and REF functions as well as
adjusting vertical position and Volts/div of waveforms. In addition, different colors
are designed for different channels, corresponding to different waveforms, so as to
observe clearly.

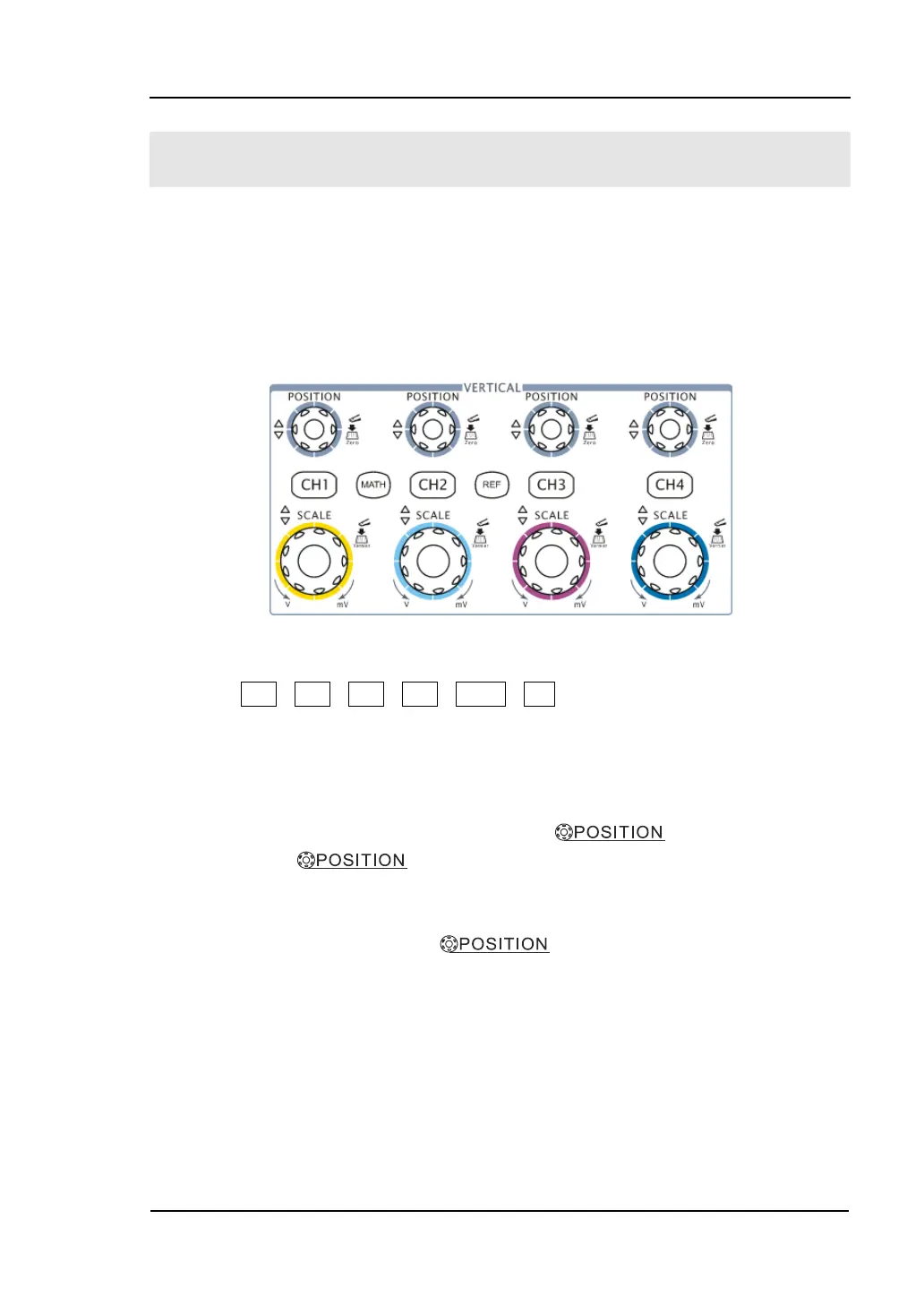

Figure 1-8 Vertical control
1. Press CH1, CH2, CH3, CH4, MATH, REF, the operating menus, symbols,
waveforms and status information of corresponding channel and settings will be
displayed on the screen. The current selected channel will be shut down when
you press the key associated with the channel one more time.
2. Set vertical position of waveform display by
knob.
Turning the
knob, a voltage value is displayed for a short time
indicating its value with respect to the ground reference located at the center of
the screen. Also notice that the ground symbol on the left side of the display
moves in conjunction with the
knob.
