To Use Run Control Buttons
The RUN control buttons include Auto (auto setting), Run/Stop and Single.
Auto: The Auto features automatic adjustments to produce a stable display of the
input signal. Press Auto button, the following menu appears.

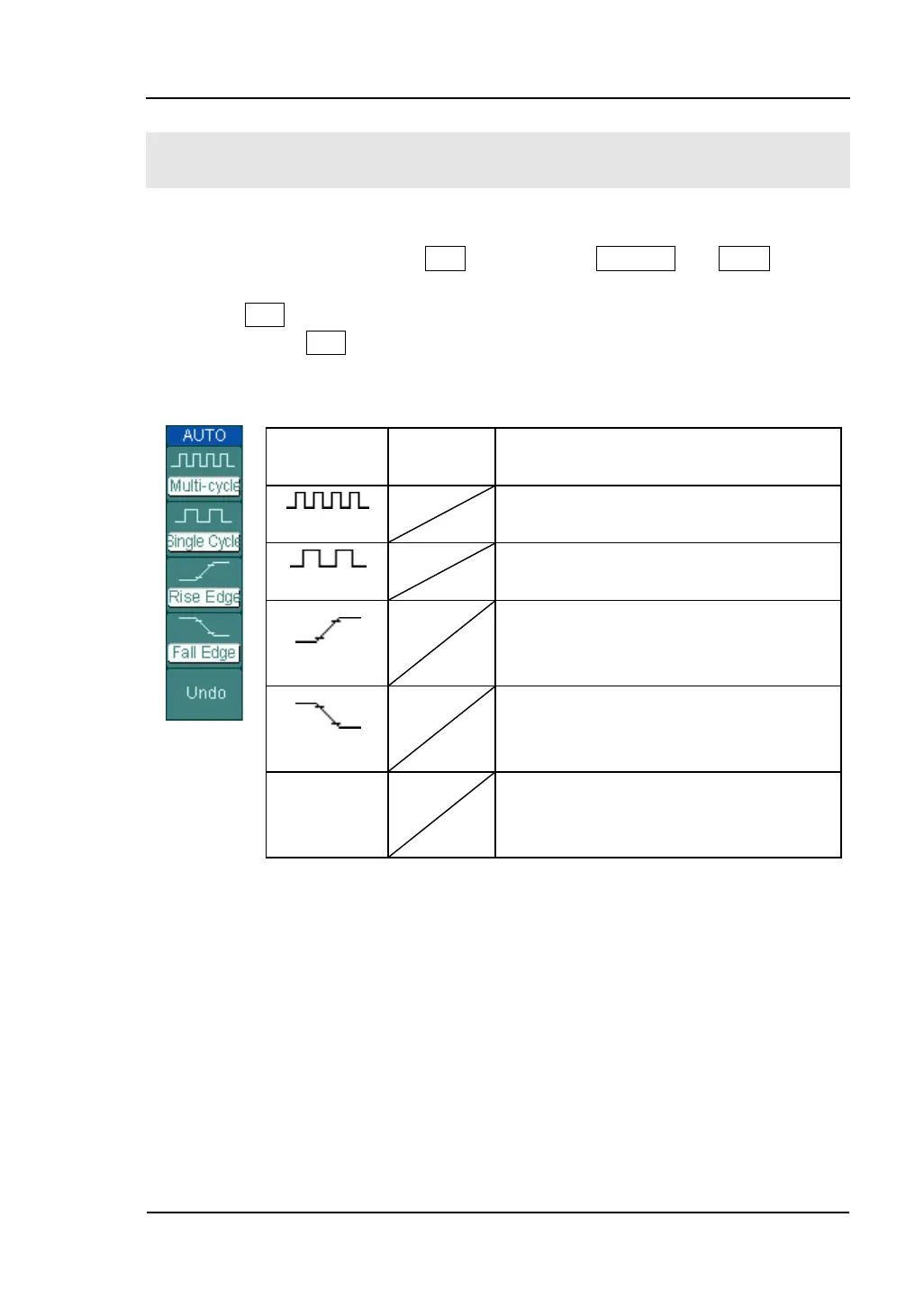

Figure 2-145 Table 2-90 The Auto menu
Menu Settings Comments
Multi-Cycle
Press to display multi-cycle waveform
on the screen.
Single Cycle
Press to display single cycle waveform
on the screen.
Rise Edge
Press to dis
play the waveform’s rising
edge and measure its rise time
automatically.
Fall Edge
Press to display falling edge
of the
waveform and measure its
fall time
automatically.
Undo
Press to cancel all the Auto Set actions,
the oscilloscope will recover to its
previous status.
