User’s Guide for DS1000B series
Key Points:
1. Select the signal channel for measuring. CH1, CH2, CH3, CH4 according to the
interest. Press soft buttons as follows: Measure→Source→CH1, CH2, CH3 ,
CH4.
2. To see all measurement values, Press No.2 button to set the Display All to ON.
18 measurement parameters will be displayed on the screen.
3. Select parameters page for measuring; press No.2 or No.3 button to select
voltage or time parameters pages by pressing soft button as follows: Measure
→Voltage or Time →Vmax, Vmin……
4. To get the measured value on the screen; select the parameters of interest by
pressing the soft button on the right of the menu, and read the data on the
bottom of the screen.
If the data is displayed as “*****”, it means the parameter cannot be measured
in current condition.
5. Clear the measure values: press No.4 button Clear to clear away all of the auto
measure values would disappear from the screen.
6. In Display All mode, there are 18 types of parameters could be used and the
measuring result up to 3 are shown below the screen. When the display area are
filled up 3 results, the new one will be displayed on the very right instating of the
earliest, meanwhile the other two results removed left in turn.

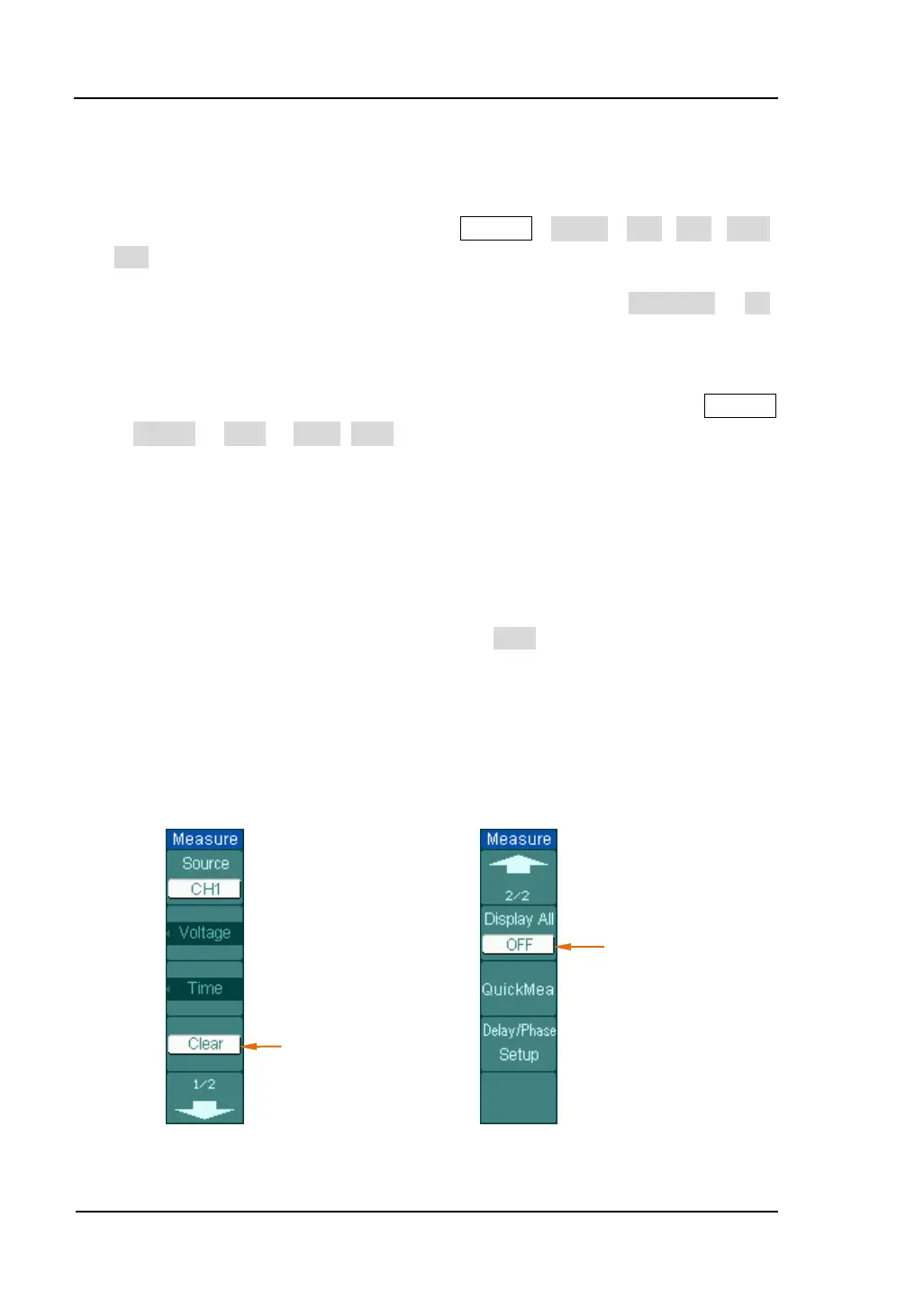

Figure 2-139 Explanation of the menu
Parameters
measurement
To Next Page
