User’s Guide for DS1000B Series
3-7
Measure the Amplitude of the First Waveform Peak of the Sinc.
Please follow these steps:
1. Press Cursor key to see the Cursor menu.
2. Press Mode to set Manual mode.
3. Press Type to select Y.
4. Turn ( ) knob to place cursor A on the first peak of the wave.
5. Turn (
) knob to place cursor B on the second peak of the wave.
Observe the following measurements in the cursor menu: (See Figure 3-5)
 The delta voltage (peak-to-peak voltage of the waveform)
 The voltage at Cursor A
 The voltage at Cursor B

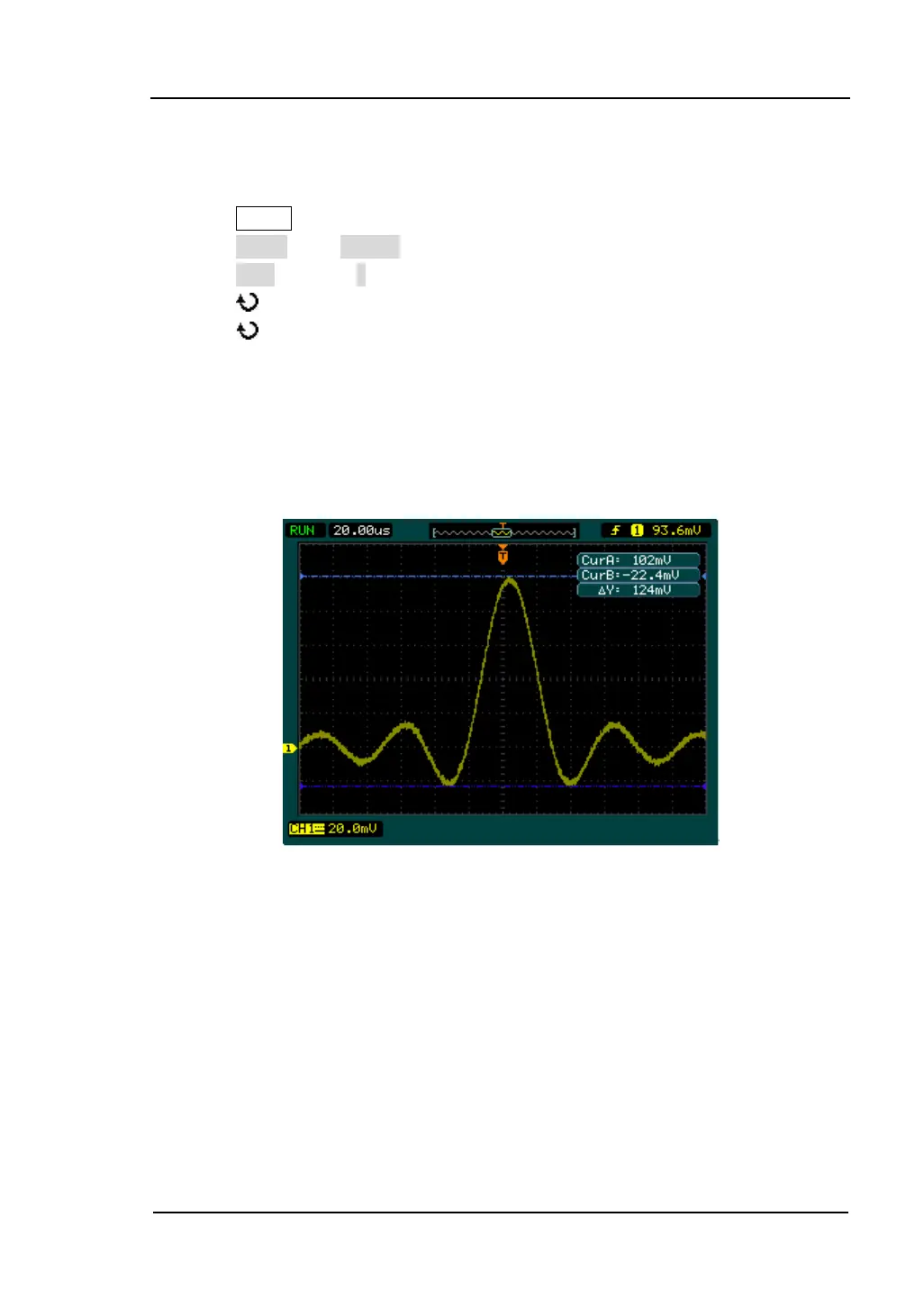

Figure 3-5 Waveform display
