Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B Series
2-5

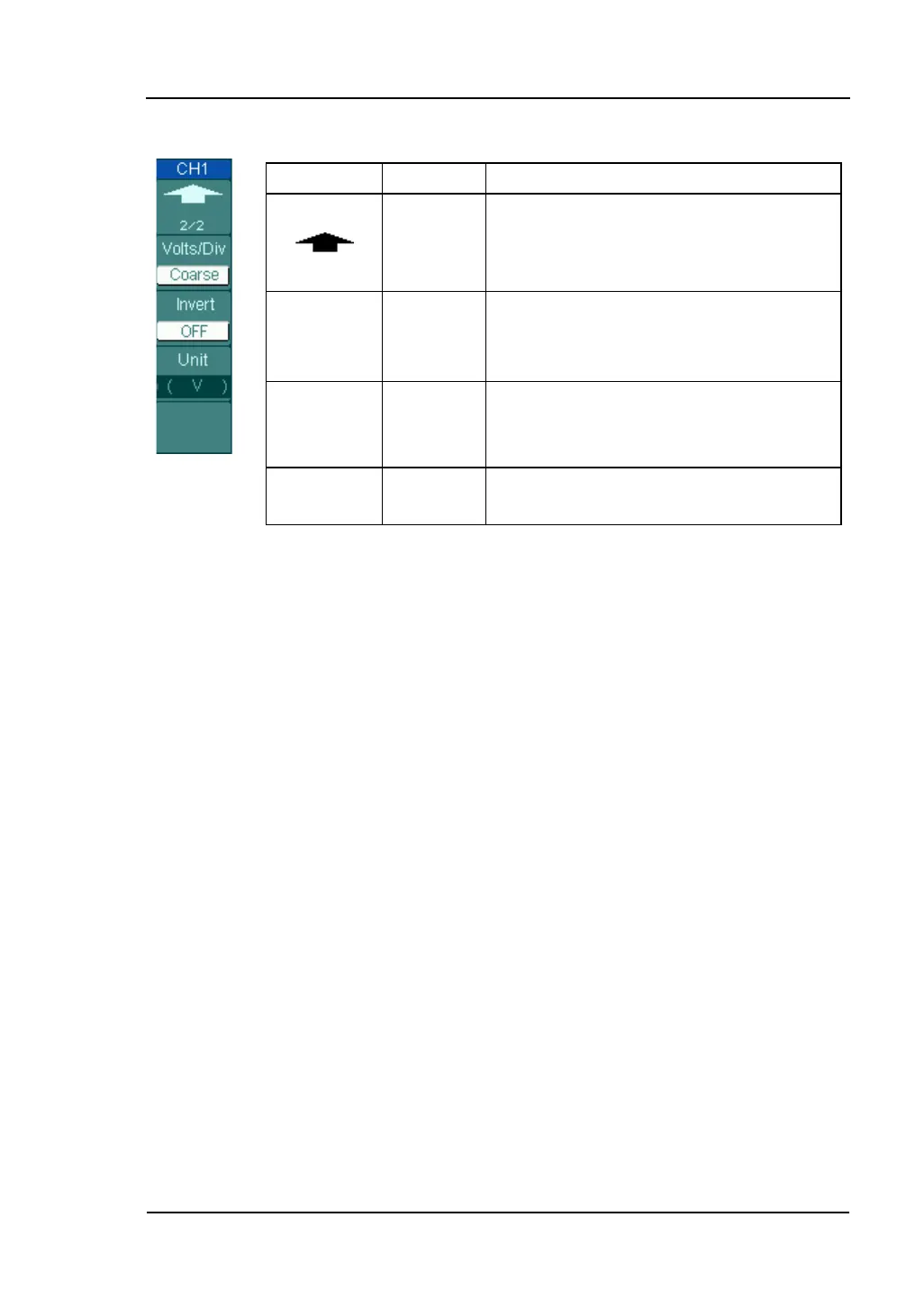

Figure 2-2 Table 2-3 Channel menu (Page 2/2)
Menu Settings Comments
2/2
Back to the previous menu page (The
followings are the same, no more
explanation).
Volts/Div
Coarse
Fine
Define a 1-2-5 sequence.
To change the Volts/Dive settings in
small steps between the coarse settings.
Invert
ON
OFF
Turn on the invert function.
Restore to original display of the
waveform.
Unit
V/ A/
W/ U
Set “V”, “A”, “W” or “U” as the unit of
vertical channel.

Rigol DS1000B Series Specifications

General

Brand	Rigol
Model	DS1000B Series
Category	Test Equipment
Language	English
