Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B Series
2-27
6. Display a Reference Waveform

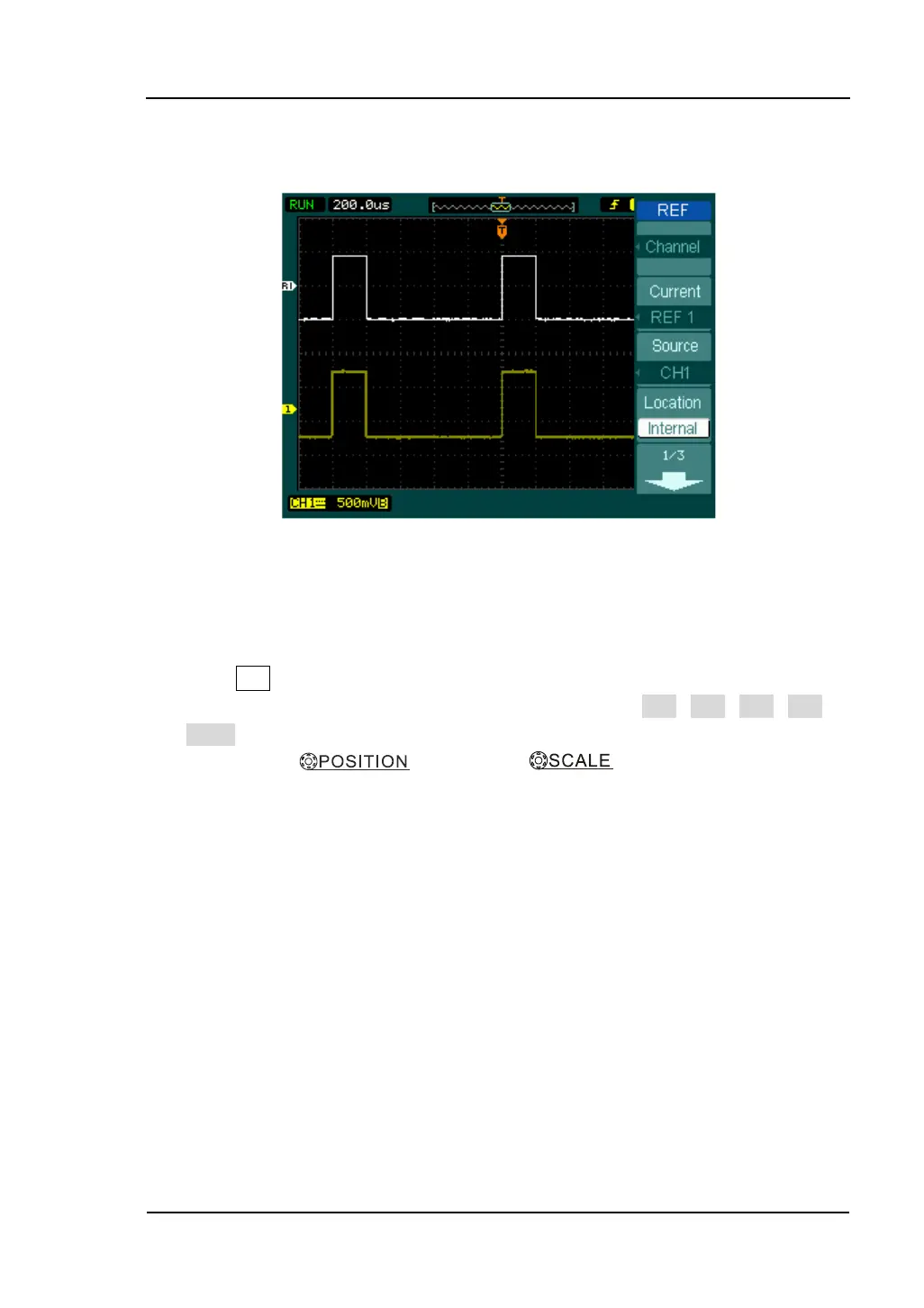

Figure 2-34
Reference waveform display
Operation introductions:
1. Press REF button to show the reference waveform menu.
2. Press soft button 3 to select the reference channel: CH1, CH2, CH3, CH4 or
MATH.
3. Turn vertical and vertical to adjust the REF
waveform to a suitable position.
4. Press soft button No.4 to select the save location of REF waveform.
5. Enter to REF menu (Page2/3) Press soft button No.2 to save the waveform as
REF.
NOTE: The Reference function is not available in X-Y mode.
