Rigol DS1000B Series User Manual

RIGOL
User’s Guide for DS1000B series
2-42

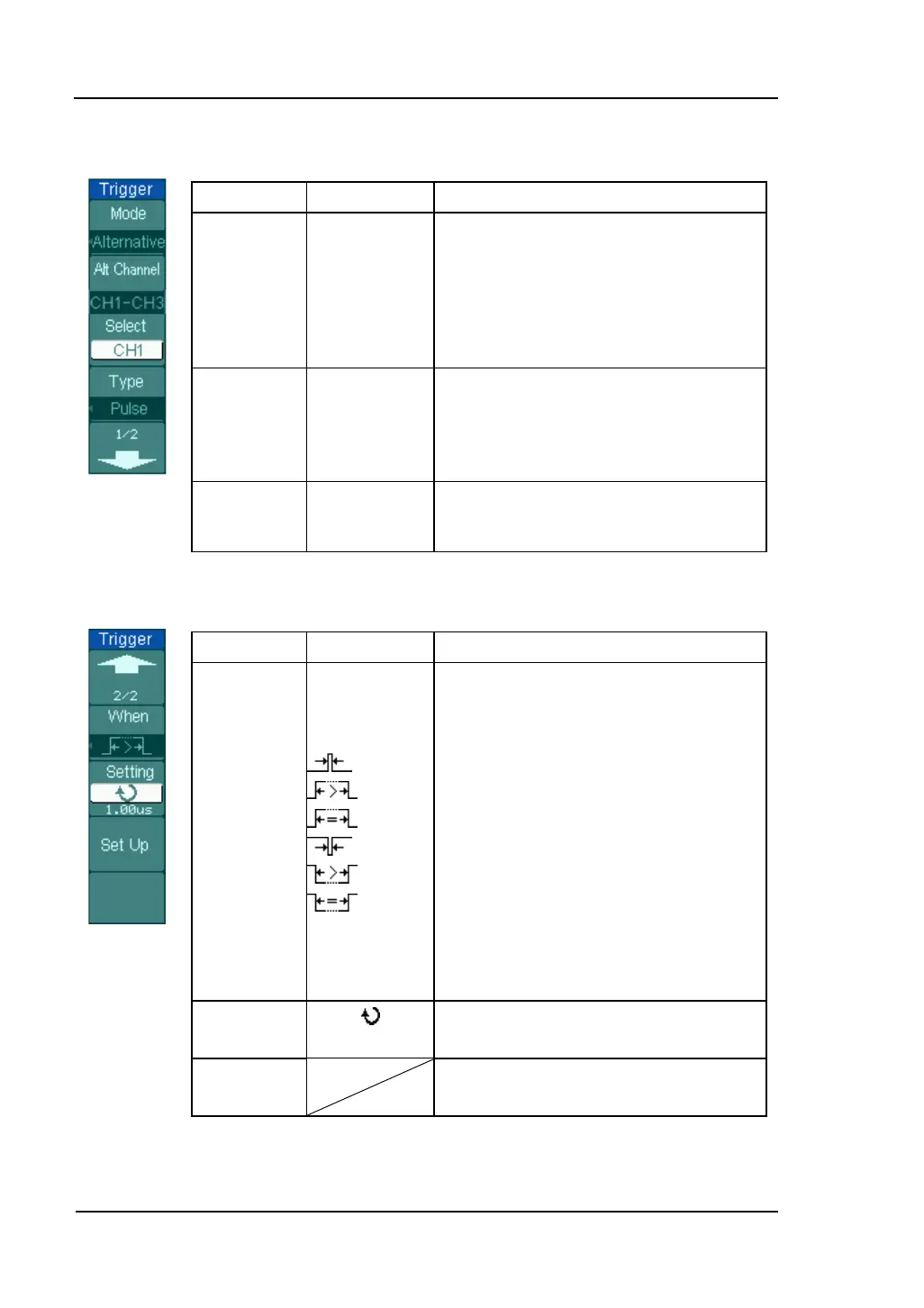

Figure 2-51 Table 2-30 The Alternative trigger menu (Page 1/2 Trigger Type: Pulse)
Menu Settings Comments
Alt Channel
CH1-CH2
CH1-CH3
CH1-CH4
CH2-CH3
CH2-CH4
CH3-CH4
To specify the current alternative
trigger channels as any two channels
selected form CH1, CH2, CH3, CH4.
select
CH1, CH2,
CH3, CH4
To select vertical channel among CH1,
CH2, CH3, CH4 in alternative trigger
mode so as to configure further
settings.
type
Edge trigger
Pulse trigger
Video trigger
Select trigger type for current
channel.
Figure 2-52 Table 2-31 The Alternative trigger menu (Page 2/2 Trigger Type: Pulse)
Menu Settings Comments
When
Set Pulse width as
“+pulse width less
than”
Set Pulse width as
“+pulse width more
tha
n”
Set Pulse width as
“+pulse width equal
to”
Set Pu
lse width as “-p
ulse width less
than”
Set
Pulse width as “-pulse width more
than”
Set Pulse width as
“-pulse width equal
to
”
Settings
<Pulse width >
To set up width value of the pulse.
Set Up
To go to set up menu. See Table 2-34.
