Rigol DS1052E Service Guide

RIGOL Chapter 3 Performance Test
Service Guide for DS1000E, DS1000D Series
3-6
RS-232 Interface Test
Purpose:
Test if RS-232 interface works normally through Ultrascope for DS1000E, DS1000D
series.
Tools:
 A set of DS1000E, DS1000D series digital oscilloscope
 A PC with RS-232 interface
 A standard RS-232 cable
 Ultrascope for DS1000E, DS1000D series
Steps:
1. Install the Ultrascope for DS1000E, DS1000D series software on the PC.
2. Connect the oscilloscope with PC using an RS-232 cable.

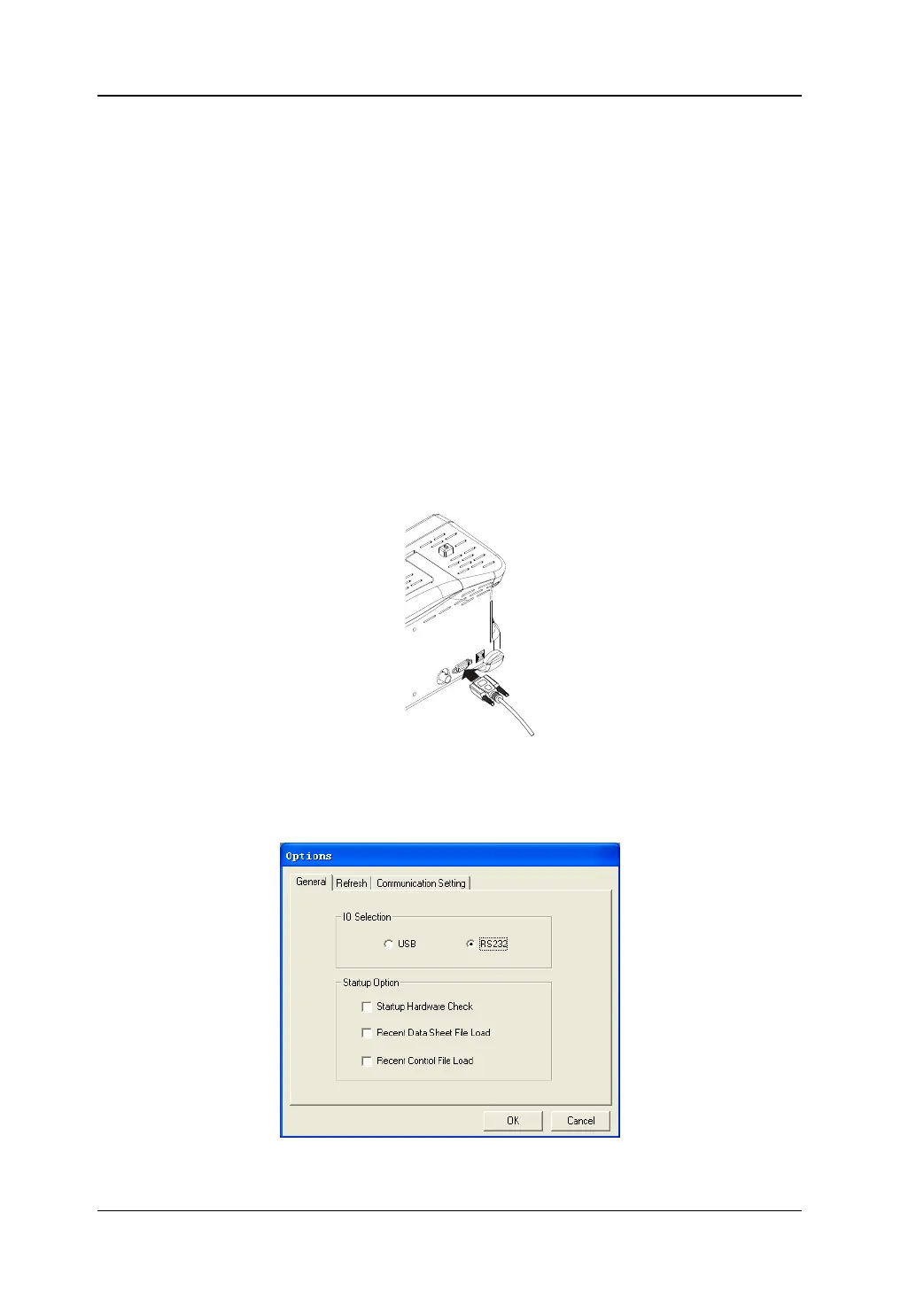

Figure 3-6 RS-232 interface connection
3. Run Ultrascope for DS1000E, DS1000D Series, then click Tools→Options and
select RS-232 as the current IO.
Figure 3-7 Select RS-232 interface

Rigol DS1052E Specifications

General

Bandwidth	50 MHz
Sample Rate	1 GSa/s
Channels	2
Memory Depth	1 Mpts
Vertical Sensitivity	2 mV/div to 10 V/div
Input Impedance	1 MΩ ± 2% || 15 pF ± 3 pF
Vertical Resolution	8 bits
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Power Supply	100-240 V AC, 45-440 Hz
Display	5.7 inch TFT LCD
Interfaces	USB Host, USB Device, RS-232
Dimensions	303 mm x 154 mm x 133 mm
