MSO1000Z/DS1000Z Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to Digital Channel Interface
at the front panel of MSO1000Z in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test.
MSO1000Z is provided with the RPL1116 logic probe which provides two
connecting methods to connect to the signal under test to realize convenient
and flexible detection. For the details, please refer to the
RPL1116 Logic Probe
User’s Guide
.

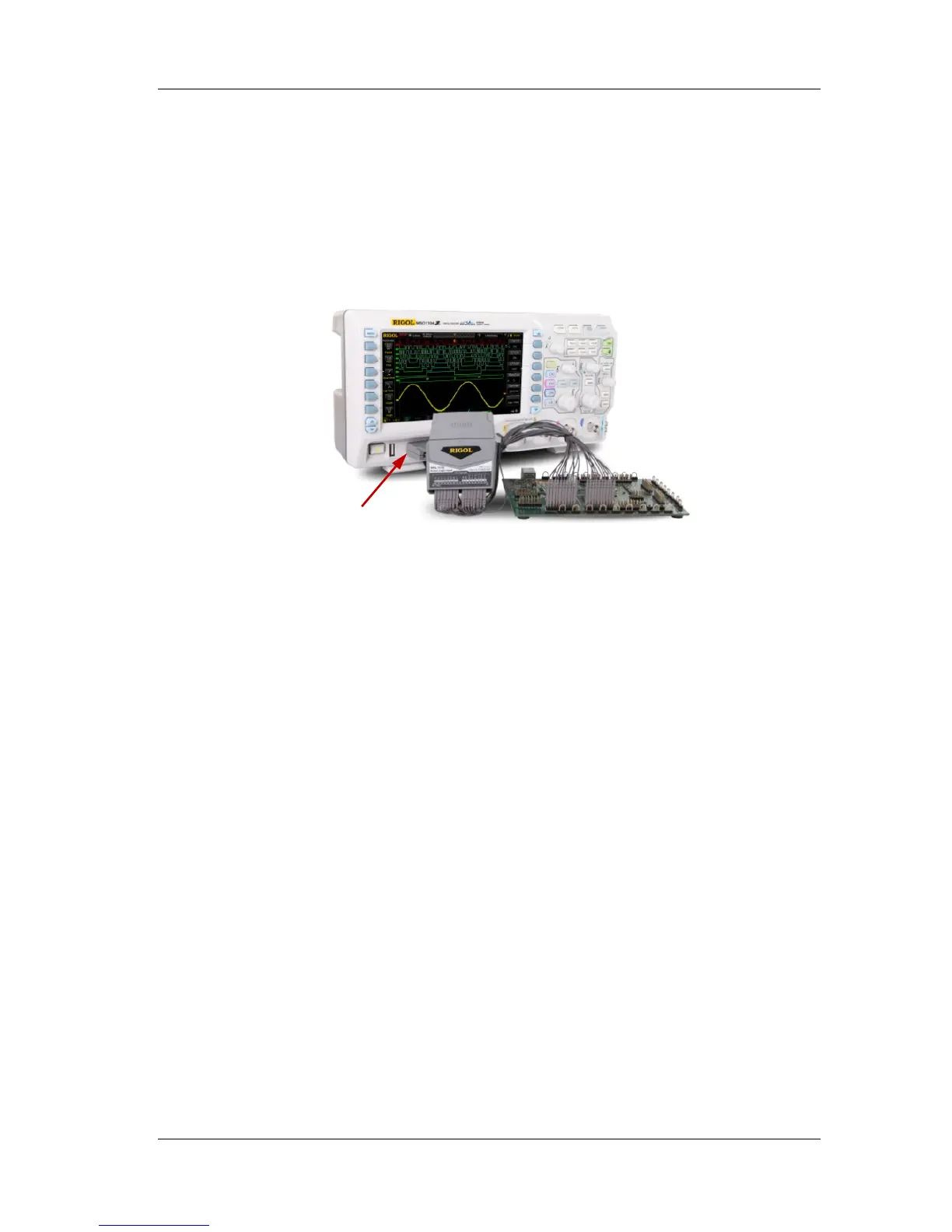

Figure 6 To Connect the Logic Probe
Digital Channel Interface

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
