Rigol DS1054Z Quick Guide

RIGOL
8 MSO1000Z/DS1000Z Quick Guide
Front Panel Overview

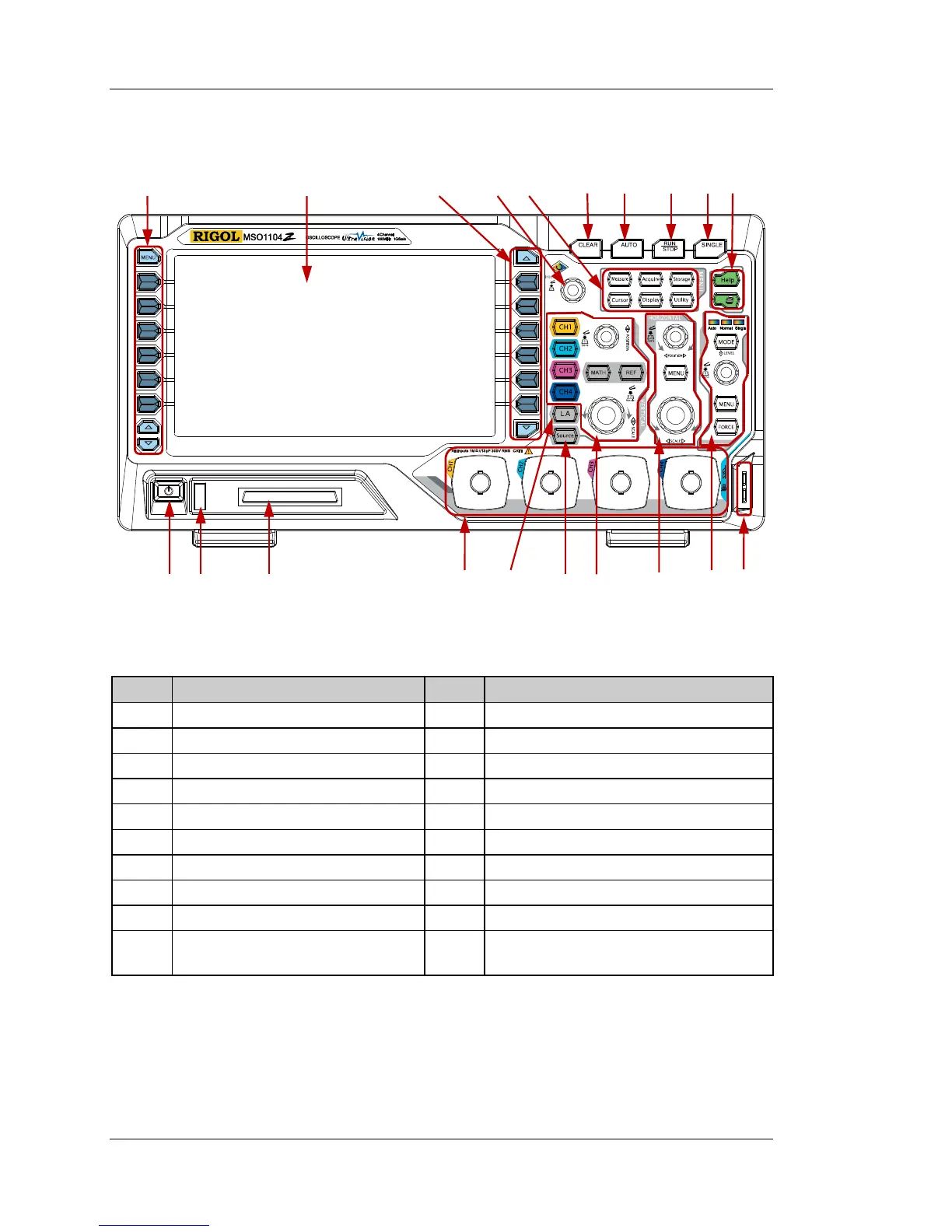

Figure 10 Front Panel Overview
Table 1 Front Panel Description
No.
Description
No.
Description
1
Measurement Menu Softkeys
11
Power Key
2
LCD
12
USB HOST Interface
3
Function Menu Softkeys
13
Digital Channel Input Interface
[1]
4 Multifunction Knob 14 Analog Channel Input Interface
5
Common Operation Keys
15
Logic Analysis Control Key
[1]
6 CLEAR 16 Signal Source
[2]
7 AUTO 17 VERTICAL Control
8 RUN/STOP 18 HORIZONTAL Control
9
SINGLE
19
TRIGGER Control
10 Help/Print 20
Probe Compensation Signal
Output Terminal/Ground Terminal
Note
[1]
: Only applicable to MSO1000Z-S and MSO1000Z models oscilloscopes.
Note
[2]
: Only applicable to MSO1000Z-S and DS1000Z-S models oscilloscopes.
3 4 5 6 7 8 9 10
1 2
11 12 13 14 15 16 17 18 19 20

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
