Rigol DS1054Z Quick Guide

RIGOL
14 MSO1000Z/DS1000Z Quick Guide

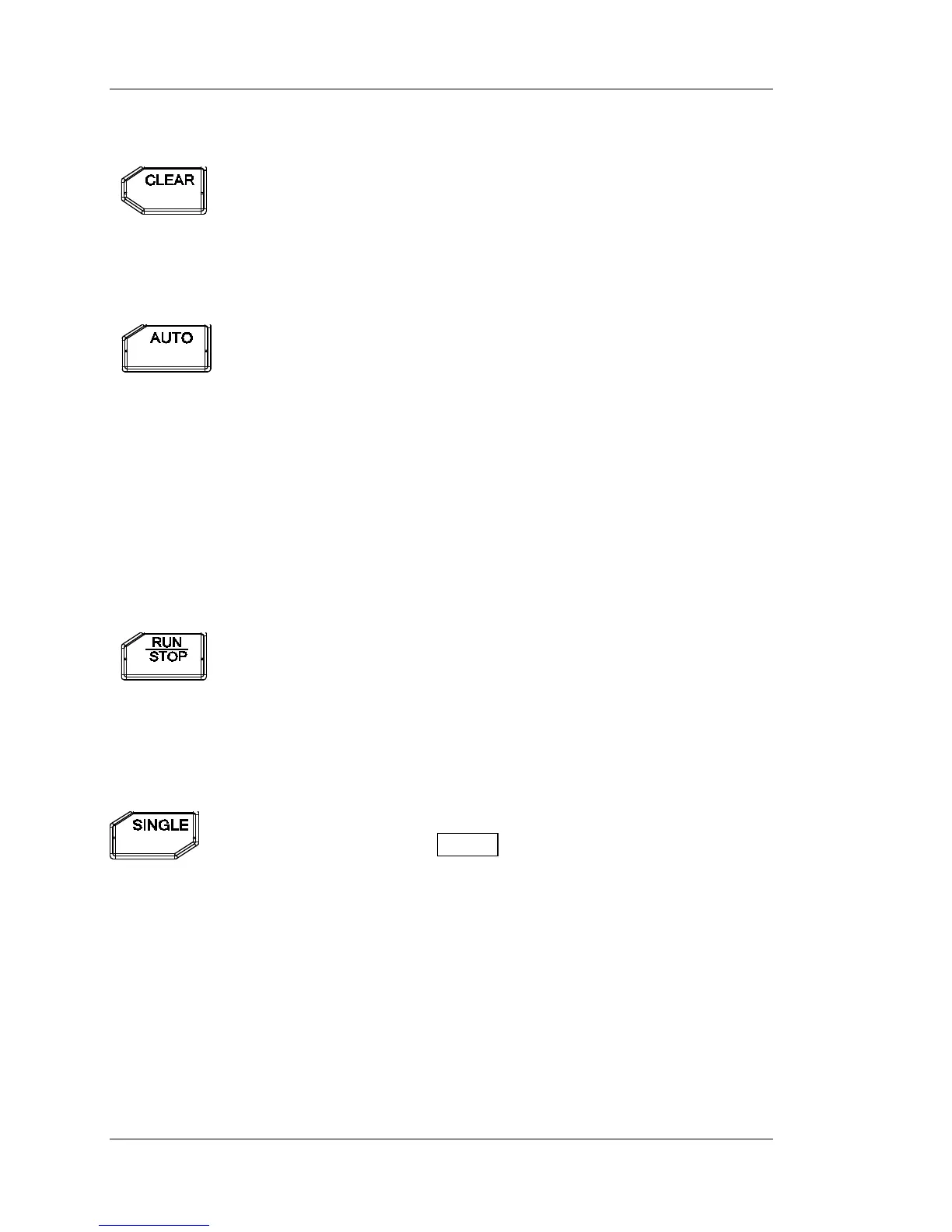

CLEAR
Press this key to clear all the waveforms on the screen. If the
oscilloscope is in “RUN” state, new waveforms will still be
displayed.
AUTO
Press this key to enable the waveform auto setting function.
The oscilloscope will automatically adjust the vertical scale,
horizontal time base and trigger mode according to the input
signal to realize optimum waveform display.
Note: Waveform auto setting function requires that the frequency of sine is no lower
than 41Hz; the duty cycle should be greater than 1% and the amplitude must be at
least 20mVpp for square. Otherwise, the Waveform auto setting function may be
invalid and the quick parameter measurement function displayed in the menu will
also be unavailable.
RUN/STOP
Press this key to “RUN” or “STOP” waveform sampling. In the
“RUN” state, the key is illuminated in yellow. In the “STOP”
state, the key is illuminated in red.
SINGLE
Press this key to set the trigger mode to “Single”. In single
trigger mode, press FORCE to generate a trigger signal
immediately.

Rigol DS1054Z Specifications

General

Channels	4
Bandwidth	50 MHz
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Display	7 inch TFT LCD (800x480)
Vertical Sensitivity	1 mV/div to 10 V/div
Time Base Range	5 ns/div to 50 s/div
Vertical Resolution	8 bits
Trigger Types	Edge, Pulse, Video, Slope
Connectivity	USB Host, USB Device, LAN
Input Impedance	1 MΩ
Power Supply	100-240 VAC, 45-440 Hz
