RIGOL Chapter 1 Quick Start
1-14 MSO1000Z/DS1000Z User’s Guide

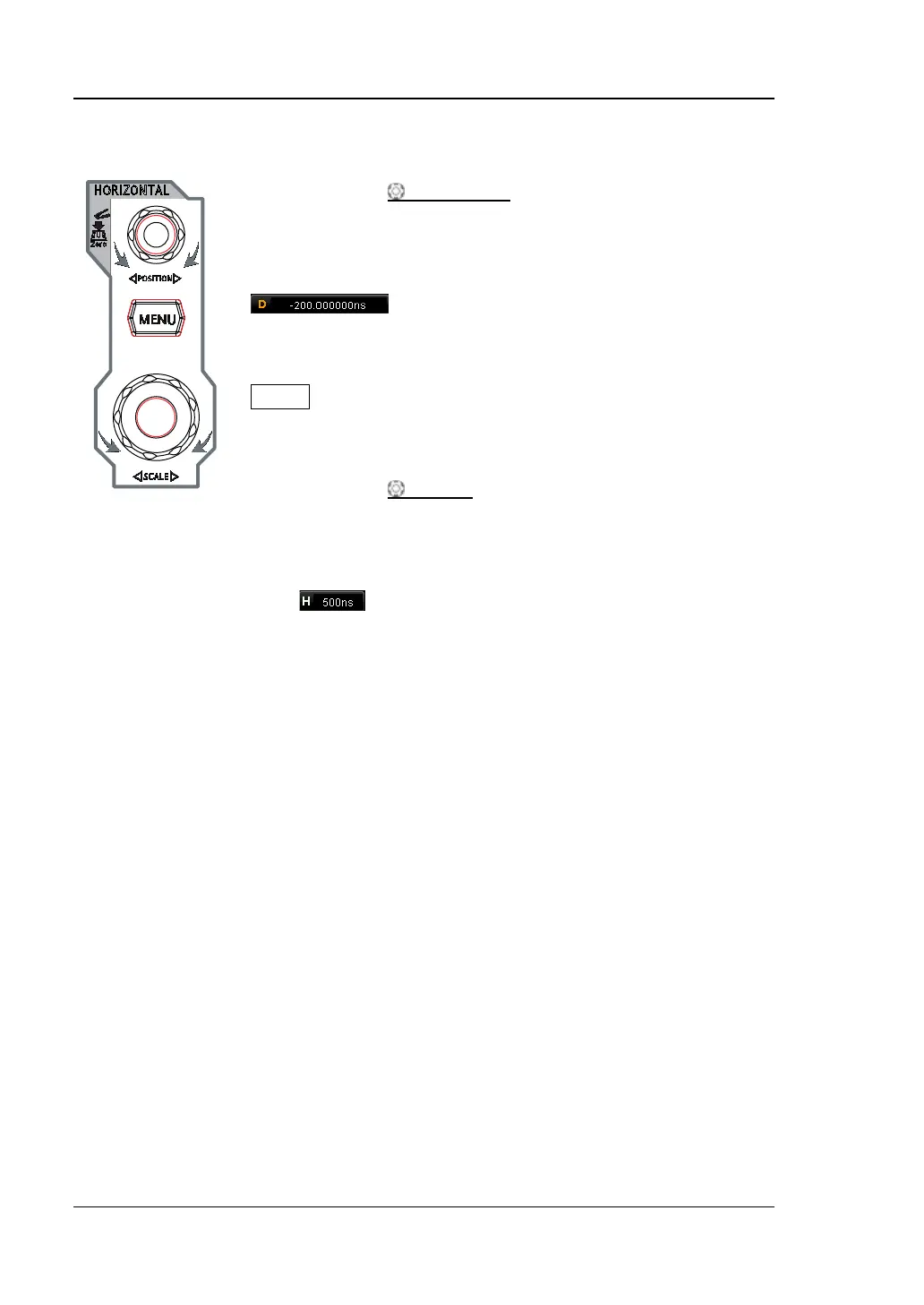

HORIZONTAL
HORIZONTAL POSITION
: modify the horizontal
position. The trigger point would move left or right relative to
the center of the screen when you turn the knob. During the
modification, waveforms of all the channels would move left or
right and the horizontal position message (e.g.
) at the upper-right corner of the screen
would change accordingly. Press down this knob to quickly
reset the horizontal position (or the delayed sweep position).
MENU: press this key to open the horizontal control menu
where you can turn on or off the delayed sweep function and
switch between different time base modes.
HORIZONTAL
SCALE: modify the horizontal time base.
Turn clockwise to reduce the time base and turn
counterclockwise to increase the time base. During the
modification, waveforms of all the channels will be displayed in
expanded or compressed mode and the time base message
(e.g.
) at the upper side of the screen would change
accordingly. Press down this knob to quickly switch to the
delayed sweep state.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1104Z Plus Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Connectivity	USB Host, USB Device, LAN, AUX
Vertical Resolution	8 bits
Power Supply	100-240 V AC, 45-440 Hz
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope
Input Impedance	1 MΩ ± 2%
