DS6000 Quick Guide
6

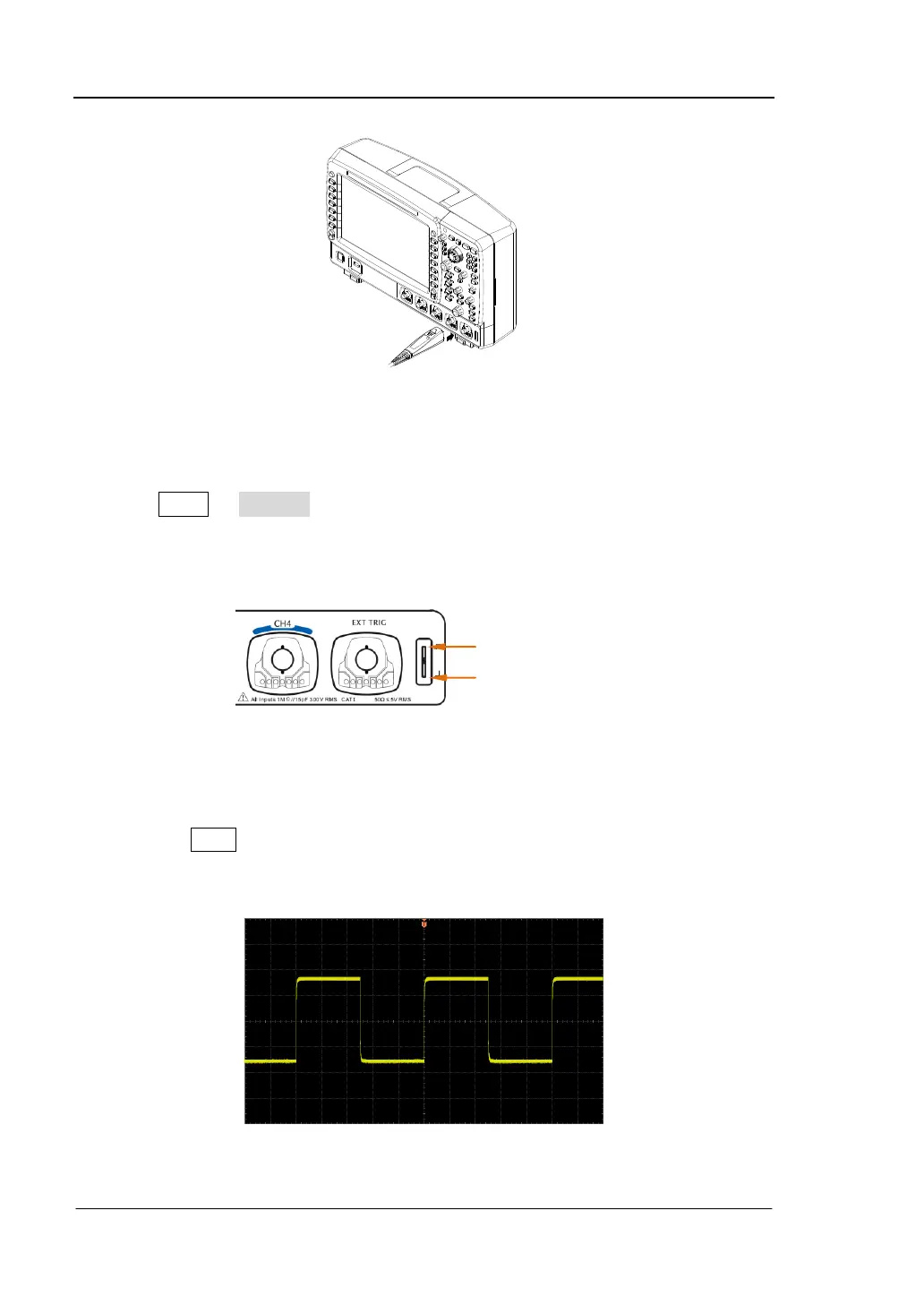

Figure 7 To Connect the Probe
Function Inspection
1. Press SAVE  Factory to restore the oscilloscope to its default configuration.
2. Use the probe to connect the input terminal of channel 1 (CH1) of the
oscilloscope and the “Compensation Signal Output Terminal” of the probe.
Figure 8 To Use the Compensation Signal
3. Connect the earth alligator clip of the probe to the “Ground Terminal” under the
probe compensation signal output terminal.
4. Press the Auto key.
5. Observe the waveform on the display. In normal condition, the display should be
a square waveform as shown in the figure below:
Figure 9 Square Waveform Signal
Compensation Signal Output Terminal
Ground Terminal
