Rigol DSA800 Series User Manual

Chapter 2 Front Panel Operation RIGOL
User’s Guide for DSA800/E Series
2-101

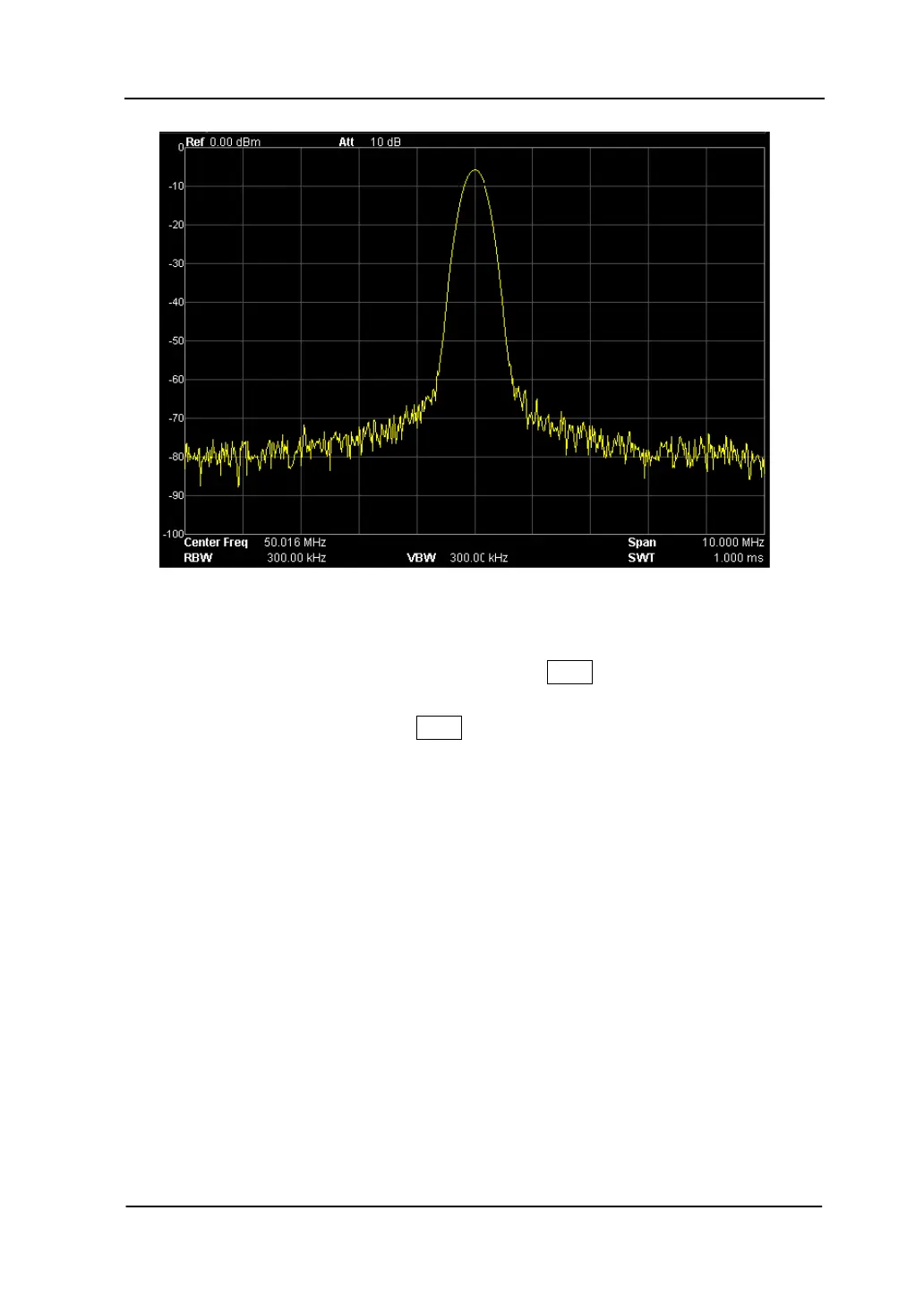

Figure 2-29 After Auto Search
Key Points:
 In the process of auto search, the backlight of Auto turns on and “Auto Tune”
is shown in the status bar on the screen until the search is finished.
 During the auto search, press Auto to stop the search.
 Some parameters such as the reference level, scale, input attenuation and
maximum mixing level may be changed during the auto search.
