Rigol DSA800 Series User Manual

RIGOL Chapter 1 Quick Start
User’s Guide for DSA800/E Series
1-8
Front Panel Function Keys

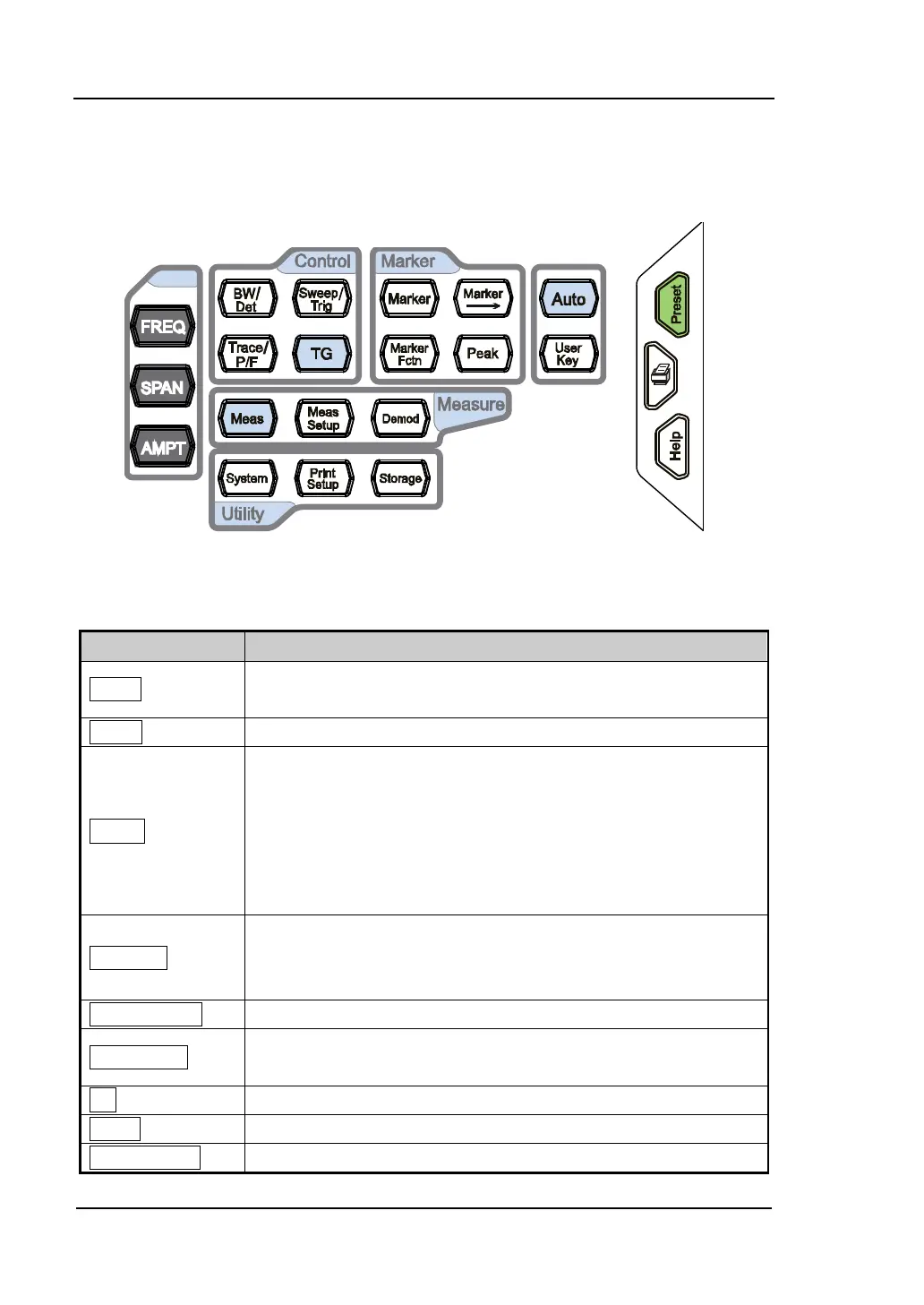

Figure 1-6 Function Key Area
Table 1-2 Function keys description
Key Description
FREQ
Set the center, start and stop frequency, etc; enable the
signal tracking function.
SPAN Set the frequency span of the sweep.
AMPT
Set the reference level, RF attenuator, scale and the unit of
Y-axis, etc.
Set the reference level offset, maximum mixing level and
input impedence.
Execute auto scale and auto range as well as turn on the RF
preamplifier.
BW/Det
Set the resolution bandwidth (RBW), video bandwidth (VBW)
and V/R ratio.
Set the detector and filter types.
Sweep/Trig Set the sweep and trigger parameters.
Trace/P/F
Set the parameters related to trace.
Configure the Pass/Fail test.
TG Set the tracking generator*.
Meas Select and control the measurement function**.
Meas Setup Set the parameters for the selected measurement function**.
