Rigol DSA800 Series User Manual

RIGOL Chapter 2 Front Panel Operation
User’s Guide for DSA800/E Series
2-112
I/O Settings
This analyzer supports communications through LAN, USB and GPIB interfaces.
Both LAN and USB are standard interfaces, and GPIB should be configured by
using a USB-GPIB interface converter (option) provided by RIGOL.
1. Remote I/O
Selete LAN, USB or GPIB, or disable all the three interfaces.
2. LAN
Set or reset the LAN parameters.

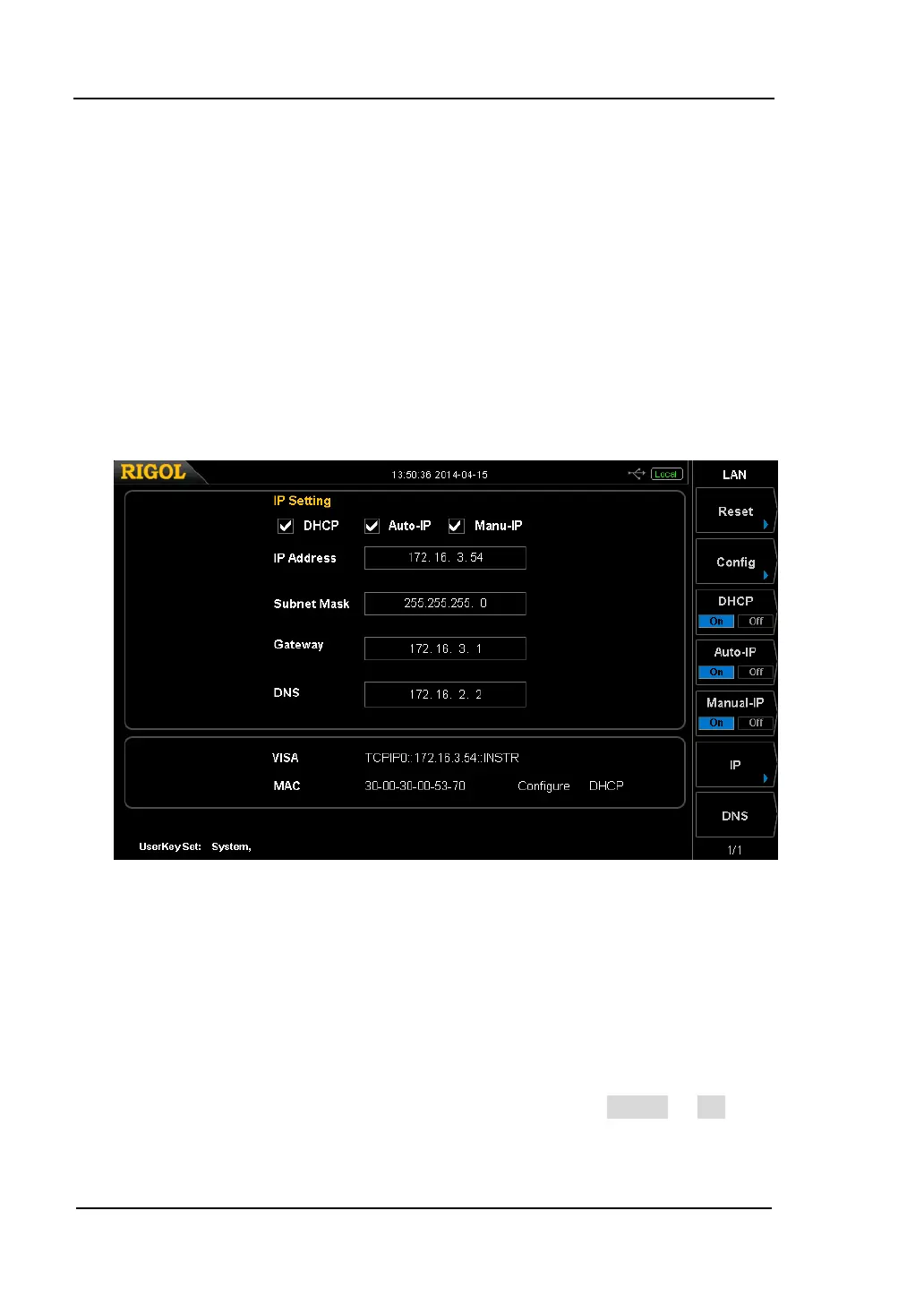

Figure 2-30 LAN parameter setting
The following items can be set through the front panel or remote interface.
 Reset:
Turn on DHCP and Auto-IP, turn Manual-IP off. Clear the network
password set to restore it to factory setting.
 Config:
After the LAN interface configuration is finished, press Config  OK to
apply the configuration.
