Chapter 3 Programming Demos
RIGOL
MSO1000Z/DS1000Z Programming
Guide
3-
11
Get the length of the effective waveform data.
7.
Convert the character data into array format using the
String To Byte Array
, na
mely display the
wav
eform data on t
he
Waveform Graph
control and t
hen remove the TMC data header using t
he
Array Subset
function.
8.

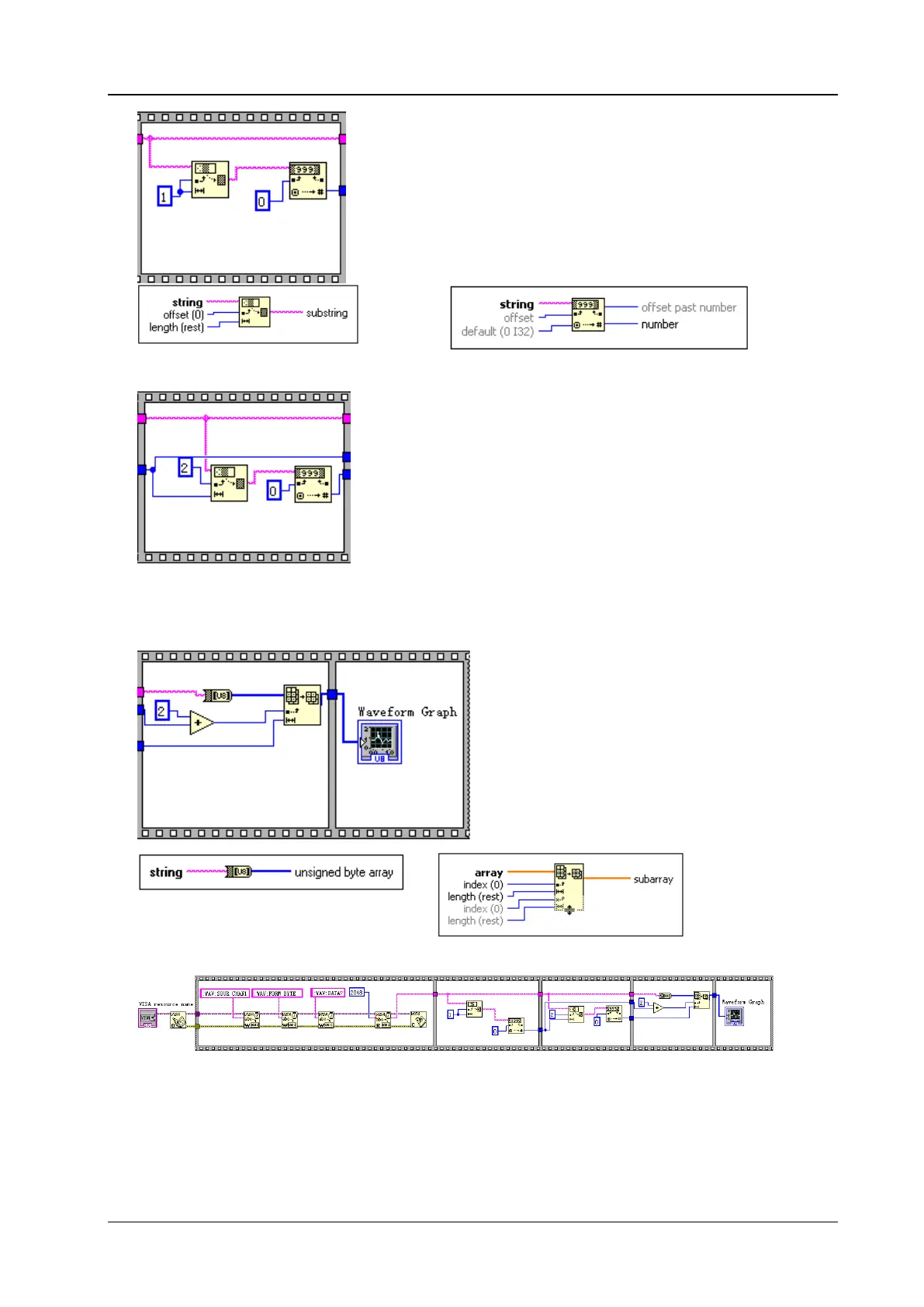

The complete program block diagram is as shown i
n the f
igure below
.
252
254
