Rigol MSO5000 Series User Manual

RIGOL
16 MSO5000 Quick Guide
English

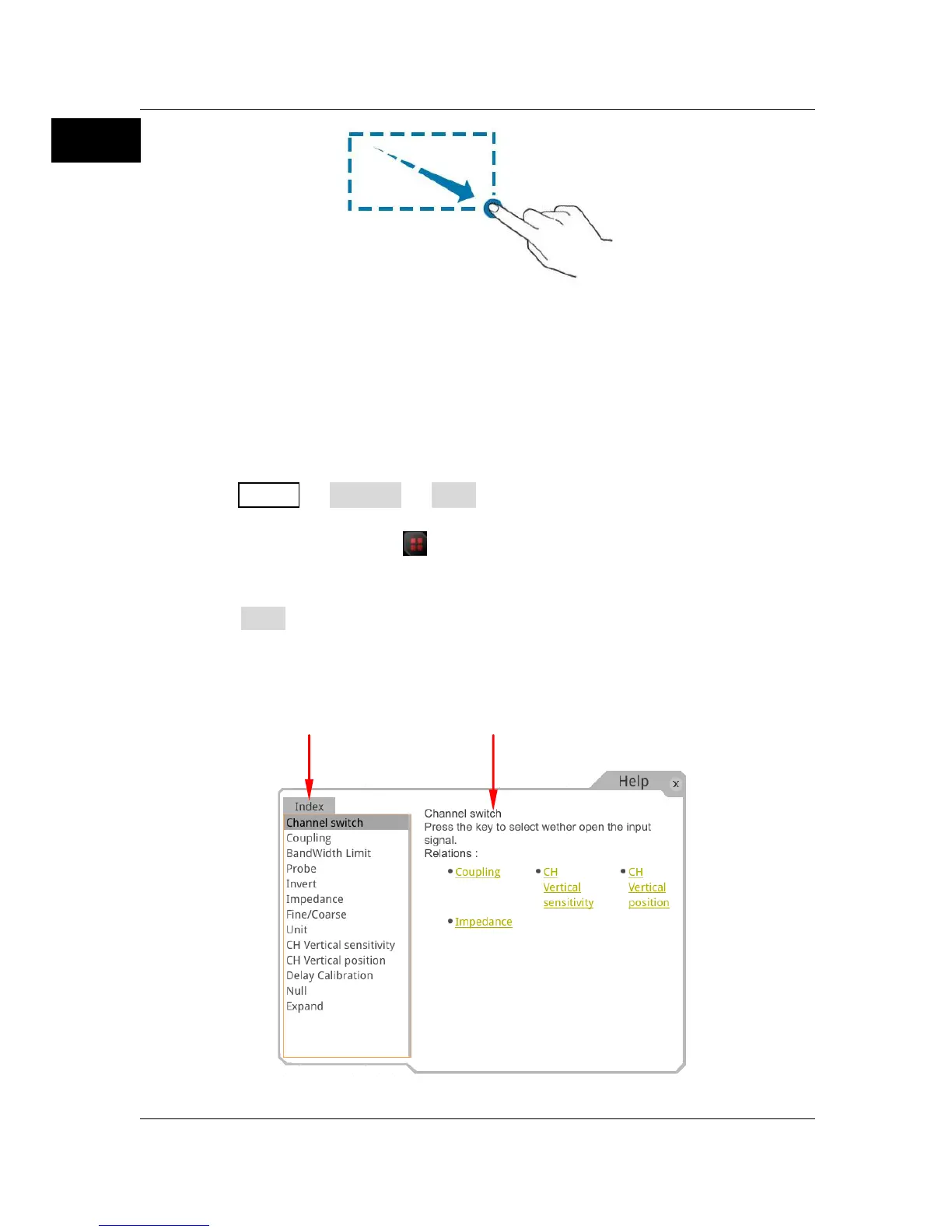

Figure 13 Rectangle Drawing Gesture
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function
keys on the front panel and their corresponding menu keys. The steps for
opening the built-in help system are as follows:
1. Press Utility  System  Help, and then the "Help" menu is displayed
on the screen. You can also use the touch screen function, tap the
function navigation icon at the lower-left corner of the touch screen
to enable the function navigation. Tap the "Help" icon, and then the "Help"
menu is displayed on the screen.
2. Press Help or tap the "Help" option, and then the help information is
displayed on the screen, as shown in Figure 14. The help interface mainly
consists of two sections. The left section lists "Help Options", and the
right section is the "Help Display Area".
Figure 14 Help Information
Help Options Help Display Area

Rigol MSO5000 Series Specifications

General

Sample Rate	Up to 8 GSa/s
Memory Depth	Up to 200 Mpts
Bandwidth	100 MHz, 200 MHz, 350 MHz
Channels	4 analog channels
Display	9 inch capacitive multi-touch screen
Waveform Capture Rate	Up to 500, 000 wfms/s
Vertical Resolution	8-bit
Connectivity	USB Host, USB Device, LAN, HDMI
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, TimeOut, Runt, Window, Delay, Setup/Hold, Nth Edge
Operating System	Linux
Weight	4.6 kg
