6． -Width: indicates the time between the threshold middle value of a falling edge
to the threshold middle value of the next rising edge.
7． +Duty: indicates the ratio of the positive pulse width to the period.
8． -Duty:indicates the ratio of the negative pulse width to the period.
9． Tvmax: indicates the time that corresponds to the maximum value of the
waveform (Vmax).
10. Tvmin: indicates the time that corresponds to the minimum value of the
waveform (Vmin).
Note: The default values for threshold upper limit, threshold middle value, and
threshold low limit are 90%, 50%, and 10%, respectively. You can press Measure
 Setting to enter the sub-menu to set the parameters.
Count Values
1． Positive Pulse Count: The number of positive pulses that rise from under the
threshold lower limit to above the threshold upper limit.
2． Negative Pulse Count: The number of negative pulses that fall from above
the threshold upper limit to below the threshold lower limit.
3． Rising Edge Count: The number of rising edges that rise from under the
threshold lower limit to above the threshold upper limit.

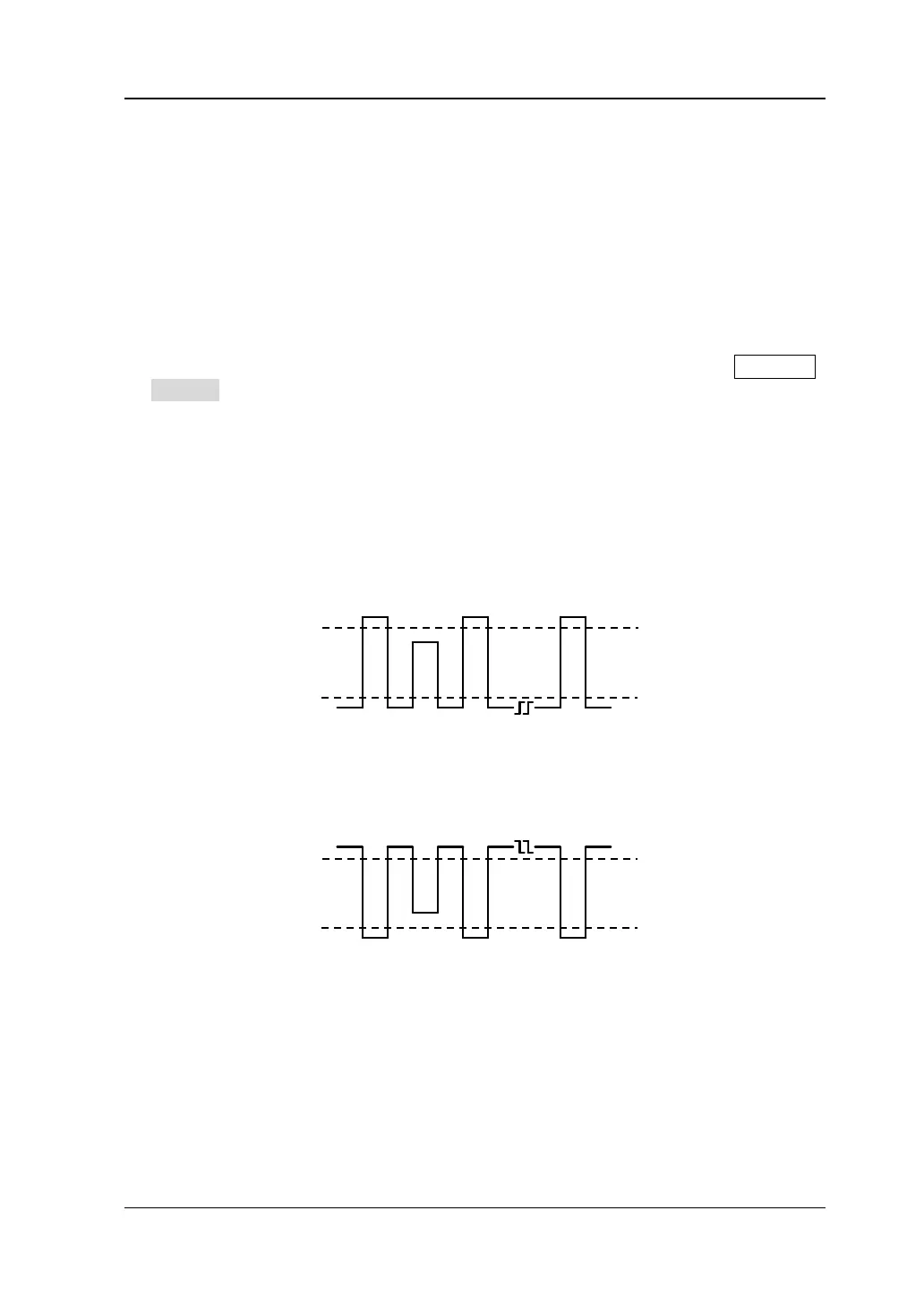

Positive Pulse Count = n
1 2 n
Negative Pulse Count = n
1 2 n
Threshold Upper Limit
Threshold Lower Limit
Threshold Upper Limit
Threshold Lower Limit

Rigol MSO7000 Series Specifications

General

Memory Depth	Up to 500 Mpts
Operating Temperature	0 °C to +50 °C
Channels	4 analog + 16 digital
Display	10.1 inch capacitive touchscreen
Waveform Capture Rate	Up to 600, 000 wfms/s
Vertical Resolution	8 bits
Maximum Input Voltage	400 V (DC + AC peak)
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Window, Runt, Setup/Hold, Delay, Nth Edge
Protocol Decoding	RS232/UART, I2C, SPI, CAN, LIN, FlexRay, I2S, MIL-STD-1553, ARINC429
Interfaces	USB, LAN, HDMI
