Rigol MSO7000 Series User Manual

RIGOL Chapter 17 Function/Arbitrary Waveform Generator (MSO7000 Option)
17-8 MSO7000/DS7000 User Guide
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Gauss waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".

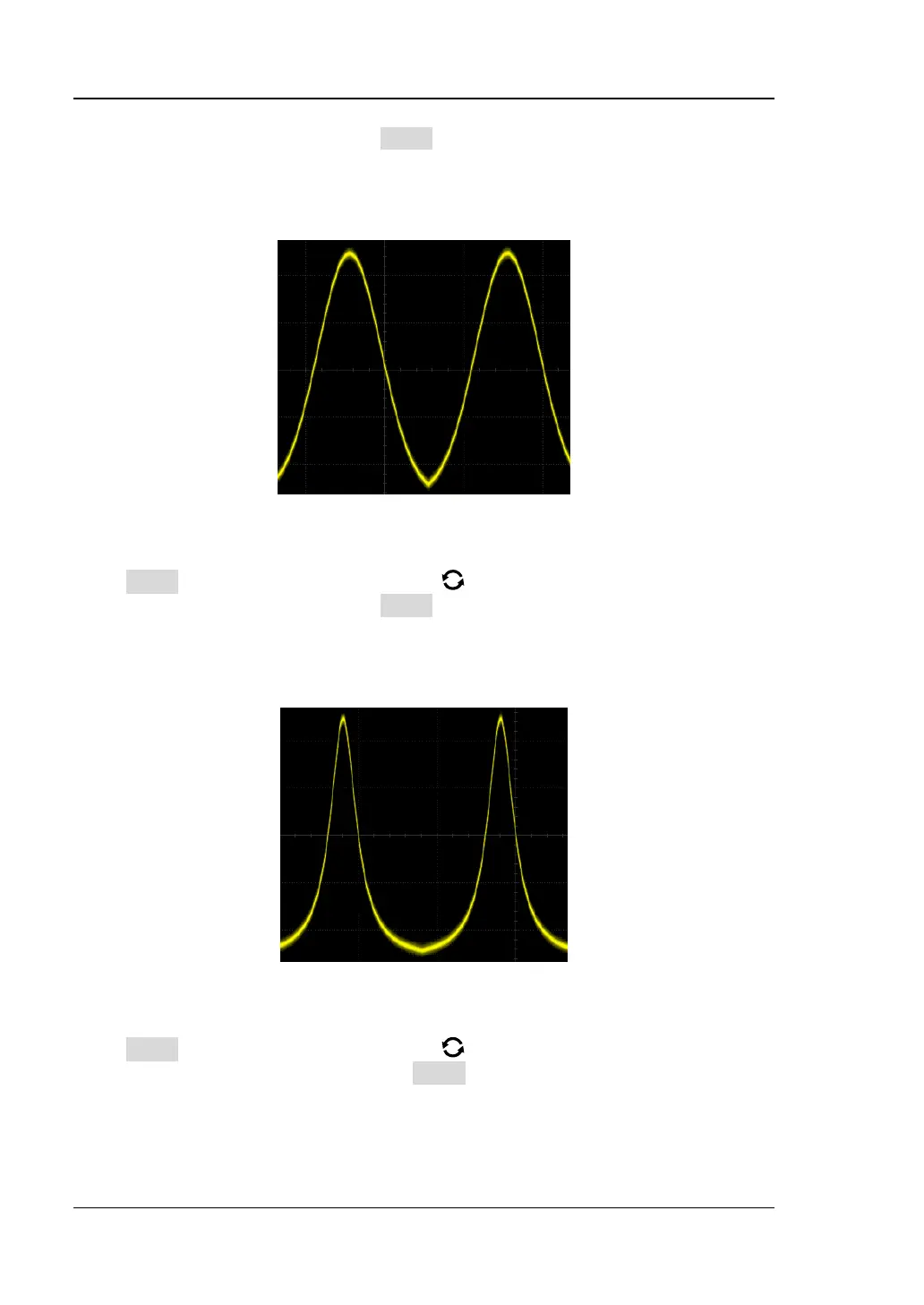

Figure 17-7 Gauss
Lorentz
Press Wave, rotate the multifunction knob to select "Lorentz". Press down the
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Lorentz waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".
Figure 17-8 Lorentz
Haversine
Press Wave, rotate the multifunction knob to select "Haversine". Press down
the knob to select it. You can also press Wave continuously or enable the touch
screen to select it. At this time, you can set the parameters for the Haversine
waveform (as shown in the figure below). For setting methods, refer to descriptions
in "To Output Sine".

Rigol MSO7000 Series Specifications

General

Memory Depth	Up to 500 Mpts
Operating Temperature	0 °C to +50 °C
Channels	4 analog + 16 digital
Display	10.1 inch capacitive touchscreen
Waveform Capture Rate	Up to 600, 000 wfms/s
Vertical Resolution	8 bits
Maximum Input Voltage	400 V (DC + AC peak)
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Window, Runt, Setup/Hold, Delay, Nth Edge
Protocol Decoding	RS232/UART, I2C, SPI, CAN, LIN, FlexRay, I2S, MIL-STD-1553, ARINC429
Interfaces	USB, LAN, HDMI
