is an odd number. For example, when 0x55 (01010101) is sent, "1"
should be added to the check bit.
 Stop Bit
Press Stop Bit and rotate the multifunction knob to set the stop bits
after each frame of data. Press down the knob to select it. You can also
press Stop Bit continuously or enable the touch screen to select it. It can
be set to 1 bit, 1.5 bits, or 2 bits.

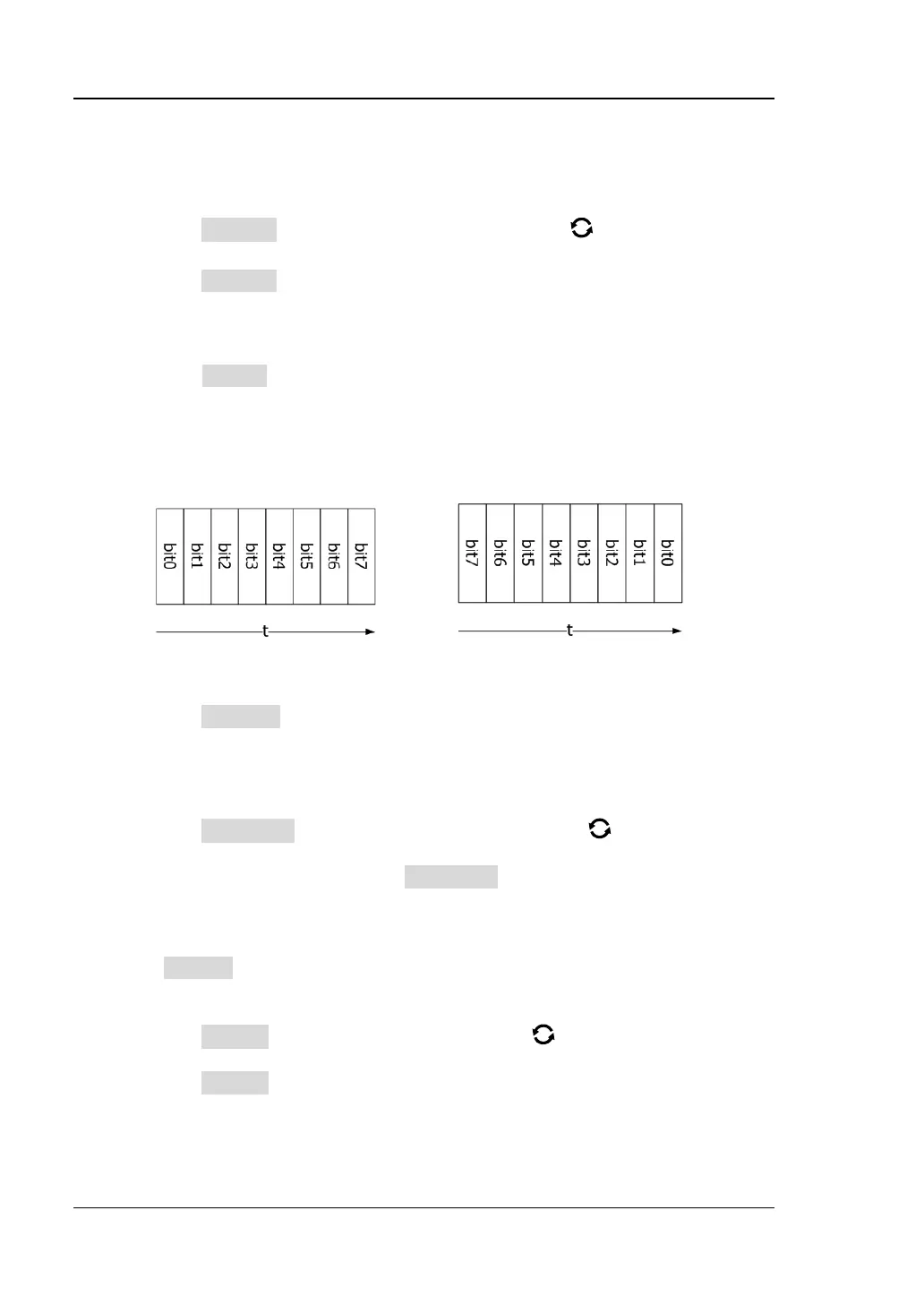

 Endian
Press Endian to select "LSB" or "MSB". By default, it is "LSB".
LSB: indicates Least Significant Bit transmission sequence, i.g. the lowest
bit of the data is transmitted first.
MSB: indicates Most Significant Bit transmission sequence, i.g. the highest
bit of the data is transmitted first.
LSB MSB
 Package
Press Package to enable or disable the package display in data
transmission. When enabled, several data blocks will be combined based on
the separator.
 Separator
Press Separator and rotate the multifunction knob to select the
desired package separator in data transmission, then press down the knob
to select it. You can also press Separator continuously or enable the touch
screen to select it. It can be set to 0A(LF), 0D(CR), 20(SP), or 0(NUL).
6． Display-related setting
Press Display to enter the display setting menu.
 Set the display format
Press Format, rotate the multifunction knob to select the display
format of the bus data. Then, press down the knob to select it. You can also
press Format continuously or enable the touch screen to select it. The
available display formats of the bus data are "Hex", "Dec", "Bin", and
"ASCII".
