Rigol MSO7000 Series User Manual

RIGOL Chapter 19 System Utility Function Setting
19-18 MSO7000/DS7000 User Guide
for three consecutive times to exit the keyboard test interface.
2. Screen Test
Press Screen Test to enter the screen test interface and check whether the
defective pixel exists. There are 24 screen test interfaces. Press SINGLE to
switch to the next screen test interface. Press RUN/STOP for three consecutive
times to exit the screen test interface.

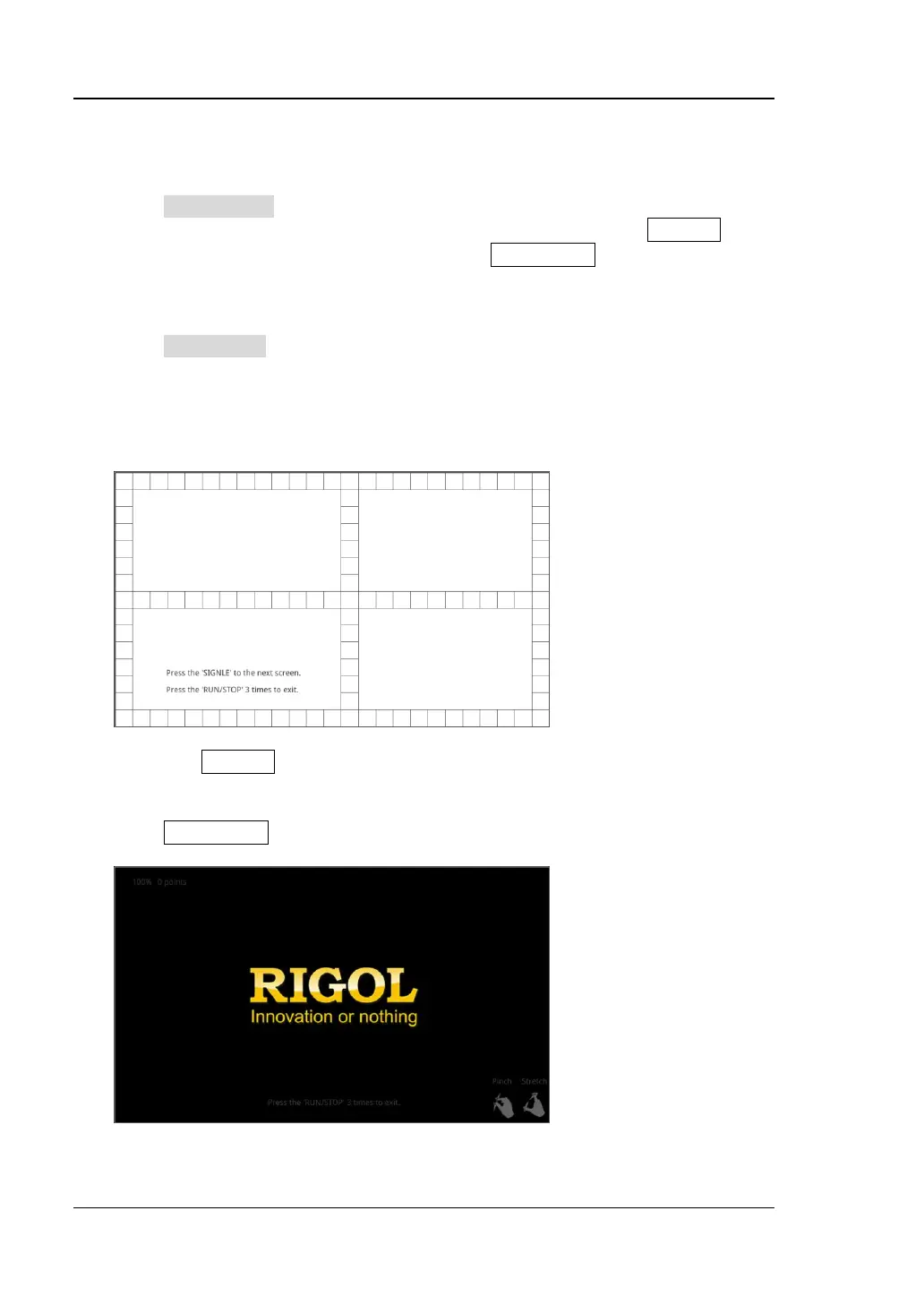

3. Touch Test
Press Touch Test to enter the touch screen test interface first, as shown in the
figure below. Slide with your finger on the screen. If there is a line displaying at
the empty area where you slide on the screen and the box that you tap turns out
to be filled with green background, it indicates that the touch function of this
area is normal.
The press SINGLE to switch to the next touch screen test interface, as shown
in the figure below. At this time, you can pinch or stretch the RIGOL logo on
the screen to zoom it out or in to check whether the gestures work normally.
Press RUN/STOP for three consecutive times to exit the touch screen test
interface.

Rigol MSO7000 Series Specifications

General

Memory Depth	Up to 500 Mpts
Operating Temperature	0 °C to +50 °C
Channels	4 analog + 16 digital
Display	10.1 inch capacitive touchscreen
Waveform Capture Rate	Up to 600, 000 wfms/s
Vertical Resolution	8 bits
Maximum Input Voltage	400 V (DC + AC peak)
Trigger Types	Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Window, Runt, Setup/Hold, Delay, Nth Edge
Protocol Decoding	RS232/UART, I2C, SPI, CAN, LIN, FlexRay, I2S, MIL-STD-1553, ARINC429
Interfaces	USB, LAN, HDMI
