RIGOL Chapter 6 Operations and Measurements
6-50 MSO8000 User Guide
between Cursor A and Cursor B (X cursors) remains unchanged.
2) When "Y" is selected under Track, you can adjust the position of Y cursor.
âš« Press AY, then rotate the multifunction knob to adjust the vertical
position of Cursor A (Y cursor).
âš« Press BY, then rotate the multifunction knob to adjust the vertical
position of Cursor B (Y cursor).
âš« Press AY BY, then rotate the multifunction knob to adjust the
vertical position of Cursor A and Cursor B (Y cursors) simultaneously.
The vertical spacing between Cursor A and Cursor B (Y cursors)
remains unchanged.
Note:
âš« If one of the three items (AX, BX, and AX BX) or one of the three items
(AY, BY, and AY BY) is selected, you can press down the multifunction
knob continuously to switch among the three items.
âš« In track mode, the horizontal cursor (or vertical cursor) will track the
marked point in a timely manner (i.g, the cursor will move up and down
with the transient change of the waveform). Thus, the X value (or Y value)
might change even though you do not adjust the cursor.
4. Measurement Example
Measure the waveforms of CH1 and CH2 with Cursor A and Cursor B,
respectively. Then, expand the waveforms horizontally, and you will find that the
cursor will track the point that has been marked, as shown in the following
figure.

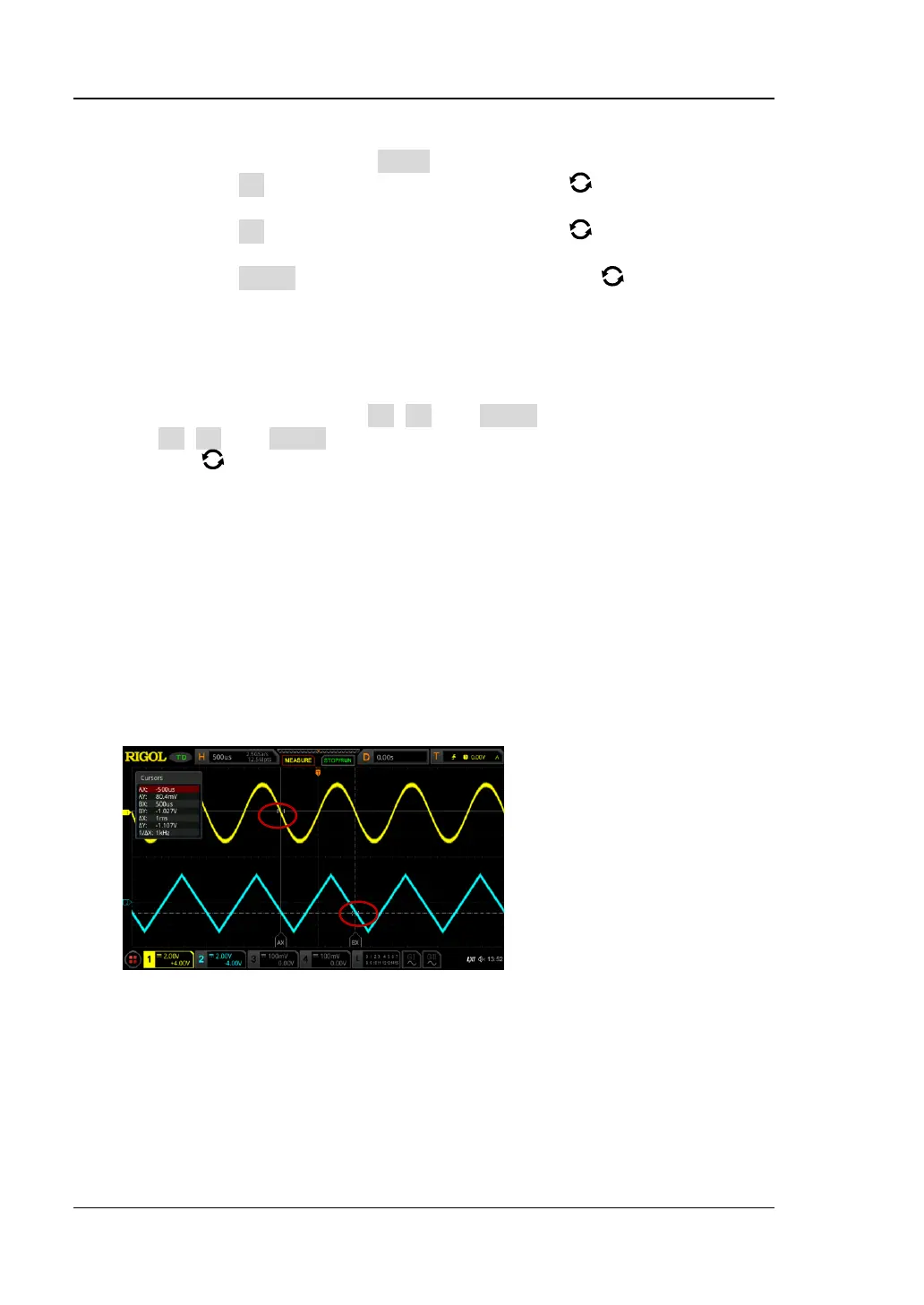

Track Measurement (before Horizontal Expansion):
Track Measurement (after Horizontal Expansion):
